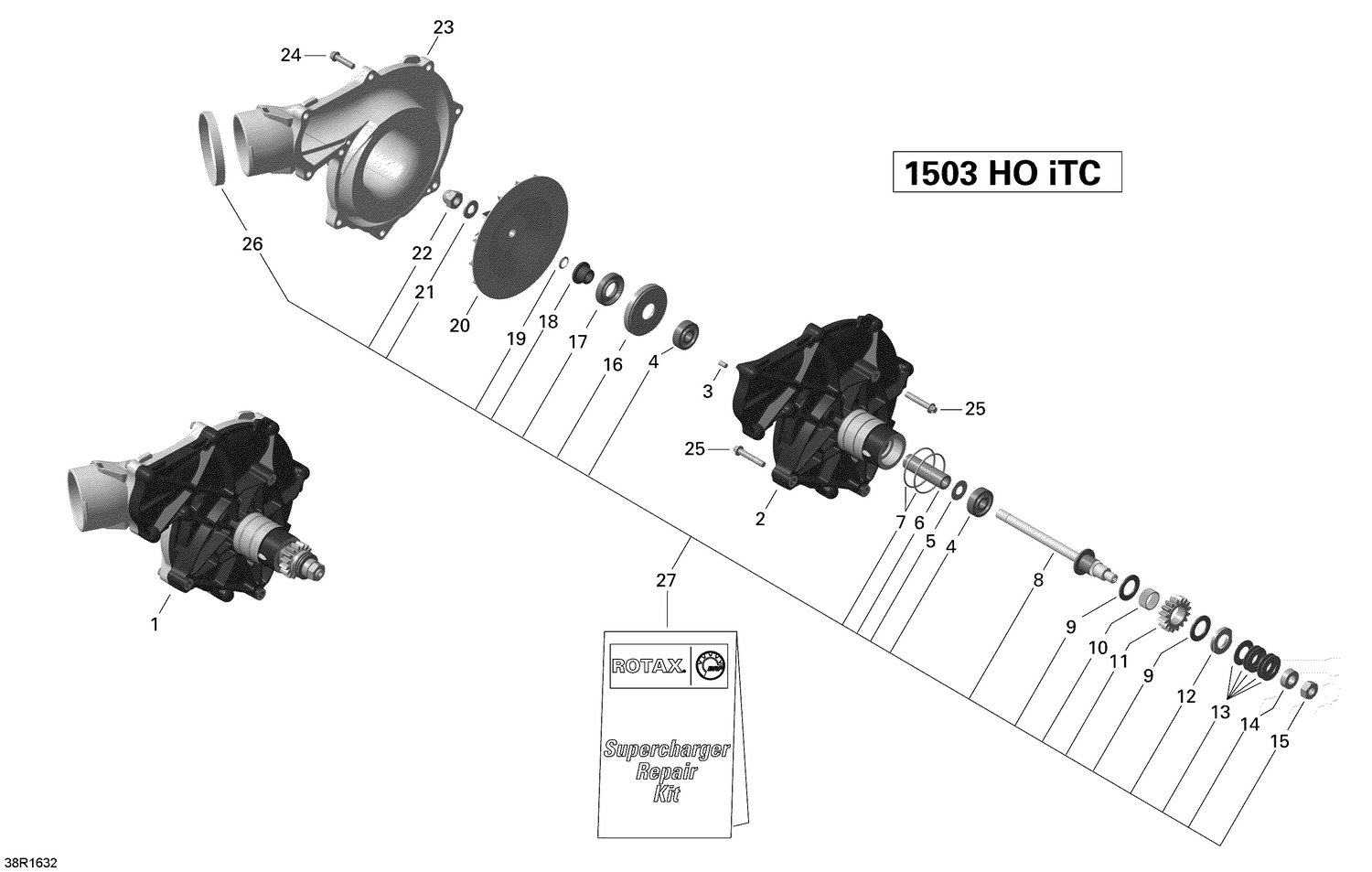

| Ref | Part Number | Description |
|---|
| 2 |
420867180 |
Compressor Base Plate |
| 3 |
420929650 |
Drive Pin 5 X 10 |
| 4 |
420832713 |
Bearing Ball This part replaces 420832710. |
| 5 |
420227685 |
THRUST WASHER - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Spacer |
| 7 |
420650270 |
O-Ring |
| 8 |
Not |
Available As Spare Part - Compressor Shaft |
| 9 |
Not |
Available As Spare Part - Friction Washer |
| 10 |
420632435 |
Needle Pin |
| 11 |
Not |
Available As Spare Part - Drive Gear |
| 12 |
Not |
Available As Spare Part - Lock Washer |
| 13 |
Not |
Available As Spare Part - Spring Washer |
| 14 |
Not |
Available As Spare Part - Angular Ring |
| 15 |
420942950 |
HEX. NUT - Call your local BRP dealership |
| 16 |
Not |
Available As Spare Part - Thrust Washer |
| 17 |
420950940 |
Oil Seal |
| 18 |
Not |
Available As Spare Part - Step Collar |
| 19 |
420950950 |
O-Ring |
| 20 |
420867195 |
Compressor Impeller |
| 21 |
420627418 |
SHIM - Call your local BRP dealership |
| 22 |
420842833 |
CAP NUT - Call your local BRP dealership |
| 23 |
420867157 |
Compressor Housing |
| 24 |
420641238 |
Torx Flange Screw M6 X 25 |
| 25 |
420641258 |
Torx Flange Screw M6 X 35 |
| 26 |
420851703 |
Gear Clamp |
