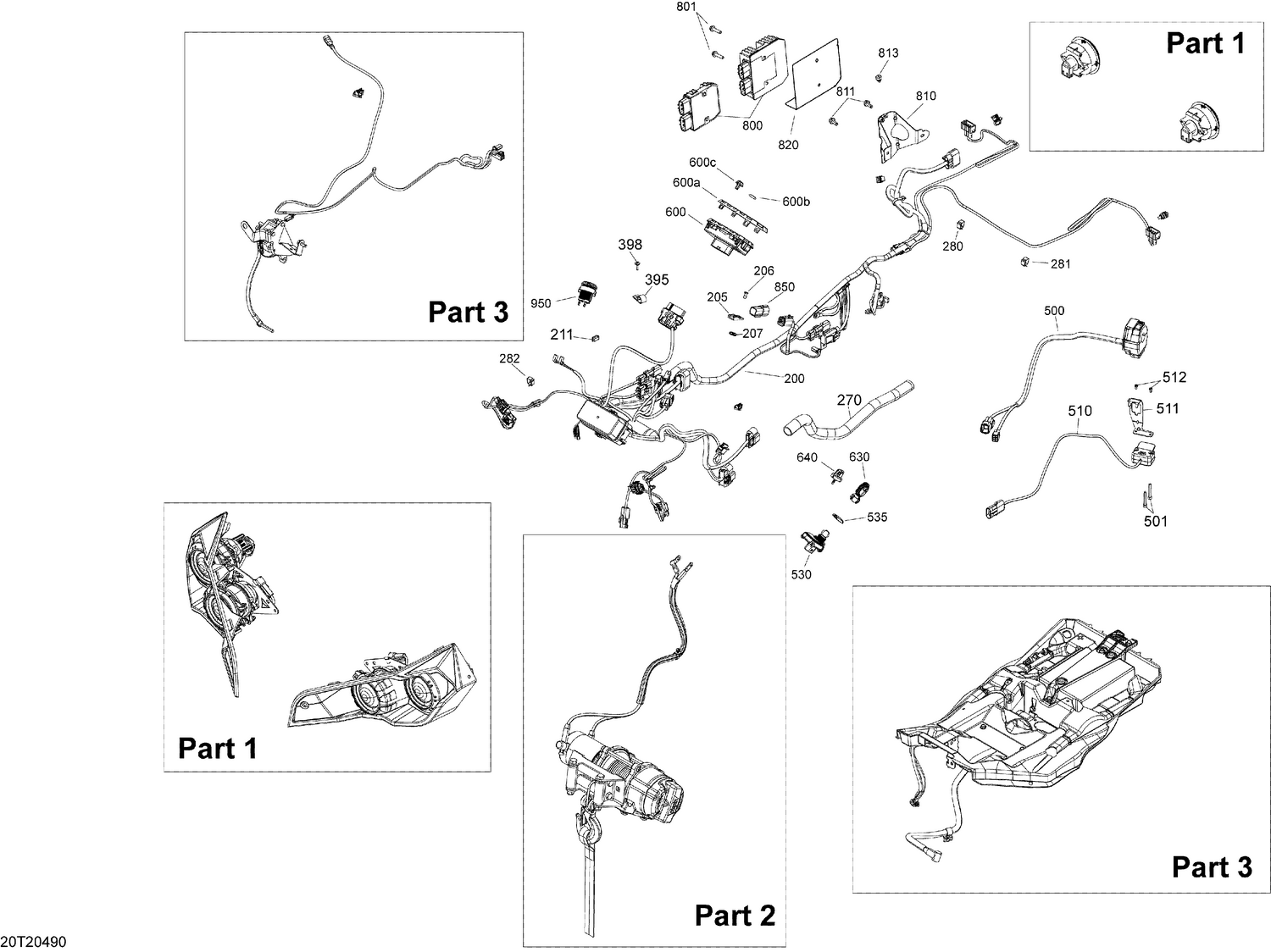

10- Electrical System - Main Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 710006239 | Harness |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 211 | 710000992 | Clip |
| 270 | 710003260 | Protective Tubing |
| 280 | 414227300 | Clip |
| 281 | 414227300 | Clip |
| 282 | 414227300 | Clip |
| 395 | 518321570 | Open Clamp |
| 398 | 250000720 | Torx Screw K50 X 16 |
| 500 | 710006134 | Switch Handle |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 510 | 710005241 | Winch Switch |
| 511 | 710004670 | Black Support |
| 512 | 250000153 | Hex. Cap Screw 6-32 X 1/4" |
| 530 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 535 | 278002963 | Safety Nut (DESS Switch) |
| 600 | 710006216 | Speedometer |
| 600b | 704904615 | BRP Logo13 mm |
| 600c | 715900265 | Button |
| 630 | 710005232 | Green Key RFID |
| 640 | 710004964 | Grey Key RFID |
| 800 | 710005842 | Voltage Regulator |
| 801 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 810 | 710002587 | Rectifier Support |
| 811 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 813 | 293830005 | Rubber Bumper |
| 820 | 710006746 | Deflector |
| 850 | 710003006 | Housing |
