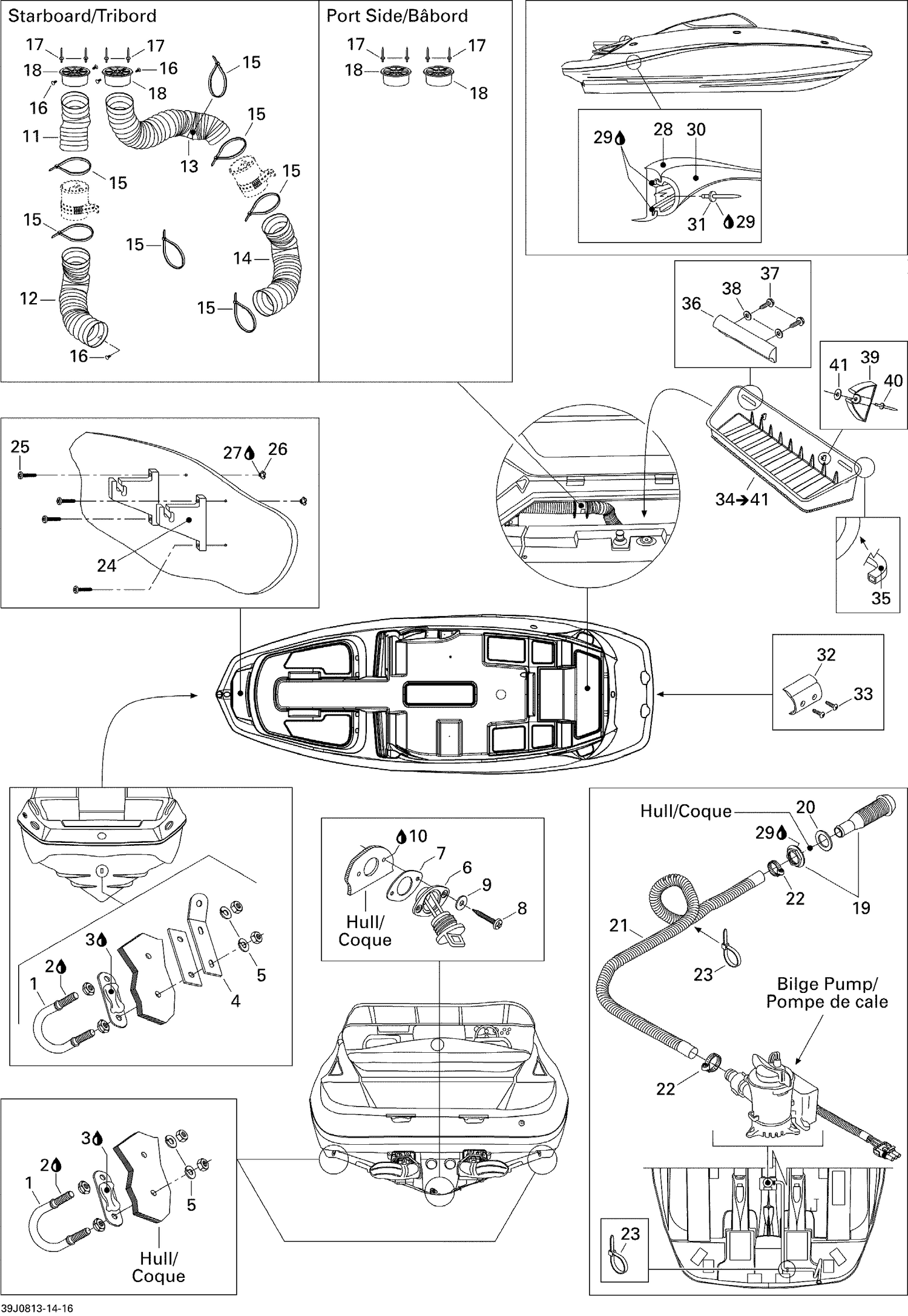

| Ref | Part Number | Description |
|---|
| 1 |
204050336 |
BOW EYE KIT 1/2? - Call your local BRP dealership This part replaces 204050748. |
| 2 |
293800005 |
Loctite 271, 10 ml |
| 3 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 4 |
204050722 |
BRACKET-TIE DOWN - Call your local BRP dealership |
| 5 |
204100048 |
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership |
| 6 |
292000187 |
Drain Plug |
| 7 |
293250030 |
GASKET - Call your local BRP dealership |
| 8 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 9 |
234041600 |
Flat Washer 4 mm, Stainless |
| 10 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 11 |
219704358 |
Was 204050122 Vent Hose 4" |
| 12 |
219704358 |
Was 204050122 Vent Hose 4" |
| 13 |
219704358 |
Was 204050122 Vent Hose 4" |
| 14 |
219704358 |
Was 204050122 Vent Hose 4" |
| 15 |
293750047 |
Tie Rap, 533 mm |
| 16 |
293730006 |
Black, Dart |
| 17 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 18 |
204050637 |
VENT GRILL 4 - Call your local BRP dealership |
| 19 |
293710162 |
Fitting This part replaces 293710015. |
| 20 |
293250006 |
GASKET - Call your local BRP dealership |
| 21 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 22 |
293650016 |
Tridon Clamp |
| 23 |
414115200 |
Tie-Rap 180 mm |
| 24 |
204050723 |
ANCHOR BRACKET - Call your local BRP dealership |
| 25 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 26 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
204050713 |
BUMPER, BLACK - Call your local BRP dealership |
| 29 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 30 |
204050714 |
BUMPER TRIM, BLACK - Call your local BRP dealership |
| 31 |
293150013 |
Pop Rivet 3/16" |
| 32 |
204050031 |
BUMPER COVER, BLACK - Call your local BRP dealership |
| 33 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 35 |
219704368 |
Seal Tray 1000Mm Long |
| 36 |
291000608 |
HANDLE, WHITE - Call your local BRP dealership |
| 37 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 38 |
234042600 |
Flat Washer 4 mm, Stainless |
| 39 |
291000642 |
Pole Support |
| 40 |
293150005 |
Pop Rivet 3/16" |
