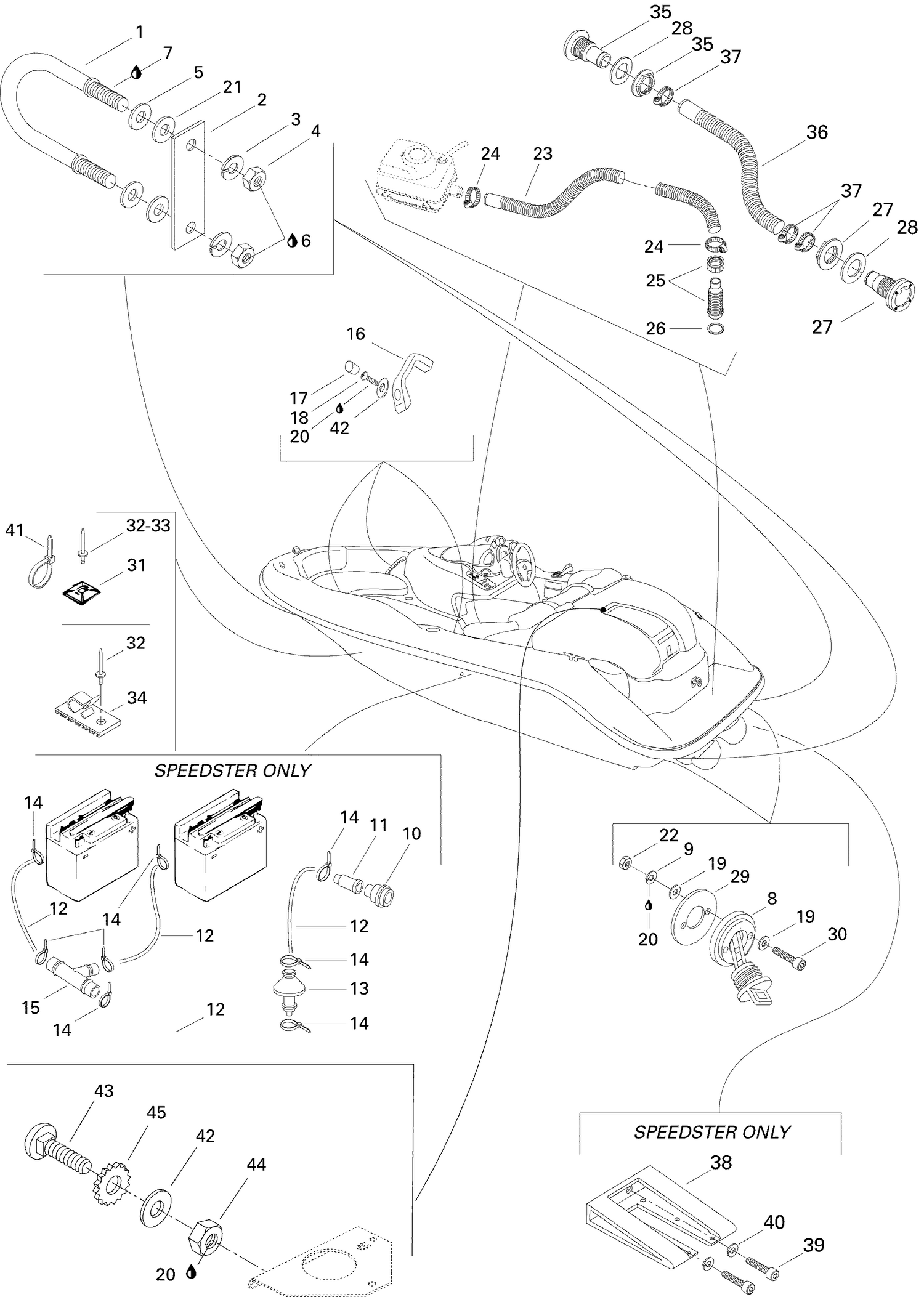

| Ref | Part Number | Description |
|---|
| 1 |
292000063 |
U-CLAMP - Call your local BRP dealership |
| 2 |
291000307 |
RETAINING PLATE - Call your local BRP dealership |
| 3 |
234181601 |
Lock Washer 8 mm, Stainless This part replaces 213000001. |
| 4 |
232081600 |
Hex. Nut M8 This part replaces 212100001. |
| 5 |
293050001 |
Flat Washer M8.5 x 18 |
| 6 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 7 |
293800005 |
Loctite 271, 10 ml |
| 8 |
292000187 |
Drain Plug |
| 9 |
234141601 |
Lock Washer 4 mm This part replaces 217341500. |
| 10 |
709200285 |
Grommet This part replaces 570135100. |
| 11 |
293710036 |
Straight Fitting |
| 12 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 13 |
275500499 |
CHECK VALVE - Call your local BRP dealership This part replaces 275500167. |
| 14 |
293750001 |
Tie Wrap 94 mm |
| 17 |
293000006 |
Snap Cap (Grape) |
| 18 |
208662560 |
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 19 |
234040600 |
Flat Washer 4 mm This part replaces 213200010. |
| 20 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 21 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 22 |
211100025 |
Nut M4 |
| 23 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership This part replaces 291000620. |
| 24 |
293650016 |
Tridon Clamp |
| 25 |
293710162 |
Fitting This part replaces 293710015. |
| 26 |
293250006 |
GASKET - Call your local BRP dealership |
| 27 |
204060027 |
Scupper Valve |
| 28 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 29 |
293250030 |
GASKET - Call your local BRP dealership |
| 30 |
215943060 |
Allen Screw M4 x 30 |
| 31 |
293750015 |
TIE RAP MOUNT - Call your local BRP dealership |
| 32 |
293150016 |
Rivet 1/8" |
| 33 |
293150026 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 34 |
293750006 |
Cable Clip |
| 34 |
293750011 |
Clip Cable |
| 35 |
293710060 |
FITTING - Call your local BRP dealership |
| 36 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership This part replaces 291000738. |
| 37 |
293650045 |
Tridon Gear Clamp |
| 38 |
292000330 |
Speed Sensor Support |
| 39 |
205063060 |
Socket Head Screw M6 X 30 This part replaces 210100001. |
| 40 |
234161601 |
Lock Washer Helical M6 This part replaces 217361500. |
| 41 |
293750001 |
Tie Wrap 94 mm |
| 41 |
293750002 |
Tie Wrap 142 mm |
| 41 |
293750008 |
Tie Wrap 368 mm |
| 41 |
414115200 |
Tie-Rap 180 mm This part replaces 294000606. |
| 42 |
234081600 |
Stainless, Flat Washer 8 mm |
| 43 |
204000130 |
Elevator Bolt |
| 44 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
