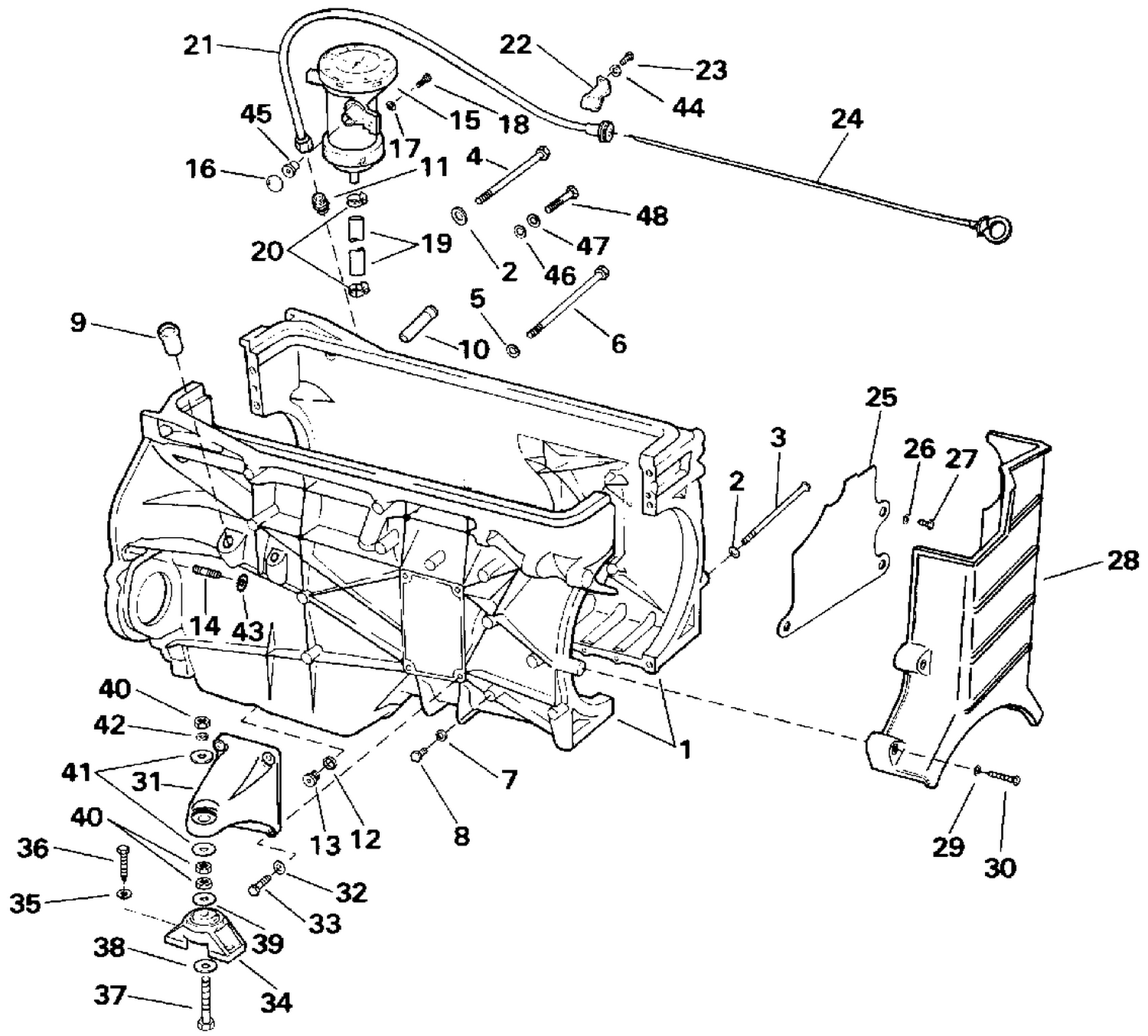

ENGINE HOUSING, FRONT MOUNTS

ENGINE HOUSING, FRONT MOUNTS

Parts (45)

RefPart NumberDescription
1 0987378 ENGINE HOUSING ASSY.
2 0915498 WASHER, Filter base mounting
3 0915476 BOLT, Housing, front, large
4 0915477 BOLT, Housing, rear, large
5 0915501 WASHER, Block
6 0915478 BOLT, Housing, small
7 0915399 WASHER, Bolt, water pump
8 0915479 BOLT, Housing
9 0915480 PIPE, Turbocharger oil return
10 0915481 PIPE, Demister oil return
11 0915482 UNION, Dipstick connection
12 0915483 SEAL, Oil drain
13 0915484 PLUG, Oil drain
14 0915485 STUD, Ground connection
15 0987379 OIL DEMISTER CANISTER
16 0915486 SEAL, Oil demister canister
17 0916024 WASHER, Heat shield, intercooler
18 0915472 BOLT, Cover, timing belt
19 0915487 HOSE, Demister drain
20 0915488 CLAMP, Hose, boost pressure sender
21 0915489 PIPE, Oil dip stick
22 0915490 CLAMP, Oil dipstick pipe
23 0915451 BOLT, Clamp, pipe to heat exchanger
24 0987380 OIL DIPSTICK
25 0915492 COVER, Timing belt, rear
26 0915470 WASHER, Clamp to heatshield
27 0915633 BOLT, Cover, timing belt, rear
28 0915495 COVER, Timing belt, lower
29 0915470 WASHER, Clamp to heatshield
30 0915496 BOLT, Cover, timing belt
31 0915497 MOUNT BRACKET, Front
32 0915498 WASHER, Filter base mounting
33 0915499 BOLT, Mount bracket, front
34 3853805 FRONT MOUNT This part replaces 0983903.
35 3852078 WASHER, Lag screw This part replaces 0308091.
36 3852475 LAG SCREW This part replaces 0909716.
37 3852566 BOLT, Engine mount This part replaces 0911857.
38 3852428 WASHER, Lower This part replaces 0907857.
39 3852433 WASHER This part replaces 0908114.
40 3852021 LOCKNUT This part replaces 0130084.
41 0910924 WASHER, Bracket to mount
42 3852090 LOCK WASHER This part replaces 0310856.
44 0915470 WASHER, Clamp to heatshield
45 0916026 RING, Spacer, demister
46 0915506 WASHER, Clamp
