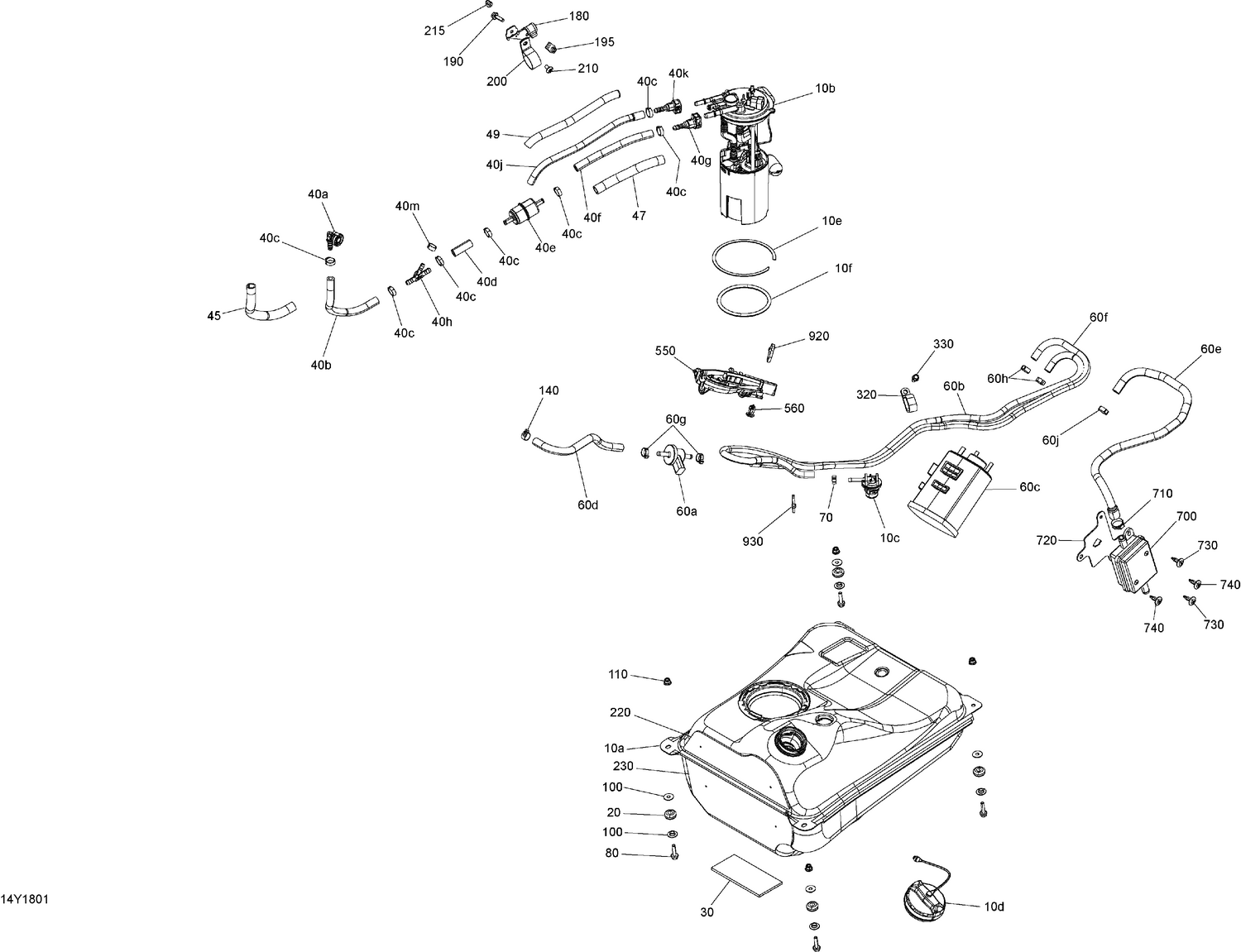

02- Fuel
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 709001447 | Fuel Tank This part replaces 219800299. |
| 10b | 709000370 | Fuel Pump Module |
| 10c | 709000413 | Rollover Valve |
| 10d | 709000683 | Gaz Cap |
| 10e | 219800248 | Seal Kit |
| 10f | 219800248 | Seal Kit |
| 20 | 709000582 | Grommet |
| 30 | 709000130 | Carpet |
| 40a | 293710105 | Elbow Fitting 90° |
| 40b | 709000264 | Fuel Line 7.9 mm, Meter |
| 40c | 293650125 | Oetiker Clamp |
| 40d | 709000265 | Fuel Line 7.9 mm, Meter |
| 40e | 513034047 | Fuel Filter This part replaces 709000100. |
| 40f | 709000264 | Fuel Line 7.9 mm, Meter |
| 40g | 709000684 | Female Quick Fitting Ass'y |
| 40h | 219800628 | Kit Y Fitting This part replaces 709000453. |
| 40j | 709000776 | Hose, 275MM |
| 40k | 293710192 | Quick Connect Pipe Fitting This part replaces 709000686. |
| 40m | 293650046 | Oetiker Clamp |
| 45 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 47 | 513033231 | Protector Tube, 16 mm |
| 49 | 219704400 | Was 409901800 Tubing (13 mm) |
| 60a | 709000443 | Bleed Valve |
| 60b | 709000656 | Hose, 880MM |
| 60c | 709000090 | Vapor Canister |
| 60d | 709000657 | Hose, 275MM |
| 60e | 709000523 | Formed Hose |
| 60f | 709001622 | Hose This part replaces 709000658. |
| 60g | 293650047 | Crimp Clamp, 15.3-706R |
| 60h | 293650025 | Oetiker Gear Clamp |
| 60j | 293650140 | Oetiker Clamp |
| 70 | 293650025 | Oetiker Gear Clamp |
| 80 | 207662544 | Hex. Flange Screw M6 X 25 |
| 100 | 709001287 | Bushing This part replaces 709000716. |
| 110 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 140 | 513033029 | Universal Spring Clamp |
| 180 | 709000452 | Fuel Filter Support |
| 190 | 207662044 | Hex. Flange Screw M6 X 20 |
| 195 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 200 | 513033047 | Open Clamp |
| 210 | 250000767 | Torx Truss Screw M6 X 12 |
| 215 | 232361493 | Domed Nut M6 |
| 220 | 709000157 | Reflective Sheet |
| 230 | 709000340 | Reflective Sheet |
| 320 | 709000057 | Open Clamp |
| 330 | 210261250 | Hex. Flange Screw M6 X 12 |
| 550 | 709000814 | Hose Support |
| 560 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 700 | 709000524 | Air Filter |
| 710 | 513033865 | Spring Clamp |
| 720 | 709000526 | Filter Support |
| 730 | 414745900 | Tuflock Phillips Plastic Screw |
| 740 | 414745900 | Tuflock Phillips Plastic Screw |
| 920 | 414115200 | Tie-Rap 180 mm |
