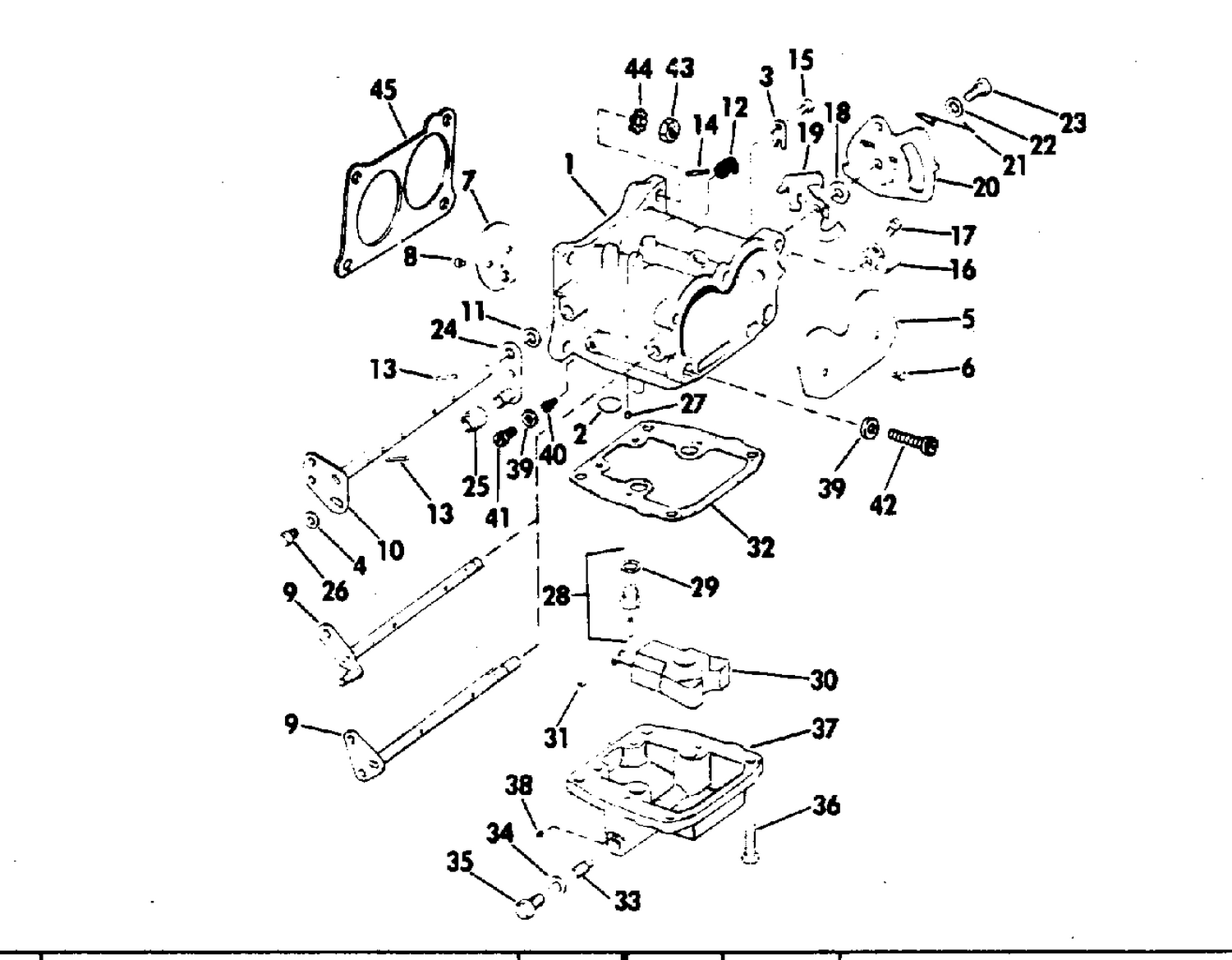

| Ref | Part Number | Description |
|---|
| 1 |
0385365 |
BODY ASSY., Upper |
| 1 |
0385366 |
BODY ASSY., Lower |
| 3 |
0314906 |
CLIP |
| 7 |
0317182 |
THROTTLE VALVE |
| 22 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 27 |
0318464 |
PLUG, Idle restriction |
| 30 |
0383437 |
FLOAT ASSEMBLY |
| 32 |
0338884 |
GASKET, Float bowl This part replaces 0314884. |
| 33 |
0317488 |
ORIFICE PLUG (72C) |
| 35 |
0307832 |
PLUG, Screw |
| 36 |
0307466 |
SCRES, Bowl to body |
| 37 |
0384913 |
FLOAT CHAMBER ASSY |
| 41 |
0317501 |
SCREW PLUG, Orifice |
| 43 |
0328742 |
NUT This part replaces 0306338. |
| 0385245 |
0385245 |
CARB ASSY., Upper |
| 0385246 |
0385246 |
CARB ASSY., Lower |
