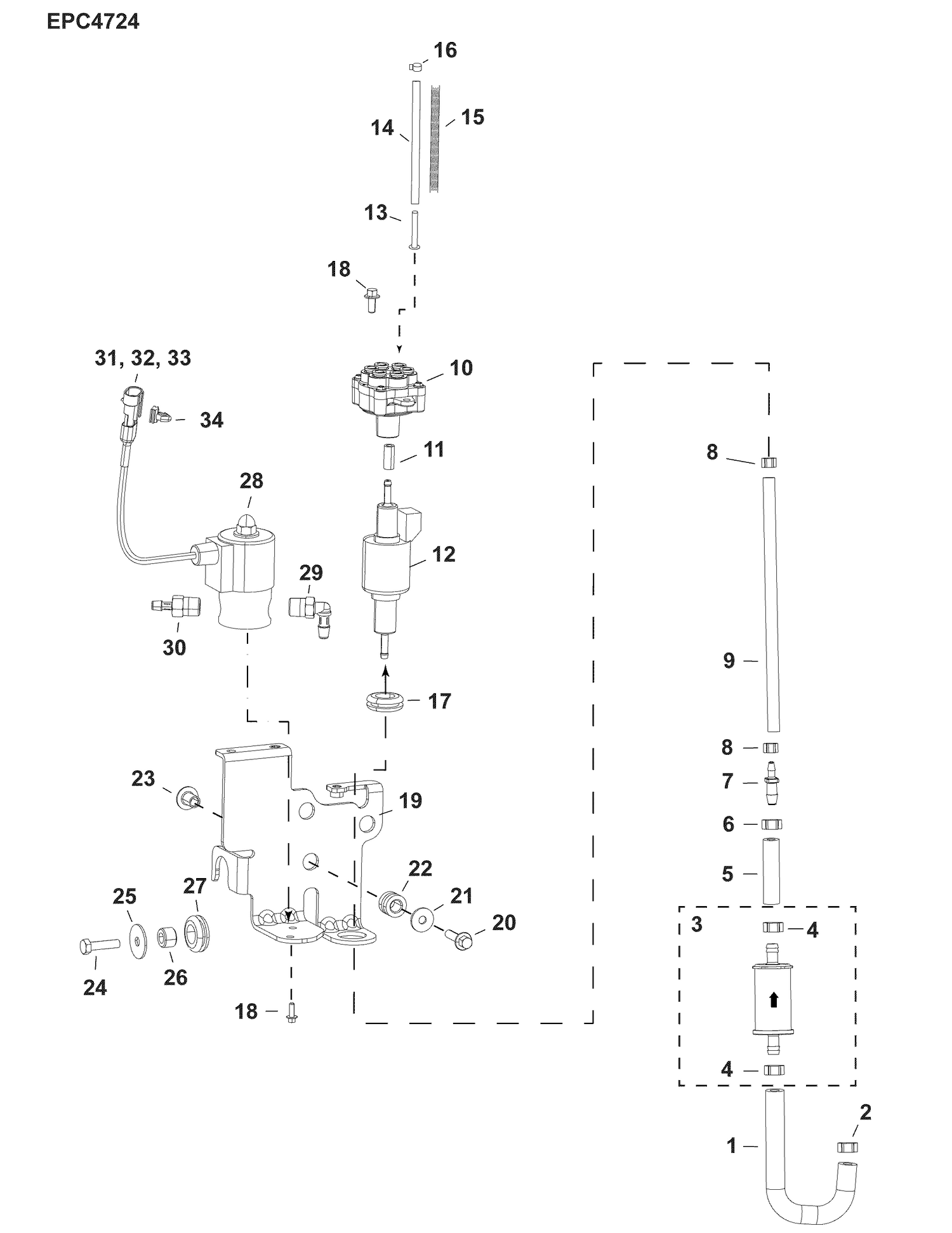

03-8_REAR OIL PUMP & WATER VALVE
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 5011891 | Kit This part replaces 5009439. |
| 7 | 0356361 | FITTING, Reducer |
| 8 | 0348838 | CLAMP, 10.5mm |
| 16 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 19 | 0357774 | BRACKET |
| 24 | 0357635 | SCREW |
| 26 | 0335328 | SCREW, Connector |
| 28 | 5011100 | Valve Ay This part replaces 5009415. |
