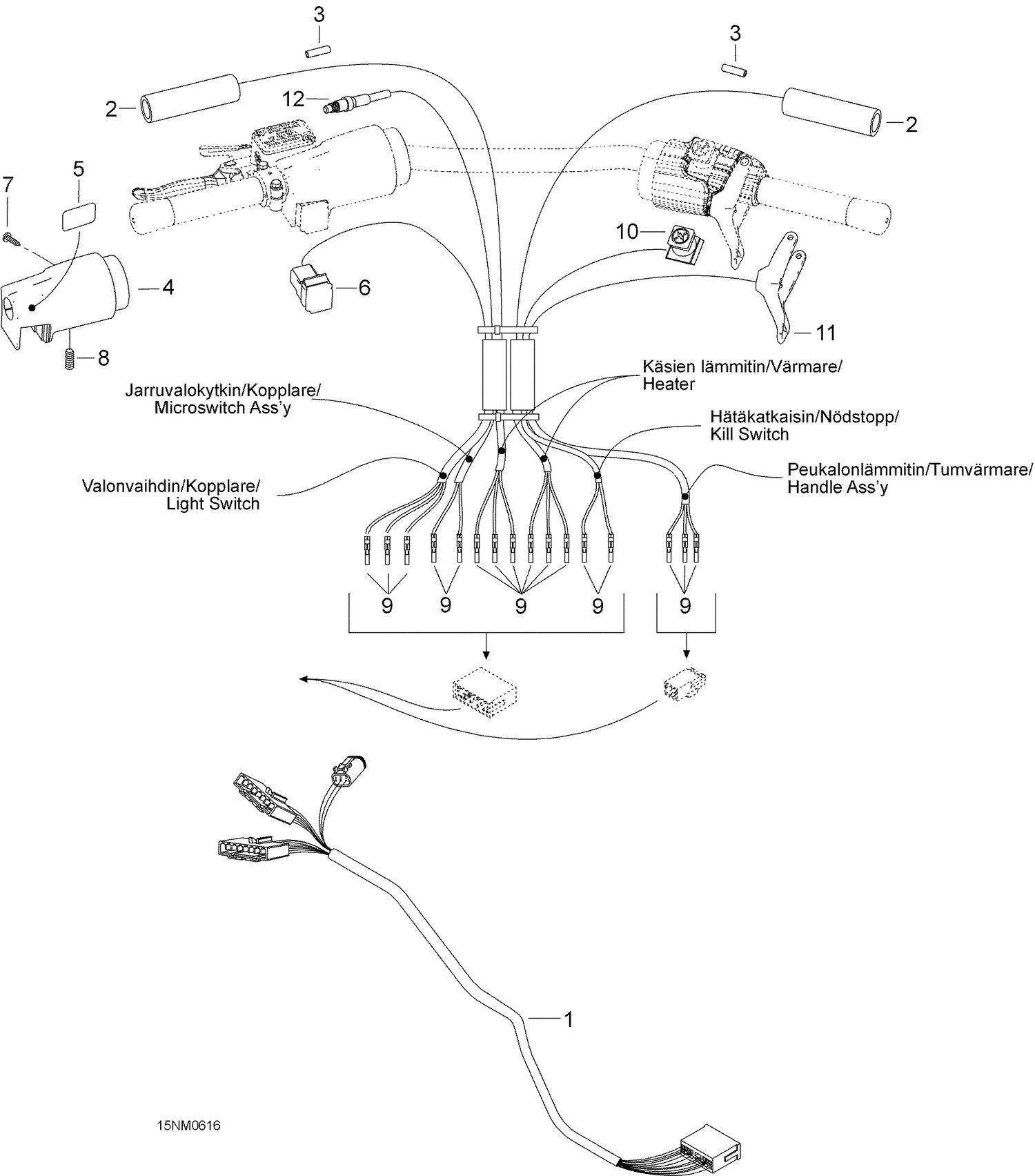

10- Steering Wiring Harness 550 SWT
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515175664 | Heating Grip |
| 3 | M39023 | Housing |
| 4 | 515175696 | BRAKE HOUSING - Call your local BRP dealership |
| 5 | 415025500 | Switch Decal |
| 6 | 515175814 | LIGHT SWITCH - Call your local BRP dealership |
| 7 | 250000022 | SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 8 | 414440800 | Socket Set Screw M8 X 10 |
| 9 | 605642628 | CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 10 | 515175410 | Kill Switch |
