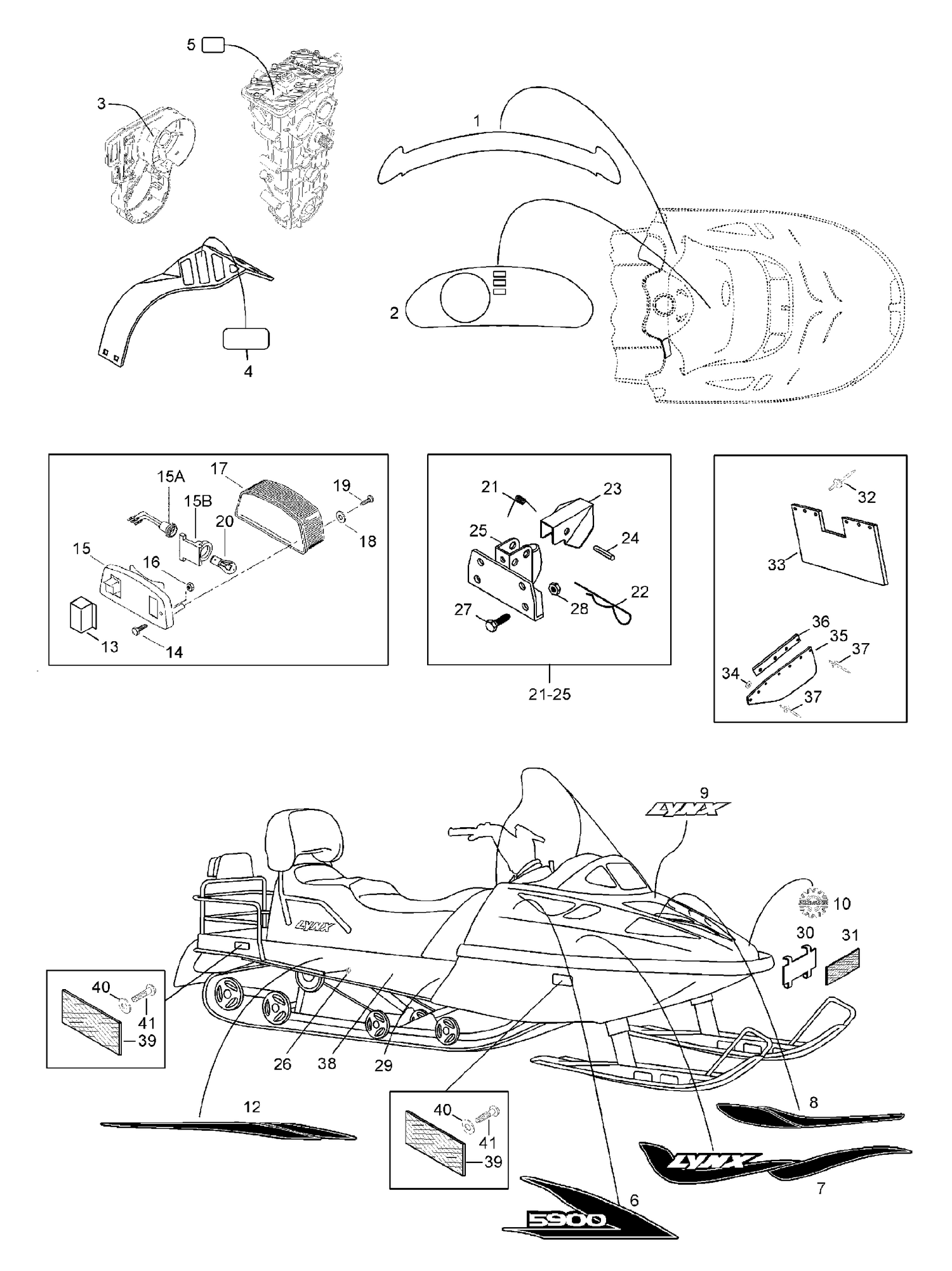

09- Equipment
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5343811 | Instruction decal |
| 2 | 5343810 | Dash decal |
| 3 | 544073 | Fanbelt decal |
| 4 | 546820 | Warning decal |
| 5 | 544068 | Oil cheking decal |
| 6 | 5345821 | Decal, upper hood R. |
| 6 | 5345822 | Decal, upper hood L.H |
| 7 | 5345822 | Hood decal lower R.H. |
| 7 | 5345823 | Hood decal lower L.H. |
| 8 | 5345818 | Hood decal upper R.H |
| 8 | 5345819 | Hood decal upper L.H. |
| 9 | 5345824 | Middle decal hood |
| 10 | 516008738 | Logo 48mm "BRP" This part replaces 516000282. |
| 12 | 5345831 | Decal chassis R.H. |
| 13 | 5345713 | Cover - Call your local BRP dealership |
| 14 | 40032 | Screw M6x30 |
| 15 | 414979400 | Tail lamp housing |
| 15A | 414979410 | Socket |
| 15B | 414979411 | Rubber Damper |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 17 | 414513700 | Lens |
| 18 | 414516400 | Washer - Call your local BRP dealership |
| 19 | 40613 | Screw |
| 20 | 520000758 | Bulb This part replaces 410504000. |
| 21 | 545693 | SPRING - Call your local BRP dealership |
| 22 | 41029 | Pin |
| 23 | 5440767 | Latch |
| 24 | 41012 | Cotter |
| 25 | 5344156 | HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 26 | 28136 | Plugg |
| 27 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 28 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 29 | 5445636 | CE-decal |
| 30 | 5440839 | Support |
| 31 | 21060 | Front reflector white |
| 32 | 36036 | Rivet |
| 33 | 535437 | Snow guard |
| 34 | 20008 | Washer |
| 35 | 5142828 | Lateral snow guard |
| 36 | 5340532 | Side Snow Guard Guide - Call your local BRP dealership |
| 37 | 36005 | Rivet |
| 38 | 5144861 | Chassis |
| 39 | 414510200 | REFLECTOR, AMBER - Call your local BRP dealership |
| 40 | 20018 | Washer |
