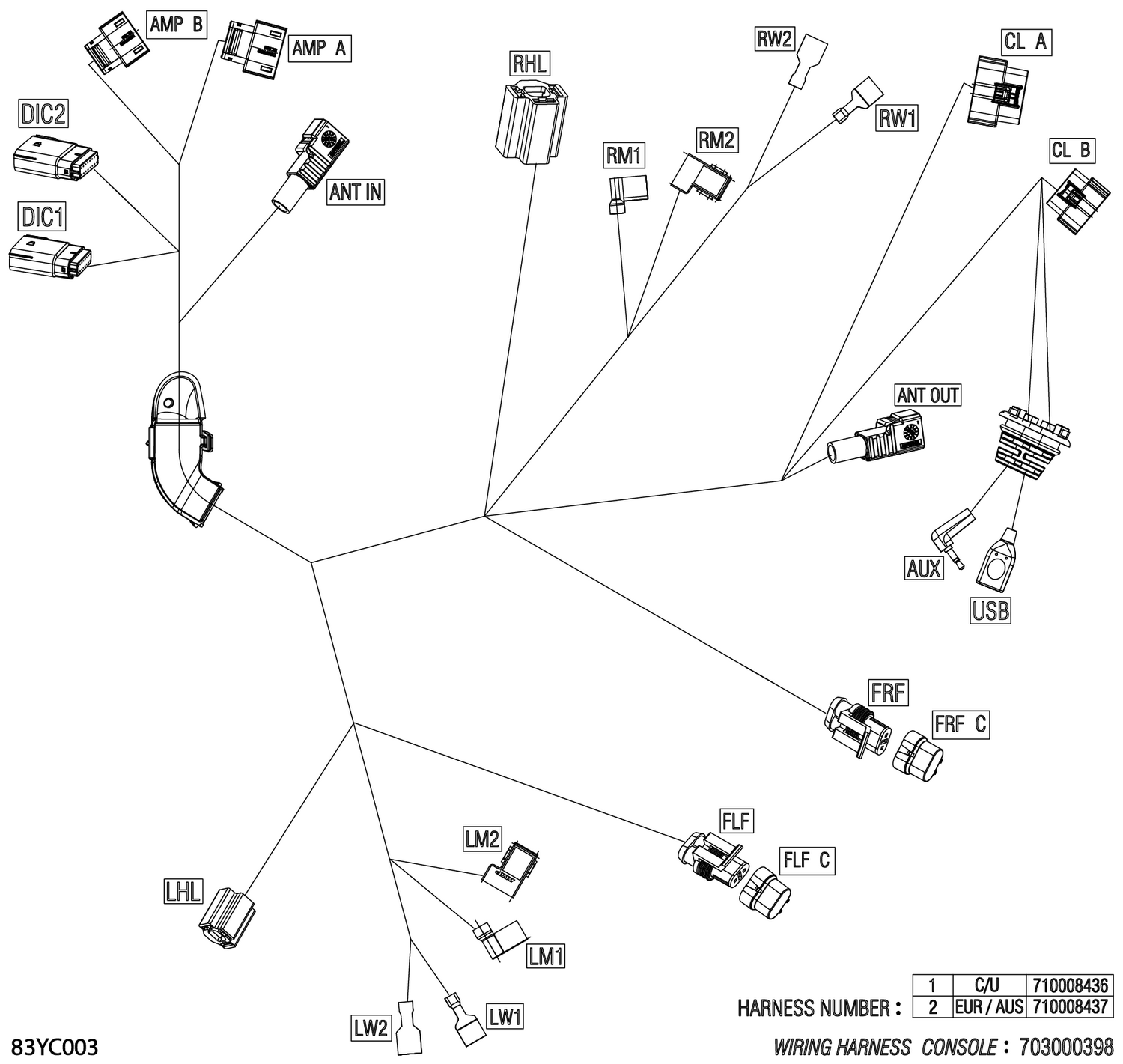

08- Electric - Console Wiring Harness - 710008436
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| AUX | 278003492 | Audio Jack |
| AUX | 515178018 | Female Terminal |
| DIC1 | 278002860 | Sealing Cap |
| DIC1 | 515178013 | Male Terminal |
| DIC1 | 710005976 | Connector Molex Mx150 16 Pos |
| DIC2 | 278002860 | Sealing Cap |
| DIC2 | 515178013 | Male Terminal |
| DIC2 | 710005977 | Connector Molex Mx150 16 Pos |
| LHL | 515176908 | Female Housing |
| LHL | 515176909 | Terminal |
| LM1 | 710004858 | Female Terminal |
| LM2 | 710002399 | Female Terminal |
| LM2 | 710004835 | Terminal |
| LW1 | 710004857 | Female Terminal |
| LW2 | 409010100 | Female Terminal |
| LW2 | 409010400 | Female Terminal Housing, 1 Circuit |
| RHL | 515176908 | Female Housing |
| RHL | 515176909 | Terminal |
| RM1 | 710004858 | Female Terminal |
| RM2 | 710002399 | Female Terminal |
| RM2 | 710004835 | Terminal |
| RW1 | 710004857 | Female Terminal |
| RW2 | 409010100 | Female Terminal |
| RW2 | 409010400 | Female Terminal Housing, 1 Circuit |
| USB | 710006405 | USB Connector |
| 50 | 710008436 | Console Wiring Harness |
