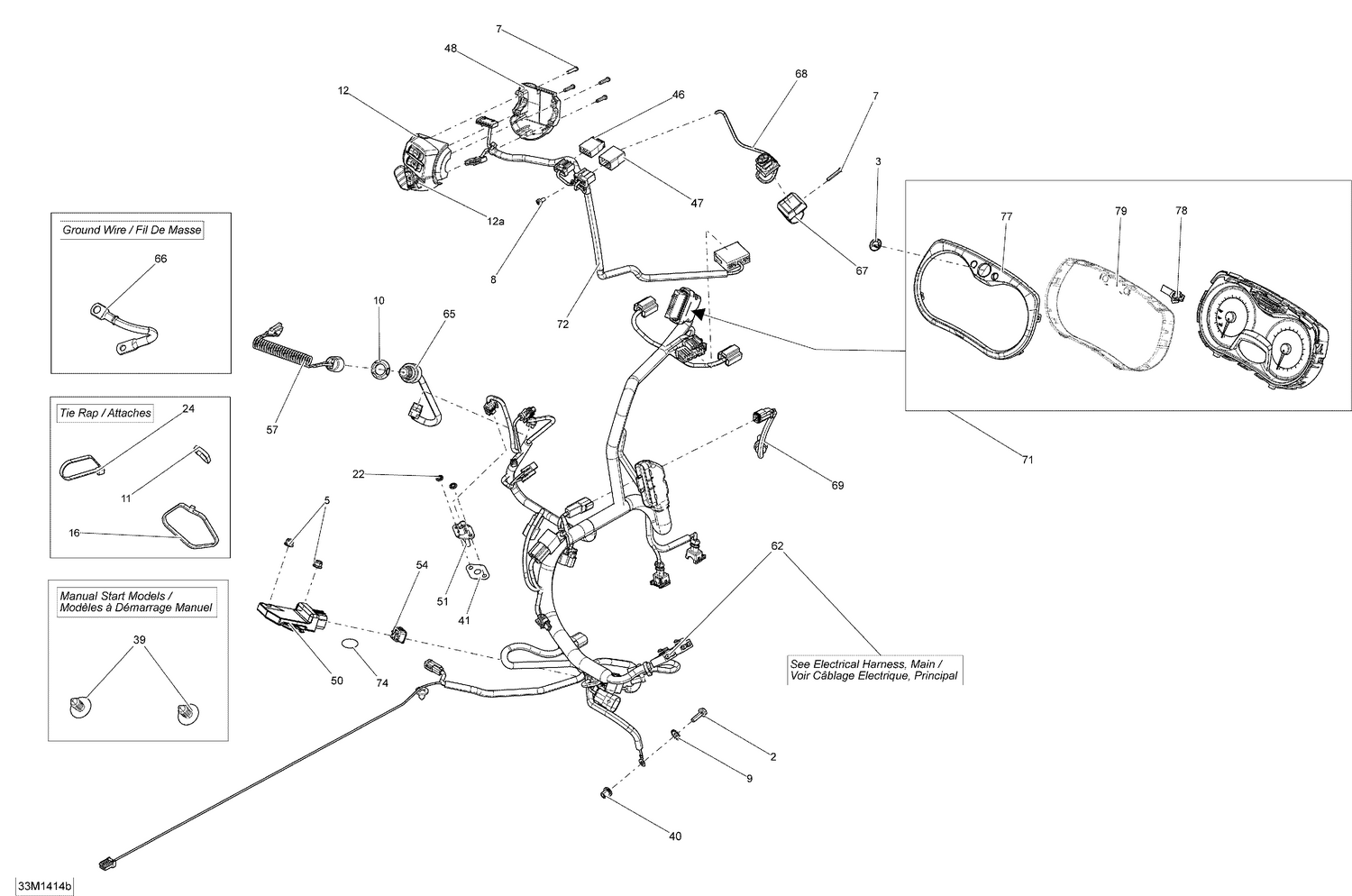

10- Electrical System 800R PTEK
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 250000263 | Torx Screw #8-18 |
| 8 | 250000690 | Pan Screw Forming, 7500C |
| 9 | 250200041 | Lock Washer Serrated M6 |
| 10 | 278002963 | Safety Nut (DESS Switch) |
| 11 | 293750002 | Tie Wrap 142 mm |
| 12 | 515177022 | LH Housing |
| 12a | 515176088 | Start/RER Button |
| 16 | 293750008 | Tie Wrap 368 mm |
| 22 | 389804300 | Push Nut |
| 24 | 414115200 | Tie-Rap 180 mm |
| 39 | 414644300 | Black, Dart |
| 40 | 293450275 | Insert |
| 41 | 508000769 | Seal |
| 46 | 515175662 | Male Terminal Housing, 6 Circuits |
| 47 | 515175817 | Male Terminal Housing, 8 Circuits |
| 48 | 515175926 | Switch Housing Plate |
| 50 | 515176364 | Voltage Regulator |
| 51 | 515176366 | Air Temperature Sensor |
| 54 | 515176681 | Lock |
| 57 | 515178284 | DESS This part replaces 515177057. |
| 62 | 515177096 | Main harness Ass'y |
| 65 | 515177249 | DESS Switch |
| 66 | 515177289 | Ground Wire |
| 67 | 515177310 | Emergency Stop Switch Support |
| 68 | 515177362 | Emergency Stop Switch |
| 69 | 420664509 | Temperature Sensor This part replaces 515177471. |
| 71 | 515177914 | Speedometer This part replaces 515177588. |
| 72 | 515177609 | Steering Wiring Harness |
| 74 | 518325560 | Adhesive Patch |
| 77 | 415129370 | Gauge Ring |
| 78 | 415129355 | Speedometer Button |
