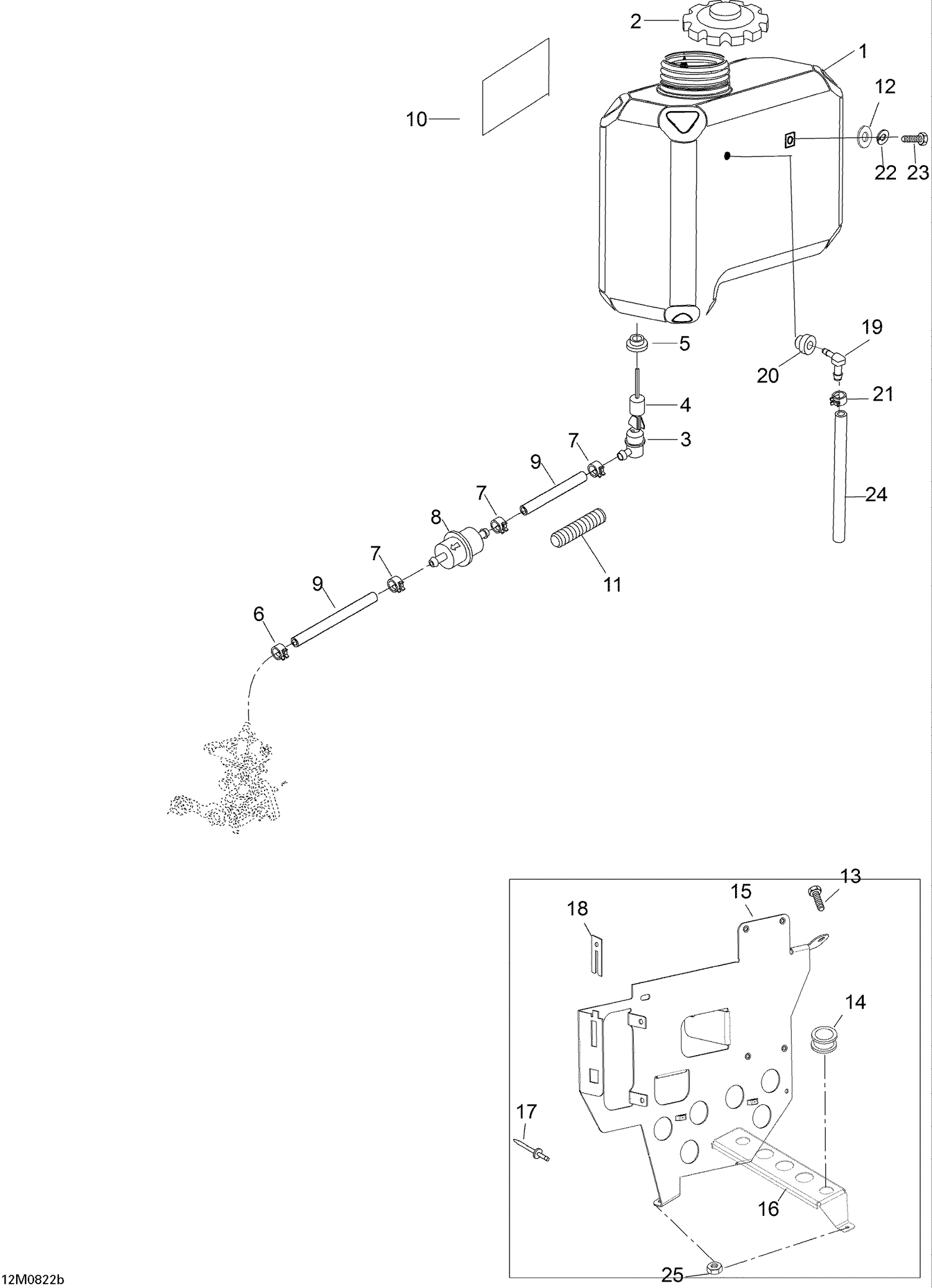

| Ref | Part Number | Description |
|---|
| 1 |
605155569 |
OIL TANK - Call your local BRP dealership |
| 2 |
519000044 |
CAP - Call your local BRP dealership |
| 3 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 4 |
515176327 |
OIL LEVEL SENSOR - Call your local BRP dealership |
| 5 |
570023000 |
Insulating Ring |
| 6 |
414420700 |
Spring Clamp |
| 7 |
414415200 |
Spring Clamp |
| 8 |
414536500 |
Filter |
| 9 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 10 |
M5443578 |
Reflecting Sheet |
| 11 |
M28015 |
HOUSING - Call your local BRP dealership |
| 12 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 13 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 14 |
M5446766 |
Passe-Fils *Grommet |
| 15 |
605255412 |
RESERVOIR SUPPORT - Call your local BRP dealership |
| 16 |
605355414 |
AIR INTAKE SILENCER SUPPORT - Call your local BRP dealership |
| 17 |
36108 |
Rivet This part replaces M36108. |
| 18 |
M5447032 |
LOCK - Call your local BRP dealership |
| 19 |
414580700 |
Male Connector |
| 20 |
709200285 |
Grommet This part replaces 570135100. |
| 21 |
414554800 |
Spring Clamp |
| 22 |
234161471 |
Lock Washer M6, Black |
| 23 |
207161044 |
HEX. SCREW M6 X 10 - Call your local BRP dealership |
| 24 |
219704410 |
Polyurethane Hose 10000Mm Long |
