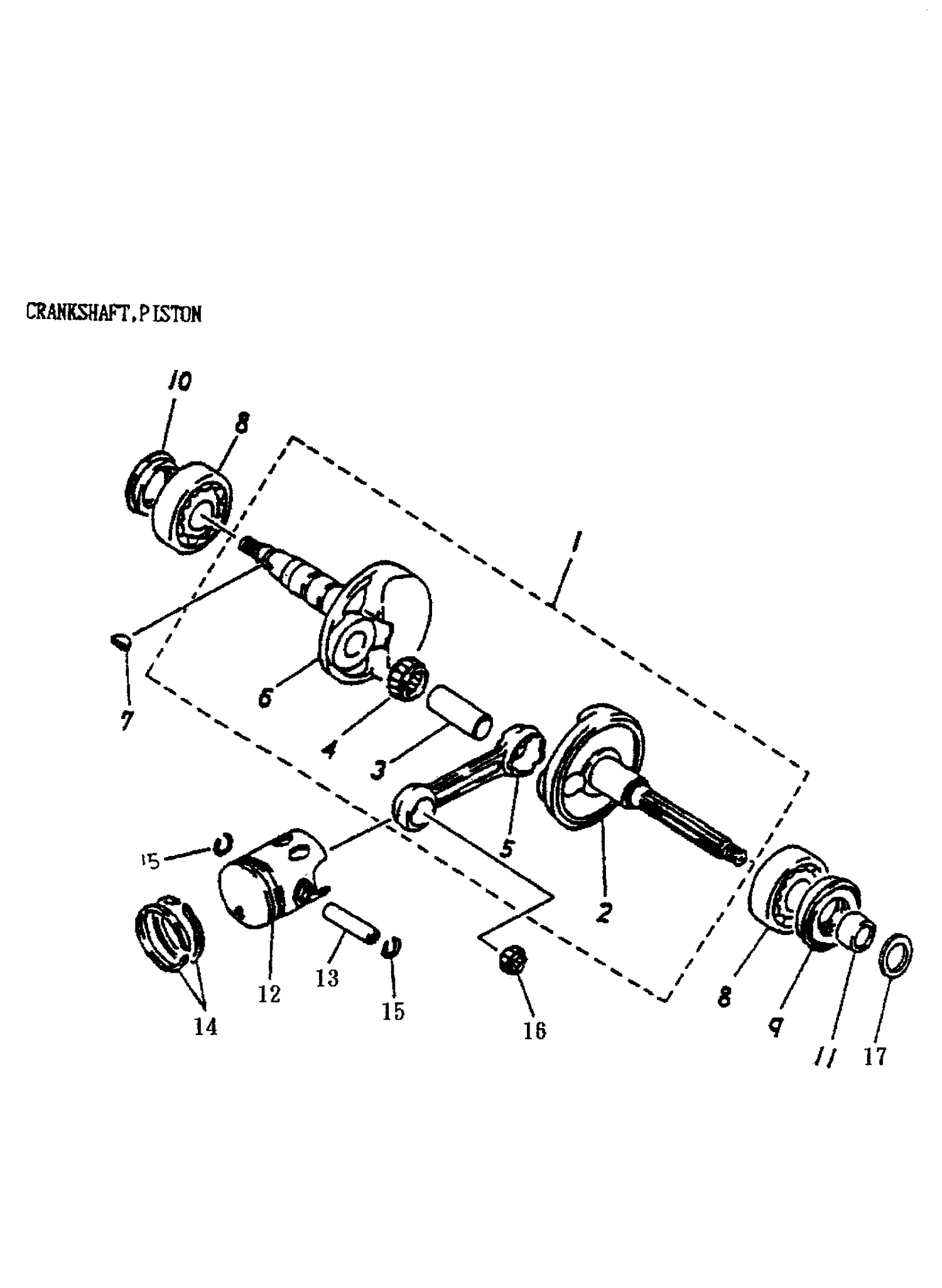

01- Crankshaft And Pistons
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A13000116000 | Crankshaft Ass'y |
| 2 | A13321116000 | Left Crank |
| 3 | A13381104000 | Crank Pin |
| 4 | A96200162212 | Needle Bearing, 16 X 22 X 12 |
| 5 | A13201104000 | Crank Connecting Rod |
| 6 | A13311116000 | RH Crank |
| 7 | A90471104000 | SEMICYCLE KEY, 3 X 13 - Call your local BRP dealership |
| 8 | A9610062040 | RADIAL BALL BEARING, 6204C3 - Call your local BRP dealership |
| 9 | A9650020428 | OIL SEAL, 20 X 42/43 X 8/9 - Call your local BRP dealership |
| 10 | A9650020306 | Oil Seal, 20 X 30/33 X 6 |
| 11 | A13316116000 | Left Crank Collar, 15 X 20 X 12 |
| 12 | A13100116000 | Piston |
| 13 | A13111104000 | PISTON PIN, 7 X 10 X 33 - Call your local BRP dealership |
| 14 | A13011116000 | PISTON RING SET - Call your local BRP dealership |
| 15 | A13115104000 | PISTON PIN CLIP, 1.2 X 12 - Call your local BRP dealership |
| 16 | A96200101412 | NEEDLE BEARING, 10 X 14 X 12.5 - Call your local BRP dealership |
