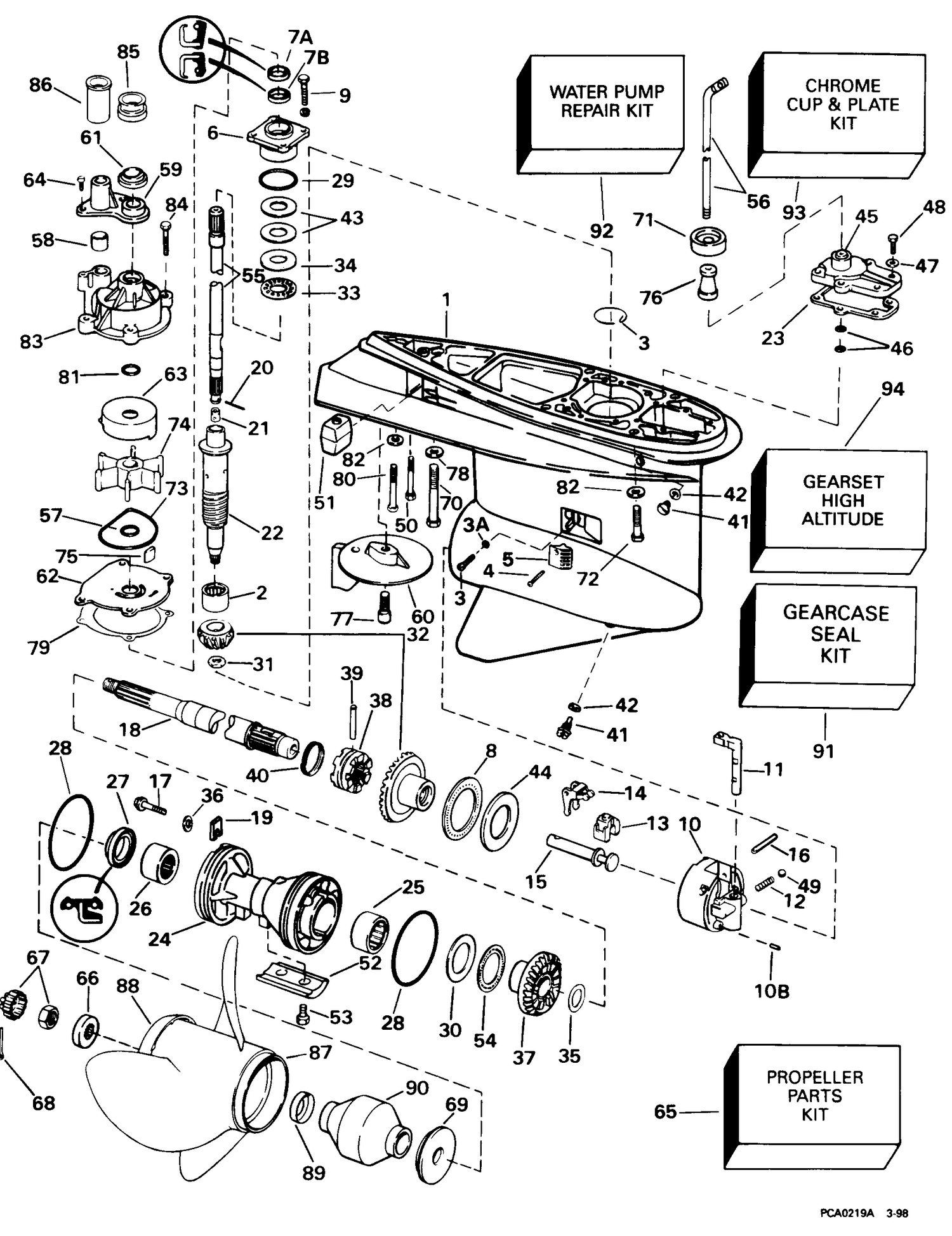

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 27 |
0341281 |
SEAL |
| 28 |
0305123 |
O RING |
| 55 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 0436232. |
| 55 |
5007672 |
DRIVESHAFT Assembly, Upper This part replaces 0436233. |
| 56 |
0329864 |
SHIFT ROD |
| 56 |
0329865 |
SHIFT ROD |
| 60 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 65 |
0434153 |
KIT MATÉRIEL DE MONTAGE D’HÉLICE |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 77 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 80 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 81 |
0331188 |
O-Ring |
| 83 |
0435990 |
IMPELLER HOUSING |
| 87 |
0391201 |
PROP, 14-1/2 x 19 |
| 91 |
5006373 |
GEARCASE SEAL KIT This part replaces 0439141. |
| 92 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0434421. |
| 92 |
5001595 |
Water Pump Repair Kit This part replaces 0435929. |
| 93 |
0435526 |
CHROME CUP & PLATE KIT |
| 0439505 |
5005401 |
GEARCASE Assy, Complete - (Primed) This part replaces 0439505. |
| 0439979 |
5005401 |
GEARCASE Assy, Complete - (Primed) This part replaces 0439979. |
