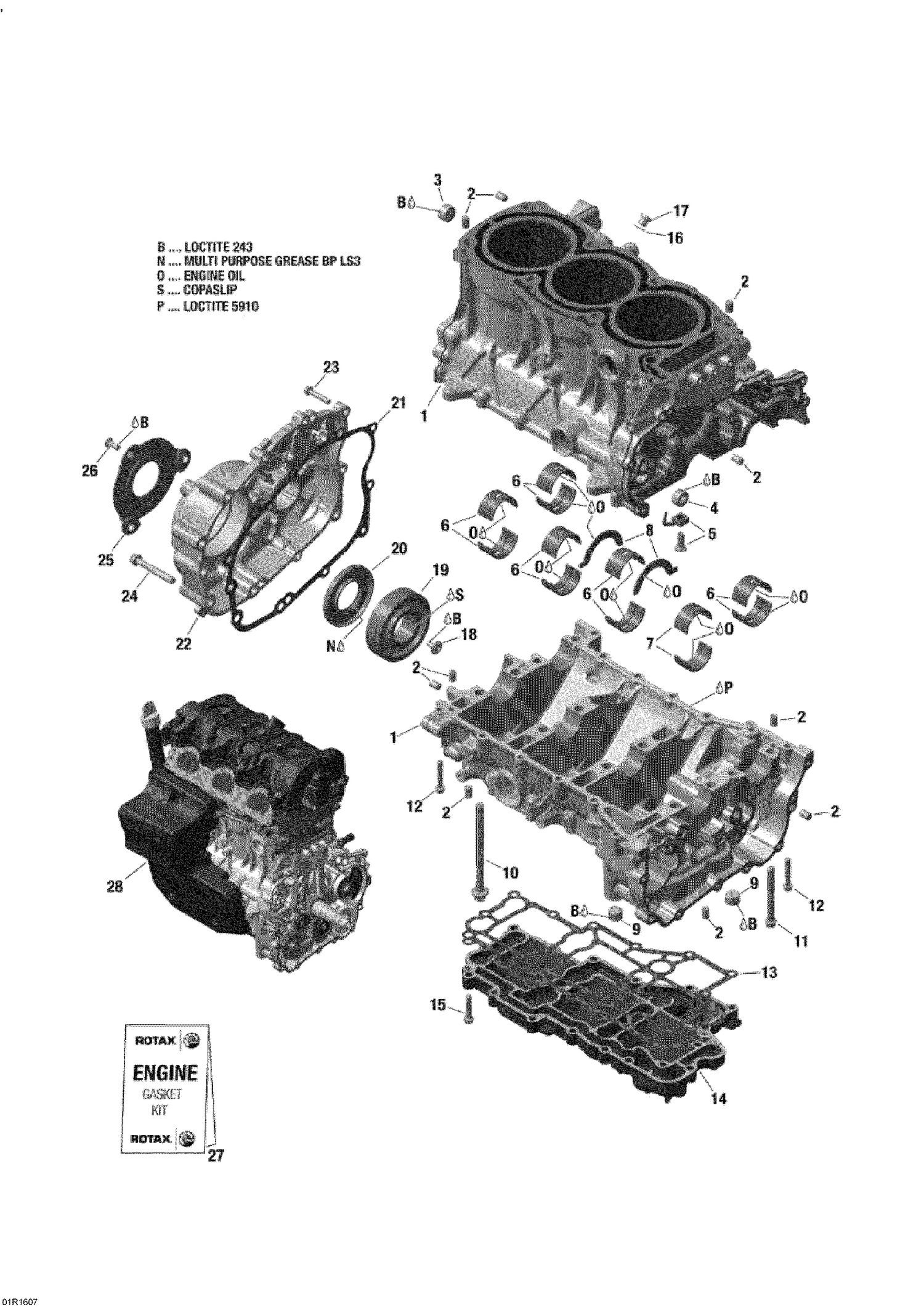

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| N |
Not |
Available As Spare Part - Dow Corning 111 |
| O |
Not |
Available As Spare Part - Engine Oil |
| S |
Not |
Available As Spare Part - Loctite 8151 (Antiseize) |
| 2 |
420632010 |
Center Pin 8 X 12 |
| 6 |
420933852 |
Plain Bearing |
| 7 |
420933862 |
Plain Bearing |
| 8 |
420933140 |
Ring Half 40,5X60X1,95 |
| 14 |
420611822 |
OIL SUMP COVER - Call your local BRP dealership |
| 19 |
420432125 |
Ball Bearing |
| 22 |
420611845 |
PTO Cover |
| 25 |
420910240 |
Oil Seal Cover |
| 27 |
420893054 |
Engine Gasket Kit |
| 28 |
300120303 |
ENGINE 1203 LONG BLOCK - Call your local BRP dealership |
