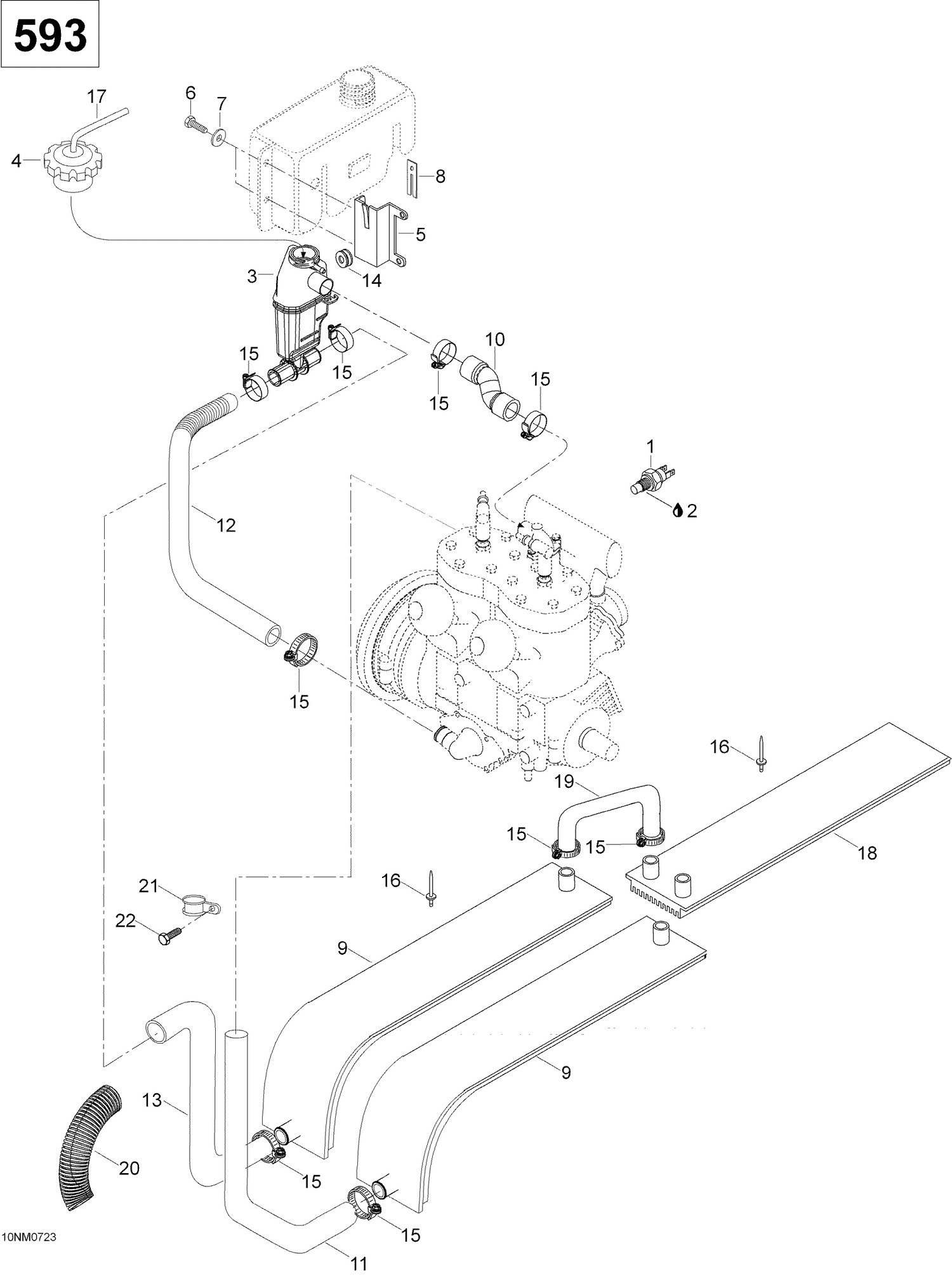

| Ref | Part Number | Description |
|---|
| 1 |
512047000 |
Temp sensor |
| 2 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
| 3 |
509000134 |
Coolant tank |
| 4 |
509000187 |
Pressure Cap |
| 5 |
5347031 |
Support, coolant tank |
| 6 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 7 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 8 |
5447032 |
Support plate |
| 9 |
5146385 |
R.H. radiator |
| 9 |
5146386 |
RADIATOR LH - Call your local BRP dealership |
| 10 |
605354489 |
HOSE COOLANT - Call your local BRP dealership |
| 11 |
605353565 |
HOSE - Call your local BRP dealership |
| 12 |
605353903 |
Hose, engine->tank |
| 13 |
605353567 |
HOSE - Call your local BRP dealership |
| 14 |
28022 |
Grommet |
| 15 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 16 |
36108 |
Rivet |
| 17 |
39038 |
Overflow hose |
| 18 |
5345916 |
Back radiator |
| 19 |
605353566 |
HOSE - Call your local BRP dealership |
| 20 |
390003 |
Tubing 1000 mm |
| 21 |
27011 |
Clamp |
