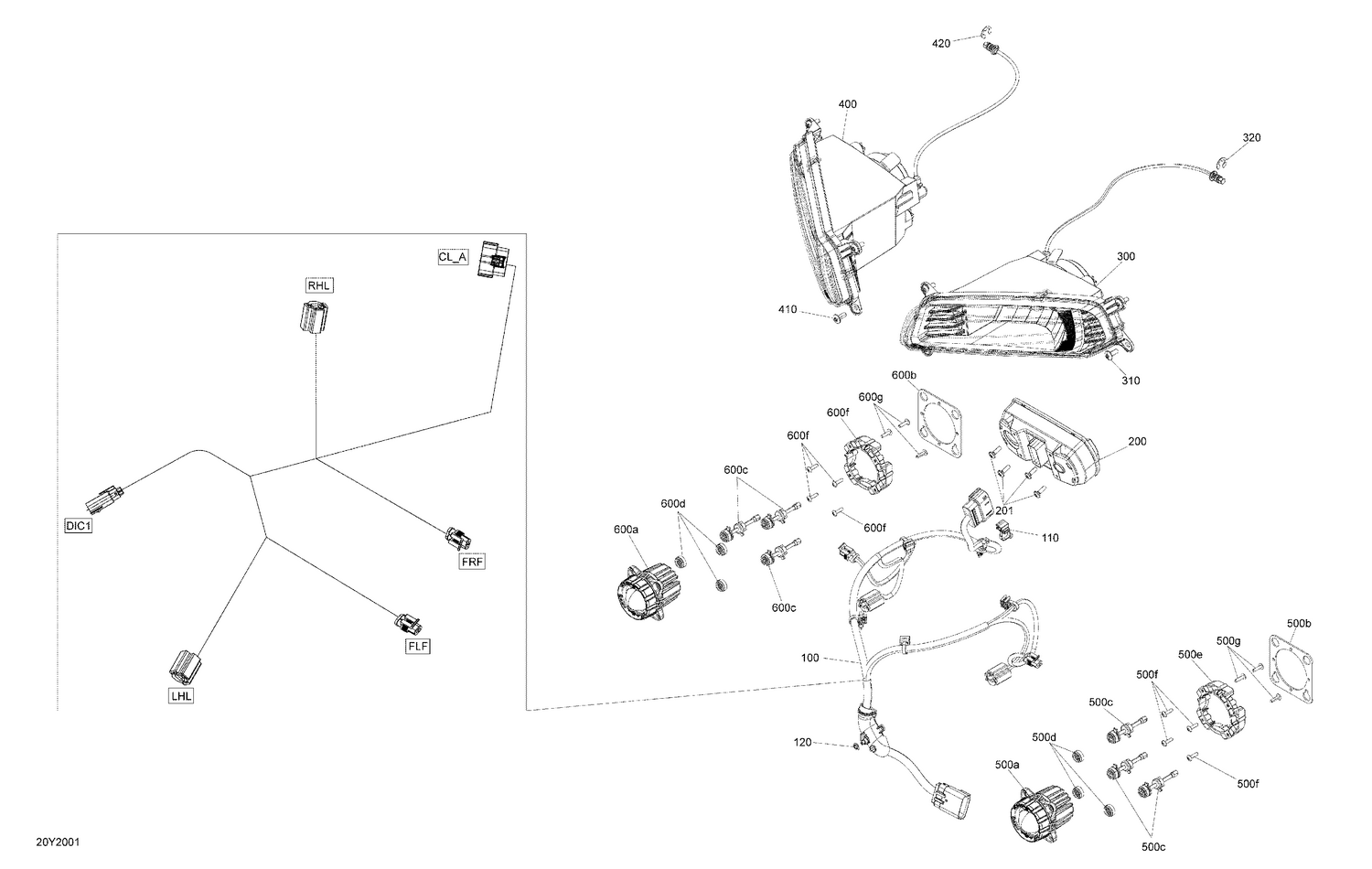

10- Electrical System Console
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| CL_A | 278002858 | Female Housing 20 Circuits |
| CL_A | 278002860 | Sealing Cap |
| DIC1 | 278002860 | Sealing Cap |
| DIC1 | 515178013 | Male Terminal |
| DIC1 | 710005976 | Connector Molex Mx150 16 Pos |
| FLF | 409209500 | Female Housing, 2 Circuits |
| FLF | 515176621 | Wire Seal |
| FLF | 710001340 | Female Terminal |
| FRF | 409209500 | Female Housing, 2 Circuits |
| FRF | 515176621 | Wire Seal |
| FRF | 710001340 | Female Terminal |
| LHL | 515176908 | Female Housing |
| LHL | 515176909 | Terminal |
| RHL | 515176908 | Female Housing |
| RHL | 515176909 | Terminal |
| 110 | 293750063 | Clip Tie-Rap |
| 120 | 250100034 | Push Nut |
| 200 | 710005165 | Multifunction Gauge |
| 201 | 250000720 | Torx Screw K50 X 16 |
| 300 | 710006997 | LH Headlight |
| 310 | 250000721 | Torx Truss Screw M6 X 16 |
| 320 | 293370013 | E-Circlip |
| 400 | 710006998 | RH Headlight |
| 410 | 250000721 | Torx Truss Screw M6 X 16 |
| 420 | 293370013 | E-Circlip |
