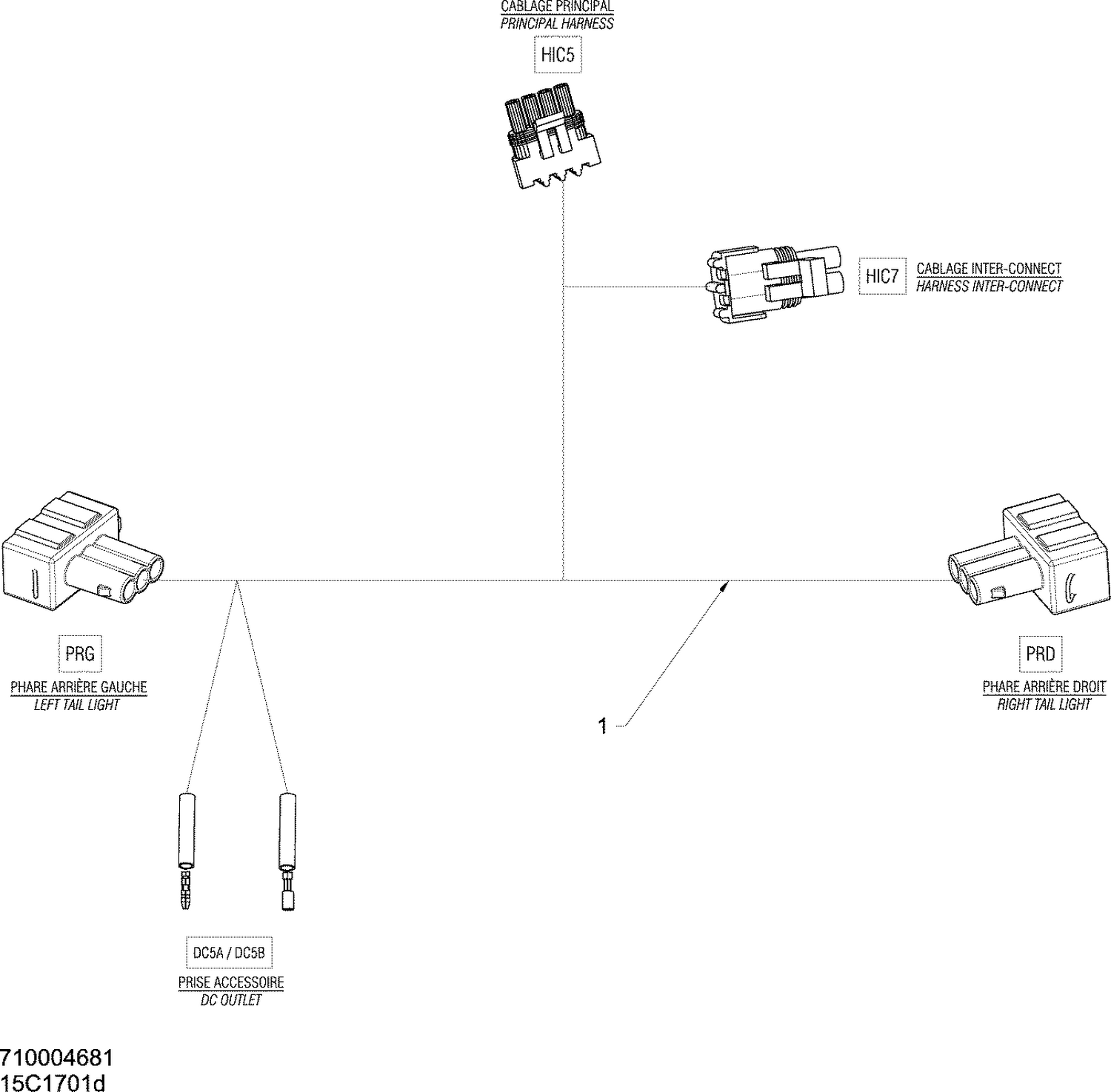

10- Electrical Harness - Except EUROPE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| DC5A | 278001008 | Insulated Sheath |
| DC5A | 278002261 | Female Terminal |
| DC5B | 278001007 | Insulated Sheath |
| DC5B | 710000421 | Female Terminal |
| HIC5 | 278000223 | Female Terminal |
| HIC5 | 278000395 | Male Housing, 4 Circuits |
| HIC5 | 278001065 | Wire Seal |
| HIC7 | 278000218 | Wire Seal |
| HIC7 | 278000220 | Male Connector, 2 Circuits |
| HIC7 | 409007300 | Female Terminal |
| PRD | 278000998 | Female Terminal |
| PRD | 415128501 | Seal |
| PRD | 710003167 | Connector, 3 Positions |
| PRG | 415128501 | Seal |
| PRG | 710003167 | Connector, 3 Positions |
