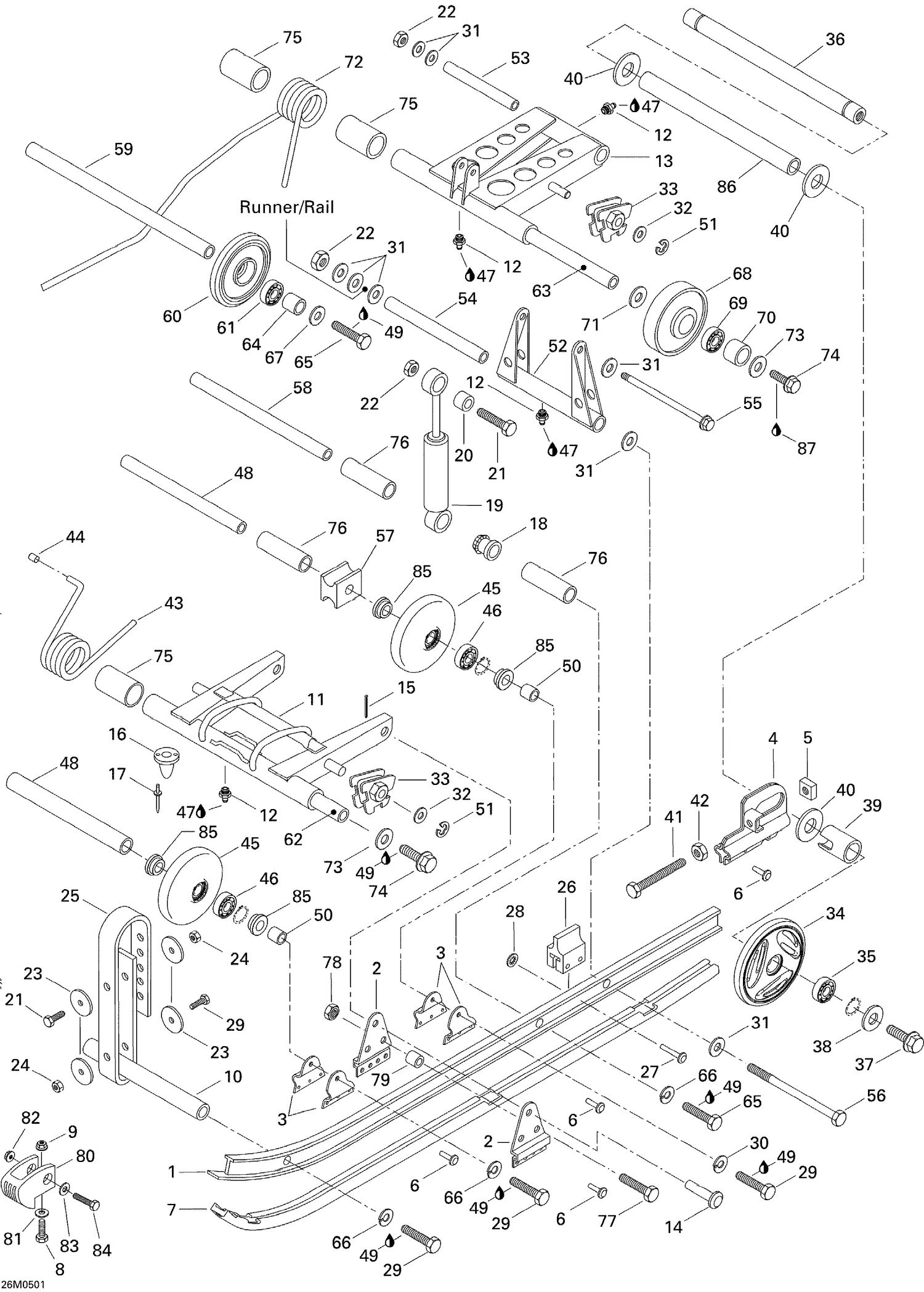

08- Rear Suspension
Parts (89)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503187900 | Runner |
| 2 | 503149800 | FRONT ARM SUPPORT - Call your local BRP dealership |
| 3 | 503145000 | Support |
| 4 | 503188921 | RH Adjustment Plate Welded |
| 4 | 503188924 | LH Adjustment Plate Welded |
| 5 | 232802400 | Square Nut M10 |
| 6 | 390906200 | FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 7 | 503189239 | Runner |
| 8 | 207053044 | Hex. Screw M5 X 30 |
| 9 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 10 | 503189225 | Cross Shaft |
| 11 | 503145300 | Paint Front Arm |
| 12 | 408200700 | Grease Fitting |
| 13 | 503143500 | Paint Rear Arm |
| 14 | 414191500 | Clevis Pin |
| 15 | 371800200 | Cotter Pin |
| 16 | 570032900 | Rubber Stopper |
| 17 | 390402000 | Pop Rivet 3/16" |
| 18 | 572030700 | BUSHING - Call your local BRP dealership |
| 19 | 503188901 | SHOCK - Call your local BRP dealership |
| 20 | 414802600 | CUSHION - Call your local BRP dealership |
| 21 | 207083544 | Hex. Screw M8 X 35 |
| 22 | 232581414 | Hex. Elastic Stop Nut M8 |
| 23 | 517078700 | WASHER - Call your local BRP dealership |
| 24 | 232581414 | Hex. Elastic Stop Nut M8 |
| 25 | 503190650 | Stopper Strap |
| 26 | 570047900 | FRONT RUBBER STOPPER - Call your local BRP dealership |
| 27 | 390004800 | RIVET-STEEL SOLID - Call your local BRP dealership |
| 28 | 389804300 | Push Nut |
| 29 | 207183044 | Hex. Screw M8 X 30 |
| 30 | 234181401 | Lock Washer 8 mm |
| 31 | 234081410 | Flat Washer 8 mm |
| 32 | 234001410 | Flat Washer 10 mm |
| 33 | 572030800 | LH ADJUST CAM - Call your local BRP dealership |
| 33 | 572030900 | RH ADJUST CAM - Call your local BRP dealership |
| 34 | 503191028 | Plastic Wheel 155mm |
| 35 | 293350115 | Ball Bearing This part replaces 503190795. |
| 36 | 503162400 | REAR AXLE - Call your local BRP dealership |
| 37 | 250000019 | Hex. Screw With Nylon |
| 38 | 503183300 | Washer |
| 39 | 503189809 | Outer Spacer |
| 40 | 504108200 | SHIM - Call your local BRP dealership |
| 41 | 207107544 | Hex. Screw M10 X 75 |
| 42 | 232006414 | Hex. Nut M10 X 1.5 |
| 43 | 414880400 | RH Paint Spring |
| 43 | 414880500 | LH PAINT SPRING - Call your local BRP dealership |
| 44 | 503189165 | Cap |
| 45 | 503191029 | Wheel 135 |
| 46 | 293350115 | Ball Bearing This part replaces 503190795. |
| 47 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 48 | 503145100 | Axle Center |
| 49 | 293800005 | Loctite 271, 10 ml |
| 50 | 503144200 | SPACER - Call your local BRP dealership |
| 52 | 503144100 | PAINT PIVOT ARM - Call your local BRP dealership |
| 53 | 503144300 | Upper Axle, Pivot Arm |
| 54 | 503144400 | LOWER PIVOT ARM - Call your local BRP dealership |
| 55 | 732601197 | Bolt M8, Short |
| 56 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 57 | 572034300 | Spring Support |
| 58 | 503144500 | CROSS SHAFT - Call your local BRP dealership |
| 59 | 503187400 | Cross Shaft |
| 60 | 572035400 | IDLER WHEEL - Call your local BRP dealership |
| 61 | 405404600 | Ball Bearing |
| 62 | 503144600 | Front Cross Shaft |
| 63 | 503144700 | Rear Cross Shaft |
| 64 | 572108400 | SPACER - Call your local BRP dealership |
| 65 | 207182544 | Hex. Screw M8 X 25 |
| 66 | 234181401 | Lock Washer 8 mm |
| 67 | 503189157 | Washer |
| 68 | 572095100 | Idler Wheel |
| 69 | 405404600 | Ball Bearing |
| 70 | 503144800 | Spacer |
| 71 | 503144900 | Washer |
| 72 | 414880200 | RH PAINT SPRING - Call your local BRP dealership |
| 72 | 414880300 | LH PAINT SPRING - Call your local BRP dealership |
| 73 | 503183800 | Washer |
| 74 | 207103544 | Hex. Screw M10 X 35 |
| 75 | 572039400 | BUSHING - Call your local BRP dealership |
| 76 | 572035600 | Plastic Bushing |
| 77 | 207084044 | Hex. Screw M8 X 40 |
| 78 | 232581414 | Hex. Elastic Stop Nut M8 |
| 79 | 503038300 | Spacer |
| 80 | 572054000 | Runner Protector |
| 81 | 234051410 | Flat Washer M5 |
| 82 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 83 | 224061121 | Flat Washer |
| 84 | 207063044 | Hex. Screw M6 X 30 |
| 85 | 503189093 | Cushion |
| 86 | 503162000 | CENTER SPACER - Call your local BRP dealership |
