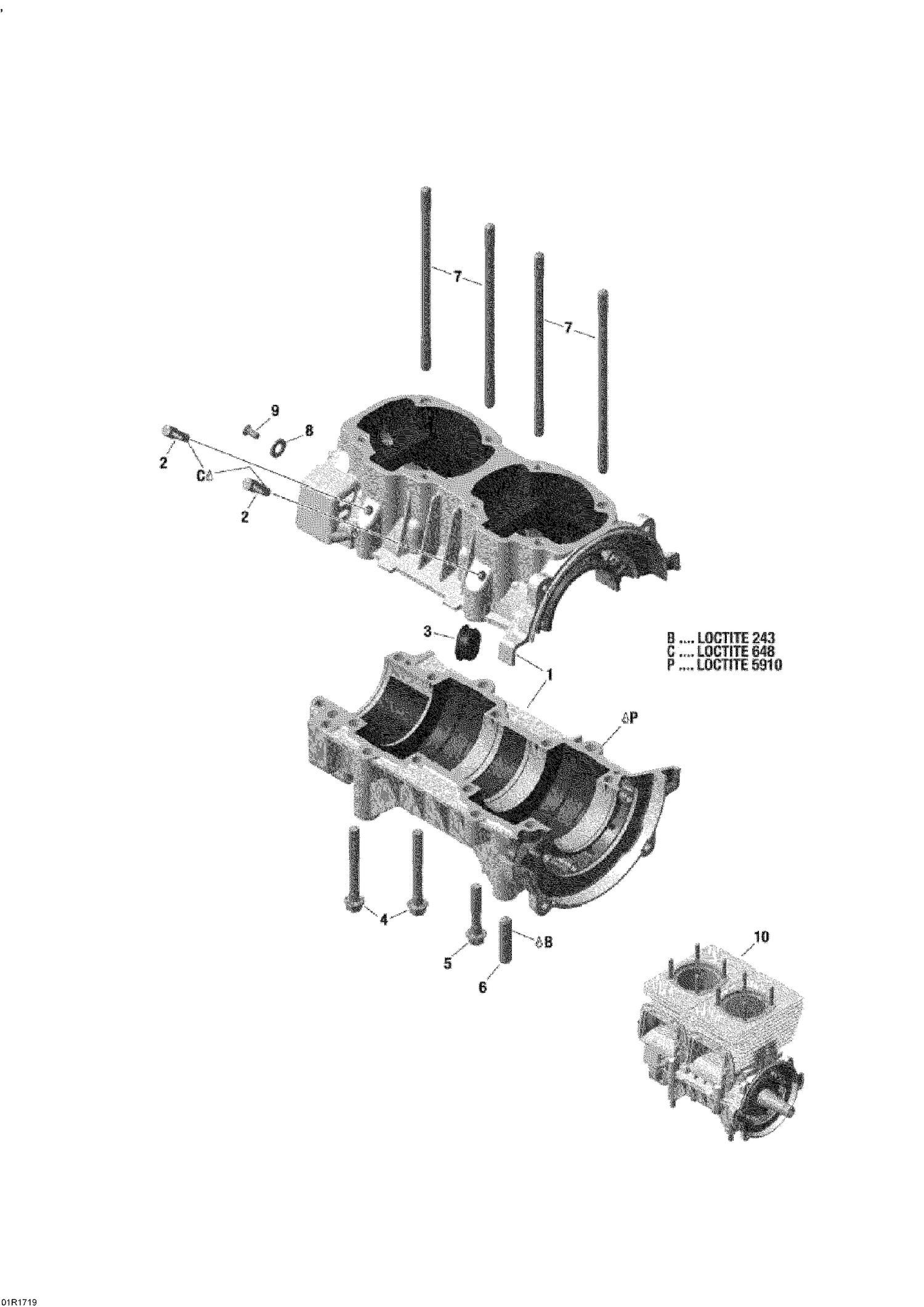

01- Crankcase
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420956511 | Check Valve This part replaces 420956510. |
| 3 | 420860962 | Cable Grommet |
| 4 | 420640959 | Collar Hex Screw M8 X 68.5 This part replaces 420640952. |
| 5 | 420640433 | Collar Hex Screw M8 X 45 This part replaces 420640432. |
| 6 | 420840266 | Stud M10 X 45 |
| 7 | 420840556 | Stud M8 X 173.5 |
| 8 | 420250315 | Flat Washer 8.4 mm This part replaces 420250311. |
| 9 | 420640897 | Taptite Flat Head Screw M5 x 12 |
| 10 | 420055208 | Short Block 552 XP |
