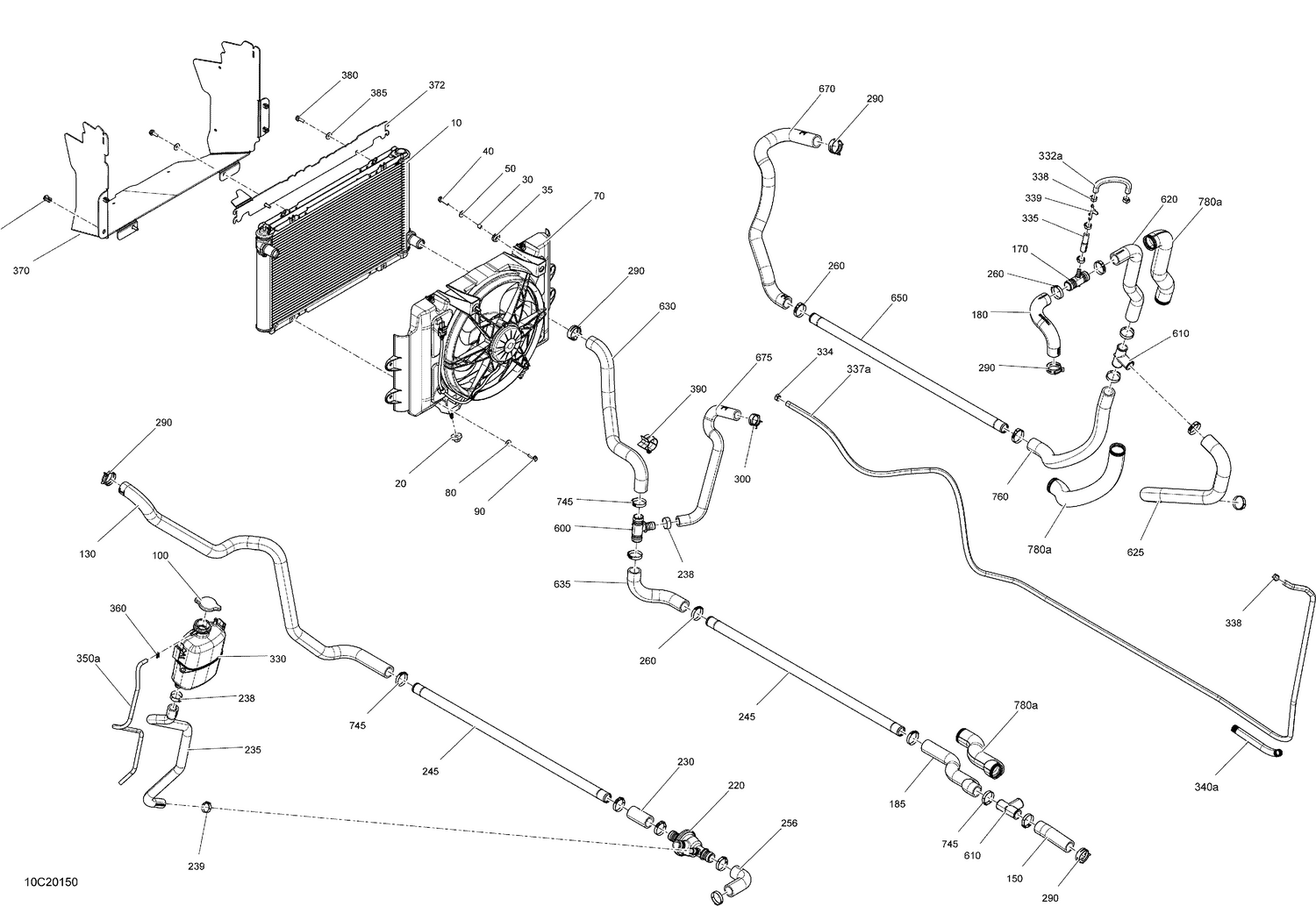

01- Cooling - System
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200951 | Radiator |
| 20 | 709200285 | Grommet |
| 30 | 293900105 | Bushing |
| 35 | 709000582 | Grommet This part replaces 293720053. |
| 40 | 207662544 | Hex. Flange Screw M6 X 25 |
| 50 | 234062410 | Flat Washer 6 mm |
| 70 | 709200534 | Fan Ass'y |
| 80 | 207662044 | Hex. Flange Screw M6 X 20 |
| 90 | 234062410 | Flat Washer 6 mm |
| 100 | 709200207 | Radiator Pressure Cap |
| 130 | 709200958 | Radiator Hose In |
| 150 | 709200545 | Pump Hose |
| 170 | 509000510 | T-Fitting |
| 180 | 709200915 | Hose Engine Out |
| 185 | 709200916 | Hose Engine In |
| 220 | 709200967 | Thermostat Housing |
| 230 | 709200299 | Hose |
| 235 | 709200918 | Hose Coolant Tank Out |
| 238 | 293650165 | Oetiker Gear Clamp |
| 239 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 245 | 709200658 | Heater Tubing |
| 256 | 709200913 | Thermostat Hose |
| 260 | 509000162 | Gear Clamp |
| 290 | 293650166 | Norma Spring Clamp |
| 300 | 293650109 | Norma Spring Clamp |
| 330 | 709201323 | Coolant Tank This part replaces 709200412. |
| 332a | 219704416 | Was 415129508 Bleeder Hose |
| 334 | 293650042 | Oetiker Clamp |
| 335 | 709200606 | Bleeding Hose |
| 337a | 219704416 | Was 415129508 Bleeder Hose |
| 338 | 293650047 | Crimp Clamp, 15.3-706R |
| 339 | 293710059 | Y-Fitting |
| 340a | 219704408 | Tubing 16 Mm 1000Mm Long |
| 350a | 219704389 | Polyurethane Hose 4000MM Long |
| 360 | 414554800 | Spring Clamp |
| 370 | 705013987 | Front Radiator Deflector |
| 372 | 705014486 | Front Radiator Deflector |
| 375 | 293150230 | Tuflok Plastic Rivet |
| 380 | 207662044 | Hex. Flange Screw M6 X 20 |
| 385 | 234062410 | Flat Washer 6 mm |
| 390 | 275500590 | Retainer |
| 600 | 509000372 | T-Fitting |
| 610 | 509000219 | T-Fitting |
| 620 | 709200808 | Hose |
| 625 | 709200817 | Thermostat Inlet Hose |
| 630 | 709200853 | Radiator Hose Out |
| 635 | 709200844 | Radiator Hose Out Middle |
| 650 | 709200658 | Heater Tubing |
| 670 | 709200889 | Hose |
| 675 | 709200890 | Hose |
| 745 | 509000162 | Gear Clamp |
| 760 | 709200740 | Hose |
