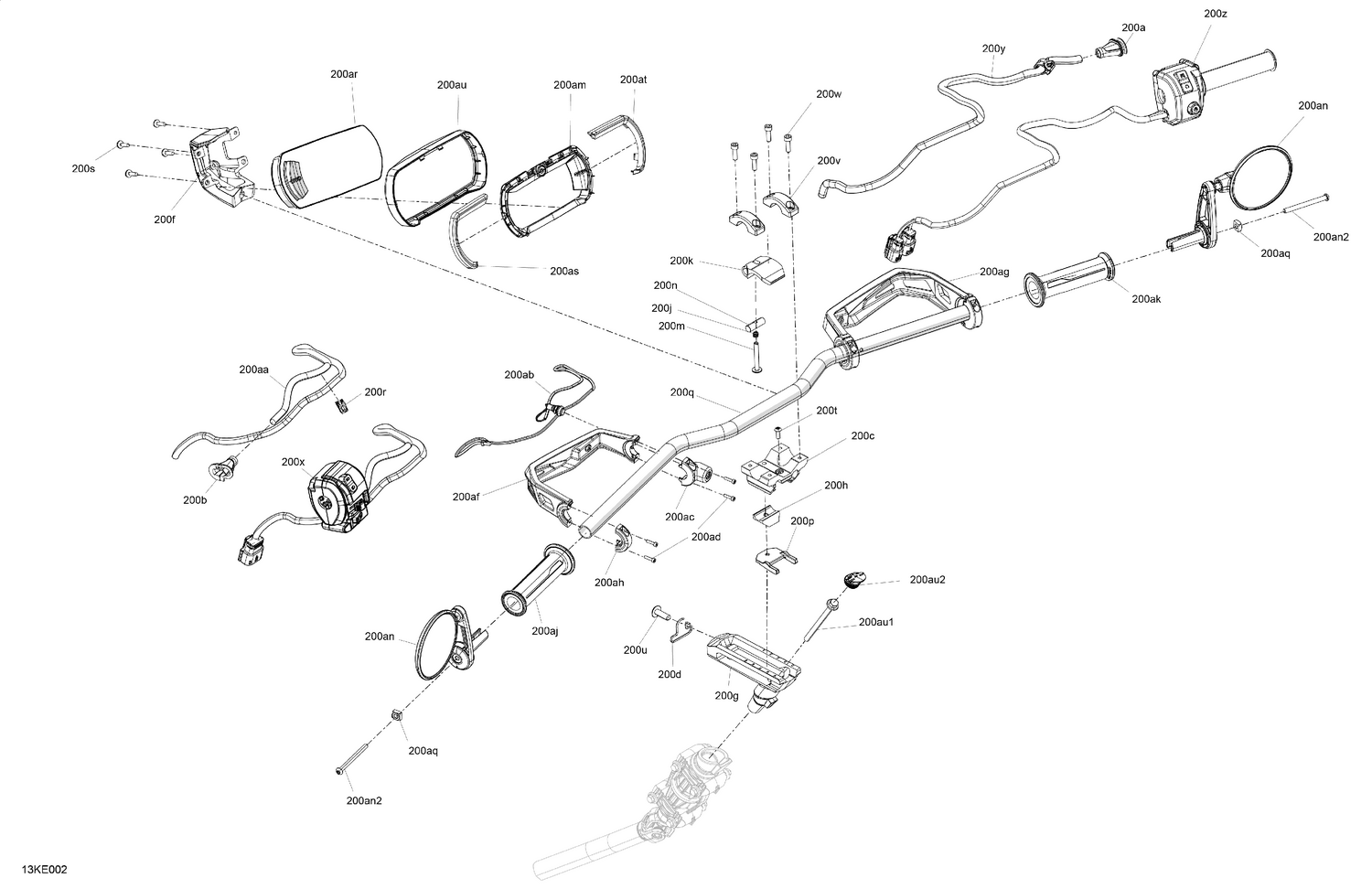

03- Mechanic - Handlebar
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 200a | 709402502 | Fairlead |
| 200aa | 415130141 | Braided Sleeve |
| 200ab | 710009333 | Switch |
| 200ac | 709402275 | Switch Support |
| 200ad | 250001011 | Black, Socket Head Screw M4 X 16 |
| 200af | 219400998 | Hand Guard Kit |
| 200ag | 219400998 | Hand Guard Kit |
| 200ah | 709402171 | Deep Black, Outside Fixing Clamp |
| 200aj | 709401984 | LH Handle Grip |
| 200ak | 709401985 | RH Handle Grip |
| 200am | 709402742 | Gauge Trim |
| 200an | 705018904 | Rear-View Mirror Ass'y |
| 200an2 | 235567084 | Torx Screw Button Head M6 X 70 |
| 200aq | 232862412 | Square Nut M6 |
| 200ar | 710008298 | Multifunction Compact Gauge |
| 200as | 709402210 | Deep Black, LH Trim Gauge |
| 200at | 709402211 | Deep Black, RH Trim Gauge |
| 200au1 | 207589554 | Hex. Flange Screw DIN.6921 S.GRIP |
| 200b | 709402513 | Fairlead |
| 200c | 709402452 | Slide |
| 200d | 709402267 | Steel Cable Support |
| 200f | 709402243 | Deep Black, Cluster Support |
| 200g | 709402965 | High Gloss Paint Stem |
| 200h | 506153164 | Adjuster Block |
| 200j | 709402427 | Compression Spring |
| 200k | 709402279 | Deep Black, Release Lever |
| 200m | 709402444 | Torx-Truss Screw M6 X 45 |
| 200n | 709402454 | Pin Lever |
| 200p | 709402273 | Rocker Arm |
| 200q | 709403101 | Carbon Black, Handlebar |
| 200r | 709402707 | Fairlead |
| 200s | 250000720 | Torx Screw K50 X 16 |
| 200t | 235551454 | Screw-Torx Button Head M5 X 14 |
| 200u | 250000874 | Torx Truss M8 X 25 |
| 200v | 709402255 | Deep Black, Handle Bar Clamp |
| 200w | 205562054 | Socket Head Screw M6 X 20 S.Grip |
| 200x | 710007370 | LH Multifunction Switch |
| 200y | 415130141 | Braided Sleeve |
| 200z | 710007369 | RH Multifunction Switch & Twist Throttle |
