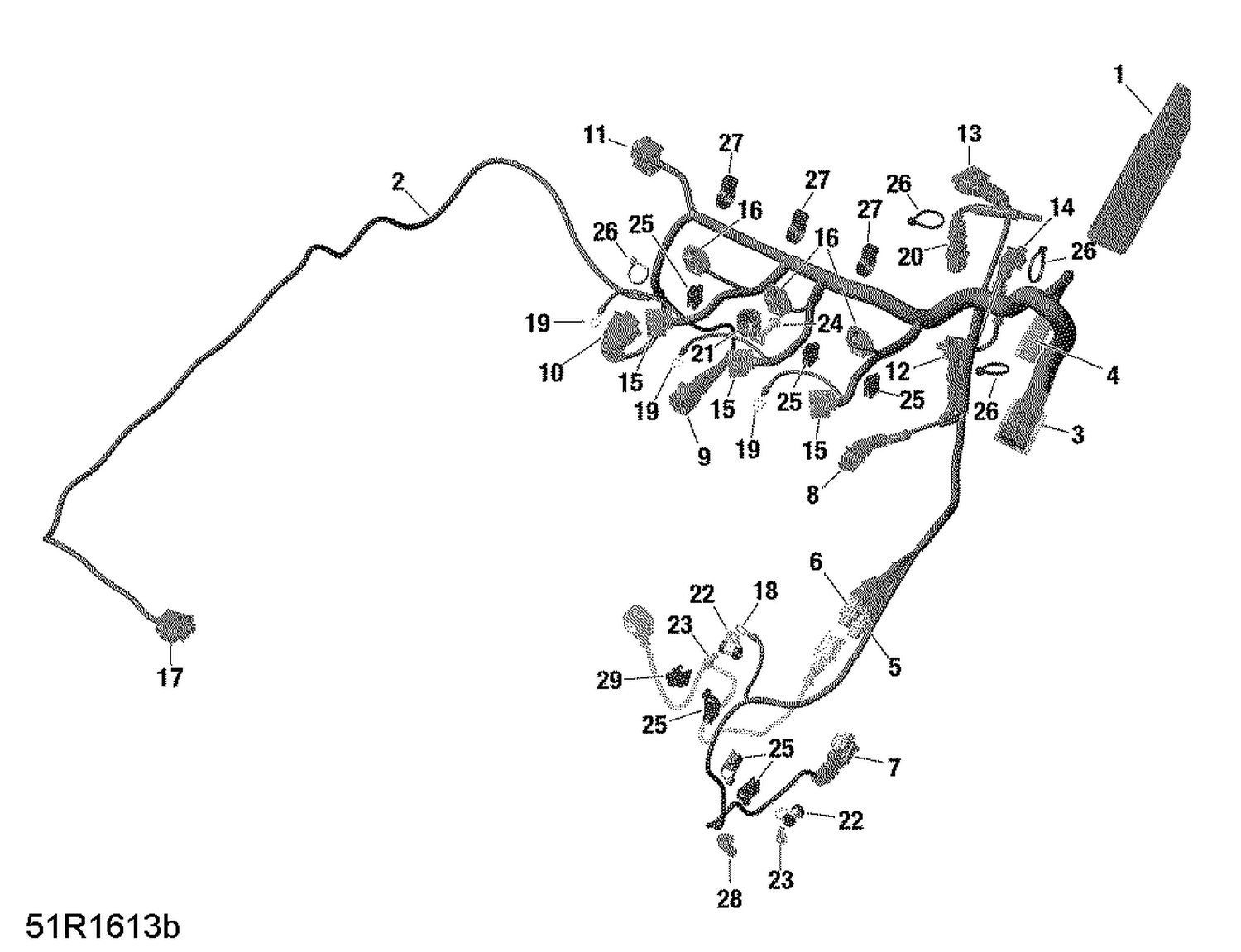

| Ref | Part Number | Description |
|---|
| 3 |
Not |
Available As Spare Part - Connector ECU |
| 4 |
Not |
Available As Spare Part - Connector HIC |
| 5 |
Not |
Available As Spare Part - Connector CPS |
| 6 |
Not |
Available As Spare Part - Connector KNOCK |
| 7 |
Not |
Available As Spare Part - Connector GBPS |
| 8 |
Not |
Available As Spare Part - Connector CTS |
| 9 |
Not |
Available As Spare Part - Connector OPS |
| 10 |
Not |
Available As Spare Part - Connector CAPS |
| 11 |
Not |
Available As Spare Part - Connector ETC |
| 12 |
Not |
Available As Spare Part - Connector CSV |
| 13 |
Not |
Available As Spare Part - Connector MAPTS |
| 14 |
Not |
Available As Spare Part - Connector EVAP |
| 15 |
Not |
Available As Spare Part - Connector COIL 1-3 |
| 16 |
Not |
Available As Spare Part - Connector INJ 1-3 |
| 17 |
Not |
Available As Spare Part - Connector AAPTS |
| 18 |
Not |
Available As Spare Part - Connector GND |
| 19 |
Not |
Available As Spare Part - Connector GND |
| 20 |
420666780 |
Connector CSV |
| 21 |
420851493 |
Cable Clamp |
| 22 |
420853414 |
Clamp |
| 23 |
420440147 |
Hex. Flange Screw M6 X 12 |
| 24 |
420641588 |
Torx Flange Screw M6 X 16 |
| 25 |
420951650 |
Cable Clamp 150mm |
| 26 |
420866714 |
Tie Rap |
| 27 |
420866716 |
Tie-Rap |
| 28 |
420951341 |
Tie-Rap With Mount |
