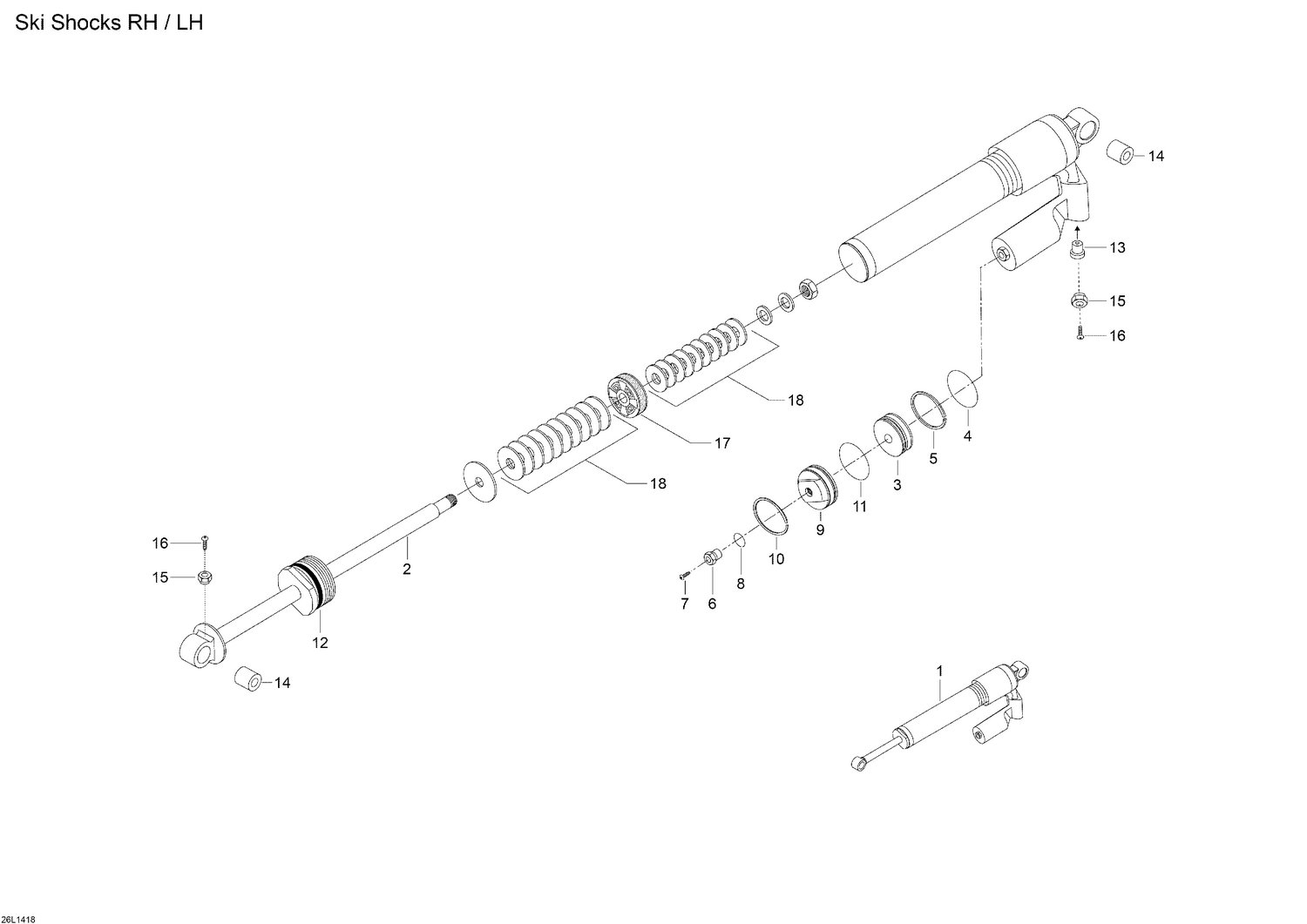

07- Ski Shocks

07- Ski Shocks

Parts (75)

RefPart NumberDescription
1 505073299 Front Shock RH
1 505073300 Front Shock LH
2 619300175 Rod Assy
3 Not Available As Spare Part - Floating Piston
4 415093807 O-Ring
5 415093806 Piston Ring
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 619300009 Seal Carrier Ass'y
10 619300006 Stop Ring
11 415093804 O-Ring
12 Not Available As Spare Part - Seal Carrier Ass'y
13 Not Available As Spare Part - Valve Ass´y
14 619300028 Rubber Bush
15 505072753 Adjustment Knob
16 250000644 Allen Screw M3 X 0.5 X 10 This part replaces 205031060.
17 Not Available As Spare Part - Piston 40mm
18 230029 Shim 40/46 mm, 20 x 0,114
18 230030 Shim 40/46 mm, 20 x 0,152
18 230031 Shim 40/46 mm, 20 x 0,203
18 230032 Shim 40/46 mm, 20 x 0,254
18 230033 Shim 40/46 mm, 34 x 0,114
18 230034 Shim 40/46 mm, 34 x 0,152
18 230035 Shim 40/46 mm, 34 x 0,203
18 230036 Shim 40/46 mm, 34 x 0,254
18 230037 Shim 40/46 mm, 36 x 0,114
18 230040 Shim 40/46 mm, 38 x 0,152
18 230041 Shim 40/46 mm, 38 x 0,203
18 230042 Shim 40/46 mm, 38 x 0,254
18 230082 Shim 40/46 mm, 32 x 0,114
18 503189038 Shim 40/46 mm, 36 x 0,254
18 619300022 Shim 40/46 mm, 32 x 0,305
18 619300056 Shim 40/46 mm, 30 x 0,305
18 619300059 Shim 40/46 mm, 32 x 0,254
18 619300060 Shim 40/46 mm, 17 x 0,114
18 619300067 Shim 40/46 mm, 18 x 0,152
18 619300068 Shim 40/46 mm, 18 x 0,114
18 619300069 Shim 40/46 mm, 17 x 0,203
18 619300070 Shim 40/46 mm, 34 x 0,305
18 619300095 Shim 40/46 mm, 24 x 0,254
18 619300097 Shim 40/46 mm, 20 x 0,305
18 619300098 Shim 40/46 mm, 22 x 0,203
18 619300099 Shim 40/46 mm, 26 x 0,254
18 619300100 Shim 40/46 mm, 26 x 0,305
18 619300101 Shim 40/46 mm, 28 x 0,114
18 619300102 Shim 40/46 mm, 28 x 0,203
18 619300103 Shim 40/46 mm, 28 x 0,254
18 619300104 Shim 40/46 mm, 30 x 0,152
18 619300105 Shim 40/46 mm, 36 x 0,305
18 619300106 Shim 40/46 mm, 38 x 0,305
18 619300112 Shim 40/46 mm, 40 x 0,203
18 619300113 Shim 40/46 mm, 30 x 0,254
18 619300134 Shim 40/46 mm, 22 x 0,254
18 619300137 Shim 40/46 mm, 32 x 0,152
18 619300138 Shim 40/46 mm, 32 x 0,203
18 619300140 Shim 40/46 mm, 22 x 0,152
18 619300141 Shim 40/46 mm, 26 x 0,152
18 619300142 Shim 40/46 mm, 36 x 0,203
18 619300143 Shim 40/46 mm, 22 x 0,114
18 619300144 Shim 40/46 mm, 22 x 0,305
18 619300145 Shim 40/46 mm, 24 x 0,114
18 619300146 Shim 40/46 mm, 24 x 0,152
18 619300147 Shim 40/46 mm, 24 x 0,203
18 619300148 Shim 40/46 mm, 24 x 0,305
18 619300149 Shim 40/46 mm, 26 x 0,114
18 619300150 Shim 40/46 mm, 26 x 0,203
18 619300151 Shim 40/46 mm, 28 x 0,152
18 619300152 Shim 40/46 mm, 28 x 0,305
18 619300153 Shim 40/46 mm, 30 x 0,114
18 619300154 Shim 40/46 mm, 30 x 0,203
18 619300155 Shim 40/46 mm, 36 x 0,152
18 619300157 Shim 40/46 mm, 40 x 0,152
18 619300158 Shim 40/46 mm, 40 x 0,254
18 Not Available As Spare Part - Shim 40/46 mm, 17 x 0,152
