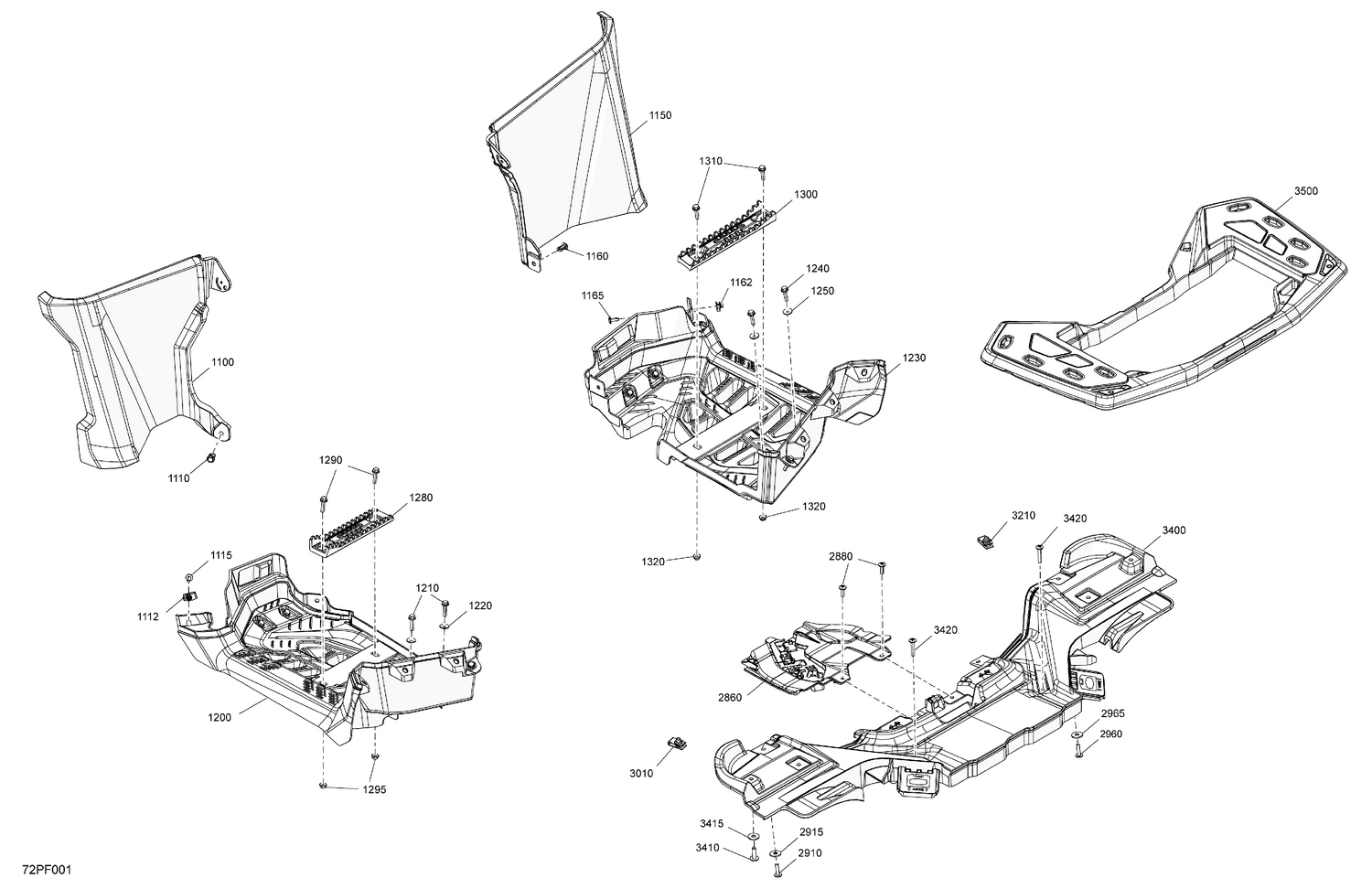

07- Body - Rear Section
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1100 | 705017657 | LH Upper Footstep |
| 1110 | 293150230 | Tuflok Plastic Rivet |
| 1112 | 250100198 | Panel Nut M6 X 1.0 |
| 1115 | 250000717 | Torx Head Screw M6 X 16 |
| 1150 | 705017659 | RH Upper Footstep |
| 1160 | 293150230 | Tuflok Plastic Rivet |
| 1162 | 250100198 | Panel Nut M6 X 1.0 |
| 1165 | 250000717 | Torx Head Screw M6 X 16 |
| 1200 | 705012789 | LH Footboard |
| 1210 | 250000841 | Hex Flange Screw M6 X 25 |
| 1220 | 234062670 | Stainless Steel Flat Washer |
| 1230 | 705012790 | RH Footboard |
| 1240 | 250000841 | Hex Flange Screw M6 X 25 |
| 1250 | 234062670 | Stainless Steel Flat Washer |
| 1280 | 705013651 | Footrest |
| 1290 | 250000841 | Hex Flange Screw M6 X 25 |
| 1295 | 233161414 | Hex. Flange Nut M6 |
| 1300 | 705013651 | Footrest |
| 1310 | 250000841 | Hex Flange Screw M6 X 25 |
| 1320 | 233161414 | Hex. Flange Nut M6 |
| 2860 | 709001696 | Panel |
| 2880 | 250001257 | Screw Torx M6 X 20 |
| 2910 | 250001000 | Torx-Truss M/S M6 X 25 |
| 2915 | 234062410 | Flat Washer 6 mm |
| 2960 | 250001000 | Torx-Truss M/S M6 X 25 |
| 2965 | 234062410 | Flat Washer 6 mm |
| 3010 | 250100198 | Panel Nut M6 X 1.0 |
| 3210 | 250100198 | Panel Nut M6 X 1.0 |
| 3400 | 705018518 | Rear Multi Purpose Support |
| 3410 | 250001257 | Screw Torx M6 X 20 |
| 3415 | 234062410 | Flat Washer 6 mm |
| 3420 | 250001258 | Screw Torx M6 X 35 |
