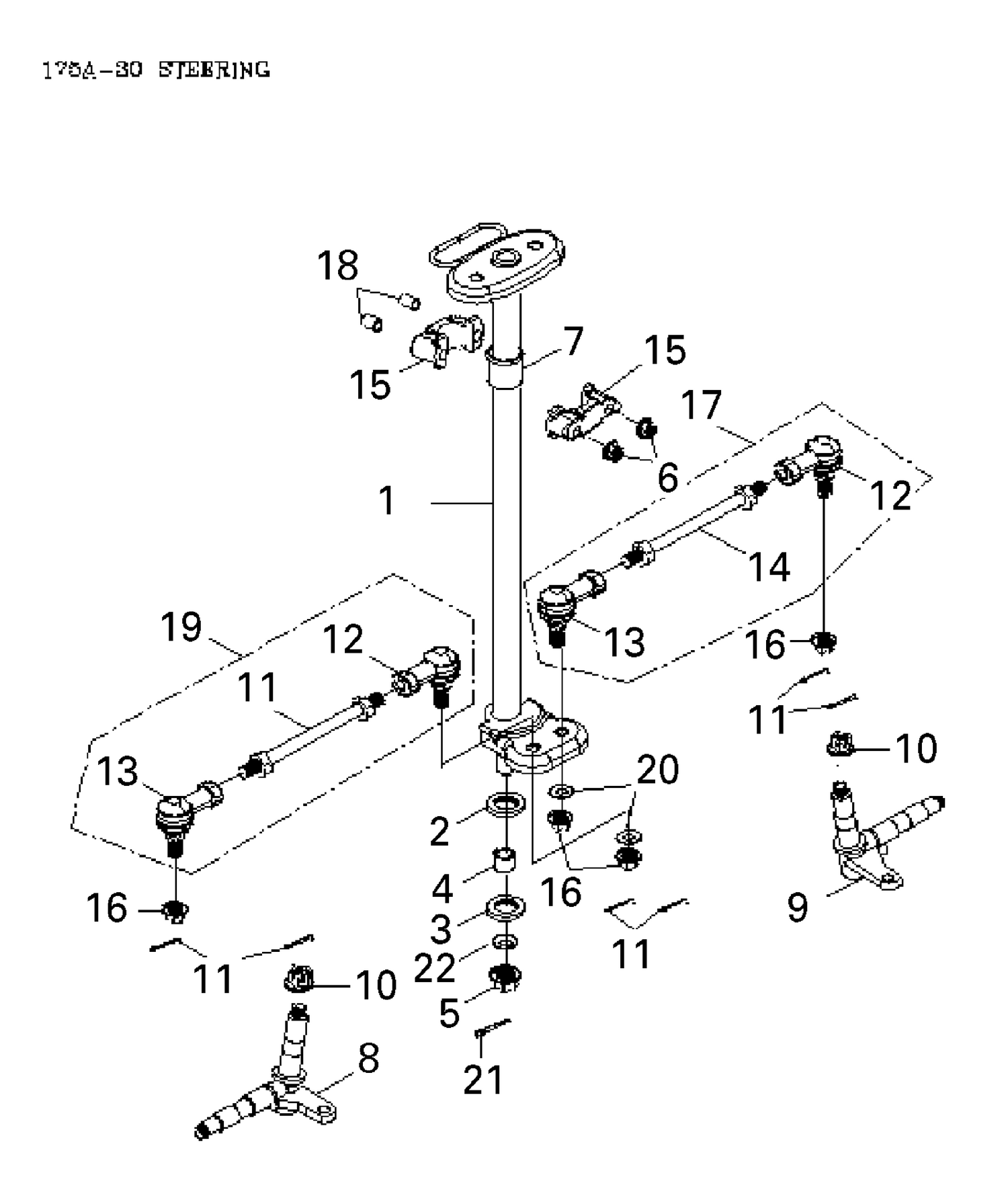

07- Steering System
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A51109155000 | STEERING SHAFT ASS'Y - Call your local BRP dealership |
| 2 | A9650018327 | OIL SEAL - Call your local BRP dealership |
| 3 | A9650022357 | OIL SEAL, 22 X 35 X 7 - Call your local BRP dealership |
| 4 | A44620145000 | Spacer Tube |
| 5 | A9035014000 | NYLON NUT M14 - Call your local BRP dealership |
| 6 | 233081416 | Hex. Flange Nut M8 This part replaces A9405008000. |
| 7 | A51114145000 | BUSH - Call your local BRP dealership |
| 8 | A44510145000 | LH Knuckle |
| 9 | A44520145000 | RH KNUCKLE - Call your local BRP dealership |
| 10 | A940521000014 | Scotch Flange Nut M10 |
| 11 | A9420120190 | COTTER PIN - Call your local BRP dealership |
| 12 | A44511145002 | LH Ball Joint |
| 13 | A44521145002 | BALL JOINT RIGHT - Call your local BRP dealership |
| 14 | A9100110200 | TIE ROD STUD BOLT - Call your local BRP dealership |
| 15 | A5111314500A | Steering Shaft Holder |
| 16 | V9035010000010LL | Nylon Nut M10 This part replaces A9035010000G. |
| 17 | A44500145002 | RH Link Ass'y |
| 18 | A51115145000 | HOLDER SPACER COLLAR - Call your local BRP dealership |
| 19 | A44501145002 | LH Link Ass'y |
| 20 | A941051022025G | PLAIN WASHER - Call your local BRP dealership |
| 21 | A9420130320 | COTTER PIN - Call your local BRP dealership |
