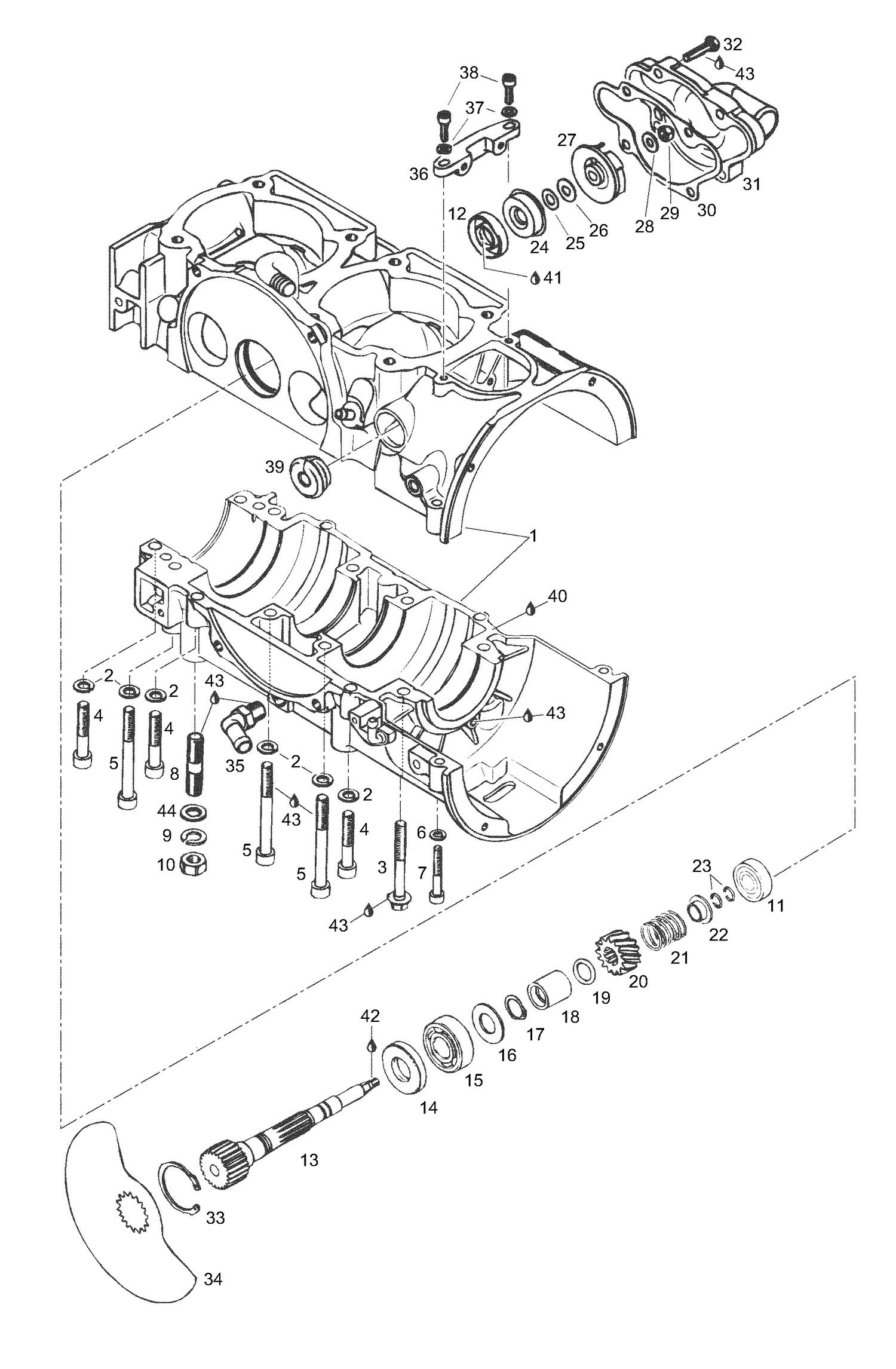

| Ref | Part Number | Description |
|---|
| 2 |
20014 |
Lock washer |
| 3 |
420841307 |
Hex. Collar Screw M8 X 65 This part replaces 420841306. |
| 4 |
420841561 |
Allen screw M8x45 |
| 5 |
420841831 |
ALLEN SCREW M8 X 75 - Call your local BRP dealership |
| 6 |
20052 |
Lock washer |
| 7 |
420241816 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 8 |
420940704 |
STUD M10 - Call your local BRP dealership |
| 9 |
420945753 |
Lock washer |
| 10 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 11 |
420932797 |
Bearing 6201-Z |
| 12 |
420850711 |
Anneau Etanche *Seal-Oil This part replaces 420850710. |
| 13 |
420837243 |
Rotary valve shaft |
| 14 |
420930580 |
OIL SEAL - Call your local BRP dealership |
| 15 |
293350051 |
BALL BEARING - Call your local BRP dealership This part replaces 405406400. |
| 16 |
420227439 |
SHIM - Call your local BRP dealership |
| 17 |
420845450 |
SNAP RING - Call your local BRP dealership |
| 18 |
420847282 |
SPACER BUSHING - Call your local BRP dealership |
| 19 |
293300024 |
O-ring This part replaces 420831500. |
| 20 |
420935736 |
Roue Dentee 14D*Sprocket 14Th This part replaces 420935735. |
| 21 |
420938810 |
SPRING - Call your local BRP dealership |
| 22 |
420827430 |
SPRING SEAT - Call your local BRP dealership |
| 23 |
420845160 |
CIRCLIP - Call your local BRP dealership |
| 24 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 25 |
420227945 |
Thrust washer |
| 26 |
420227155 |
Friction washer |
| 27 |
420922036 |
WATER IMPELLER - Call your local BRP dealership |
| 28 |
224061121 |
Flat Washer This part replaces 420244211. |
| 29 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 30 |
420931355 |
Gasket |
| 31 |
420922551 |
Pump housing |
| 32 |
420240034 |
Hex. Screw M6 x 25 This part replaces 420240031. |
| 33 |
420945880 |
Lock Ring This part replaces 420845260. |
| 34 |
420924509 |
Rotary valve 147 degr. |
| 35 |
420922242 |
Angular Tube This part replaces 420922245. |
| 36 |
420851280 |
Pick up fixation |
| 37 |
20002 |
Washer |
| 38 |
420441341 |
NEEDS DESCRIPTION This part replaces 420240181. |
| 39 |
420860965 |
Cable grommet |
| 40 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
| 42 |
219703000 |
Sealant Loctite 648 This part replaces 420899788. |
| 43 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
