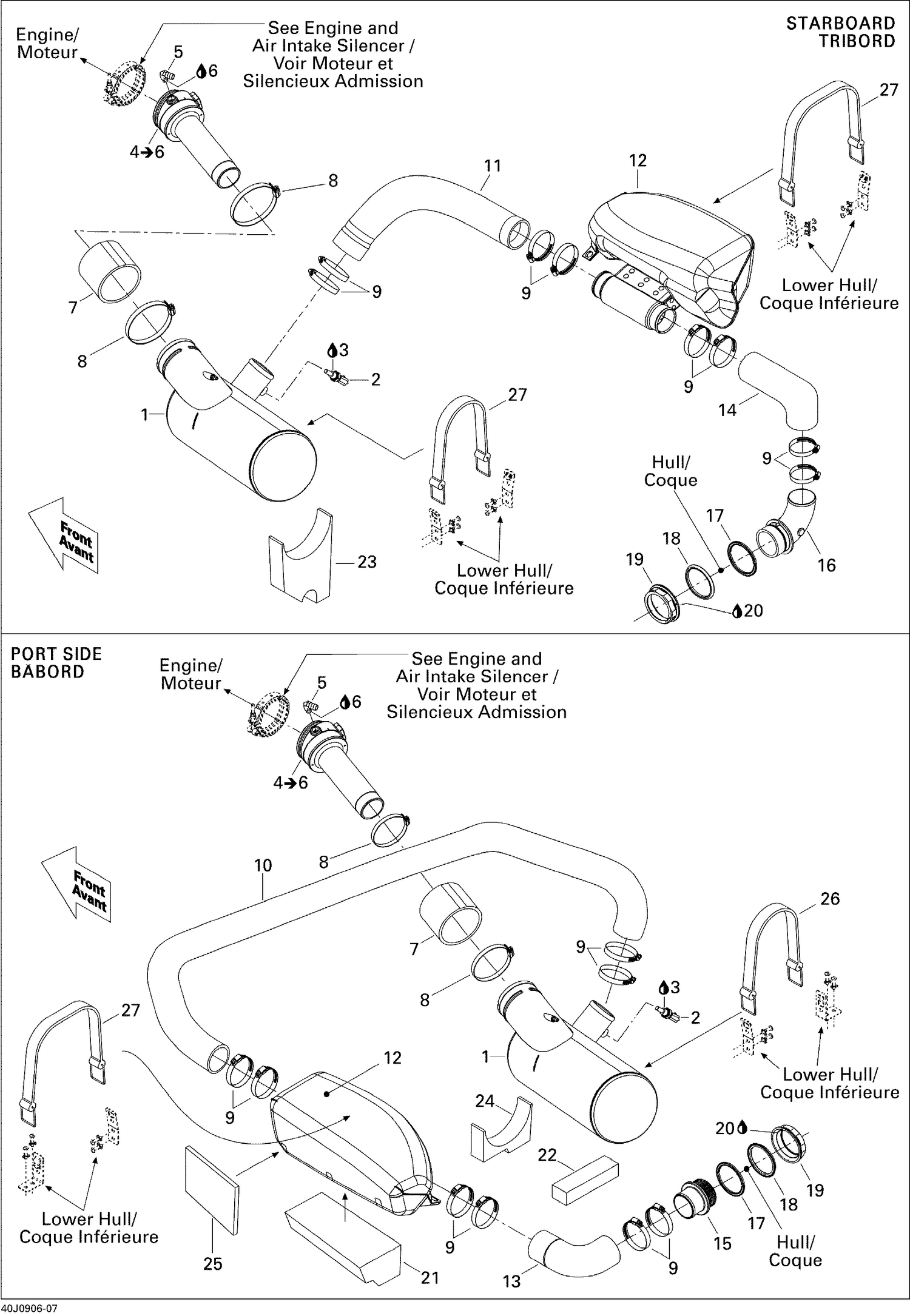

| Ref | Part Number | Description |
|---|
| 1 |
274001350 |
MUFFLER_EXHAUST - Call your local BRP dealership |
| 2 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 5 |
293700023 |
Elbow Fitting 90° |
| 6 |
219704454 |
Was 293800013 Loctite 56765 |
| 7 |
274001348 |
Hose |
| 8 |
293650202 |
Gear Clamp |
| 9 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 10 |
204340441 |
EXHAUST HOSE - Call your local BRP dealership |
| 11 |
204340436 |
EXHAUST HOSE - Call your local BRP dealership |
| 12 |
274001045 |
RH Resonator |
| 13 |
204340468 |
EXHAUST HOSE - Call your local BRP dealership |
| 14 |
204340467 |
Exhaust Hose |
| 15 |
274001391 |
Exhaust Hose, Outlet This part replaces 274000843. |
| 16 |
274001389 |
Exhaust Hose, Outlet This part replaces 204340131. |
| 17 |
293250041 |
GASKET - Call your local BRP dealership |
| 18 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 19 |
274000224 |
Nut 72 mm |
| 20 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 21 |
204340475 |
Resonator Support |
| 22 |
204340443 |
RESONATOR SUPPORT - Call your local BRP dealership |
| 23 |
204340504 |
Muffler Support |
| 24 |
204340522 |
MUFFLER SUPPORT - Call your local BRP dealership |
| 25 |
204560191 |
NEOPRENE PAD - Call your local BRP dealership |
| 26 |
293850093 |
Fuel Tank Strap This part replaces 293850067. |
