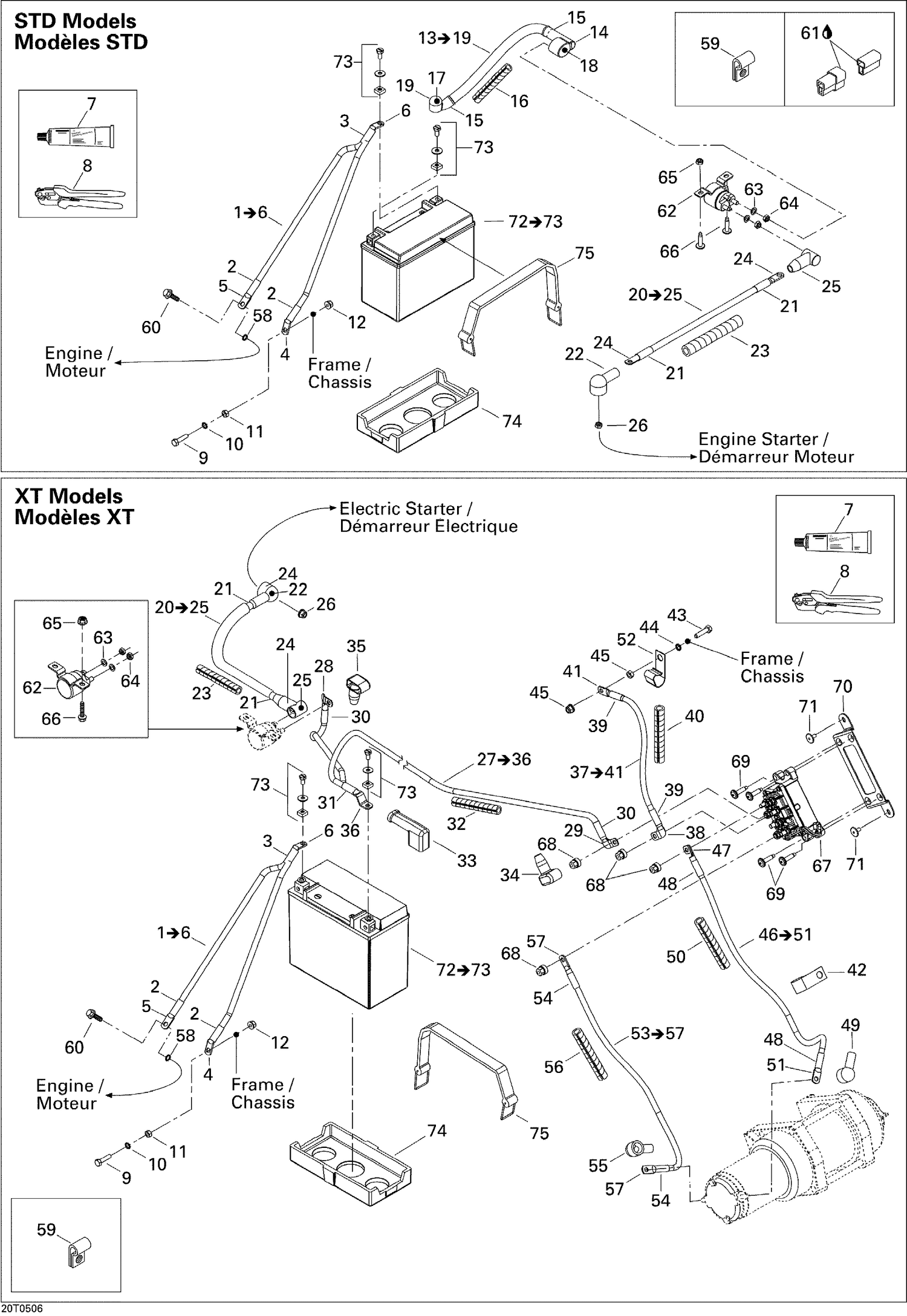

10- Electrical System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 3 | 275500578 | Shrink Tubing |
| 4 | 710000540 | Open Barrel |
| 5 | 710000530 | Open Barrel |
| 6 | 710000539 | Open Barrel |
| 7 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 8 | 529035730 | Crimp Plier |
| 9 | 207162544 | Hex. Screw M6 X 25 |
| 10 | 234461608 | External Serrated Lock Washer 6 mm |
| 11 | 232061414 | Hex. Nut M6 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 21 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 22 | 710000496 | PROTECTOR CAP - Call your local BRP dealership |
| 23 | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 24 | 710000530 | Open Barrel |
| 25 | 710000526 | Protector Cap |
| 26 | 232561600 | Hex. Elastic Stop Nut M6 |
| 58 | 234461608 | External Serrated Lock Washer 6 mm |
| 59 | 414227300 | Clip |
| 60 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 61 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 62 | 515176011 | Starter Relay |
| 63 | 234161601 | Lock Washer Helical M6 |
| 64 | 232061600 | Hex. Nut M6 |
| 65 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 66 | 207661644 | Hex. Flange Screw M6 X 16 |
| 73 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 74 | 710000279 | INSULATOR PAD - Call your local BRP dealership |
