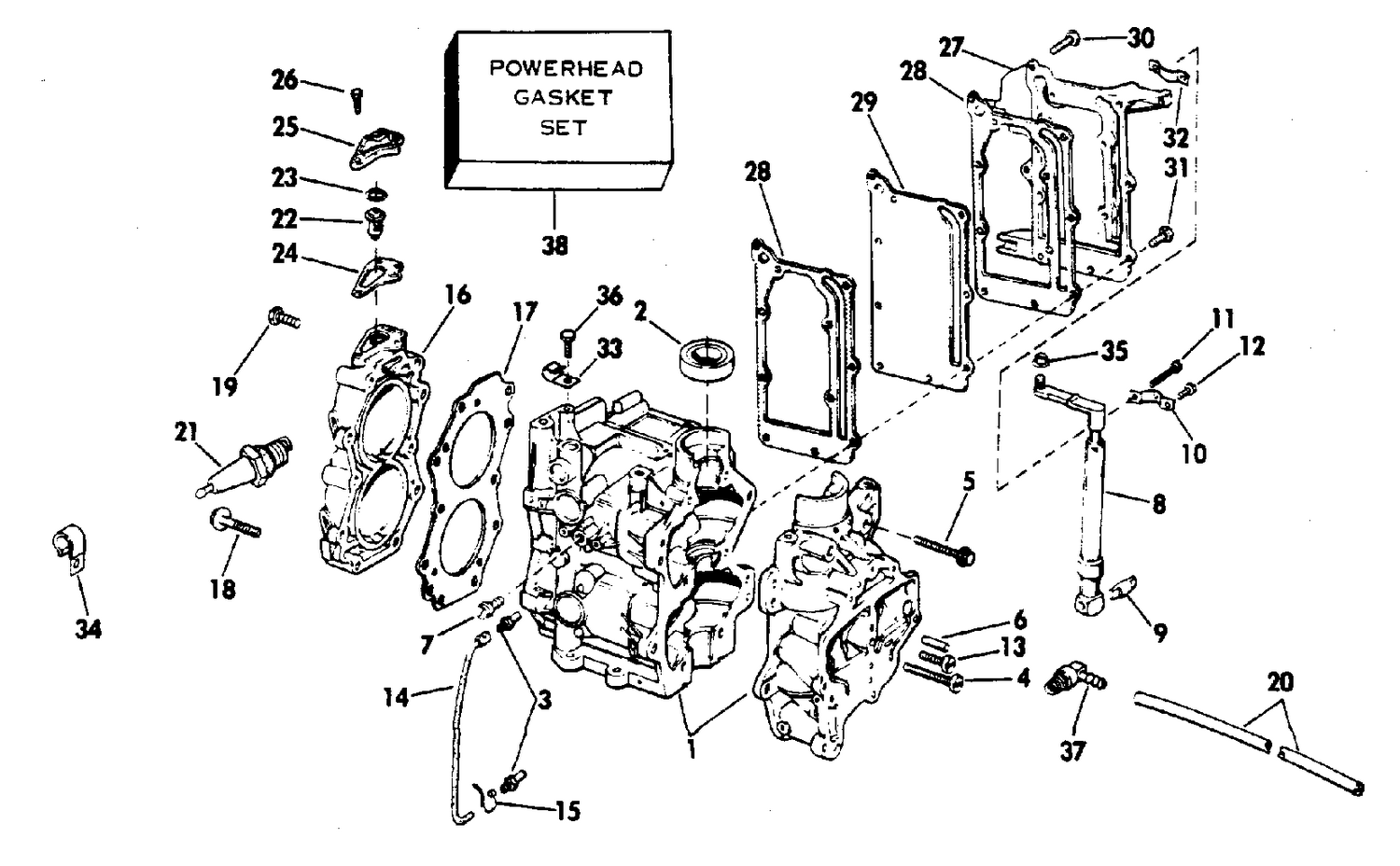

| Ref | Part Number | Description |
|---|
| 1 |
0387722 |
CYLINDER & C' CASE ASSY. |
| 2 |
0312389 |
OIL SEAL |
| 4 |
0314951 |
SCREEN, Mfld. to c'case |
| 5 |
0325115 |
SCREW, Oil tank/EMM mount This part replaces 0321483. |
| 8 |
0311286 |
LEVER, Armature control |
| 9 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 12 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 13 |
0306483 |
SCREW, Clamp to lower cover |
| 14 |
HOSE, |
Oil return |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
0325163 |
CYLINDER HEAD |
| 17 |
0306204 |
GASKET, Clyinder head |
| 18 |
0308728 |
SCREW |
| 19 |
0306049 |
SCREW |
| 20 |
0321887 |
HOSE, Indicator |
| 21 |
0389471 |
SPARK PLUG, Champion L78 |
| 21 |
0390141 |
SPARK PLUG, Ac v40ffk |
| 22 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 23 |
0310058 |
GASKET, Thermostat |
| 24 |
0311145 |
GASKET, Cap |
| 25 |
0312714 |
CAP, Thermostat |
| 27 |
0323454 |
EXHAUST COVER, Outer |
| 28 |
0306201 |
GASKET, Cover |
| 29 |
0306202 |
COVER, Exhaust, inner |
| 30 |
0132346 |
SCREW, Cover |
| 32 |
0303109 |
BEARING CLAMP, INNER |
| 34 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0316386. |
| 35 |
0307841 |
BUSHING, Control lever |
