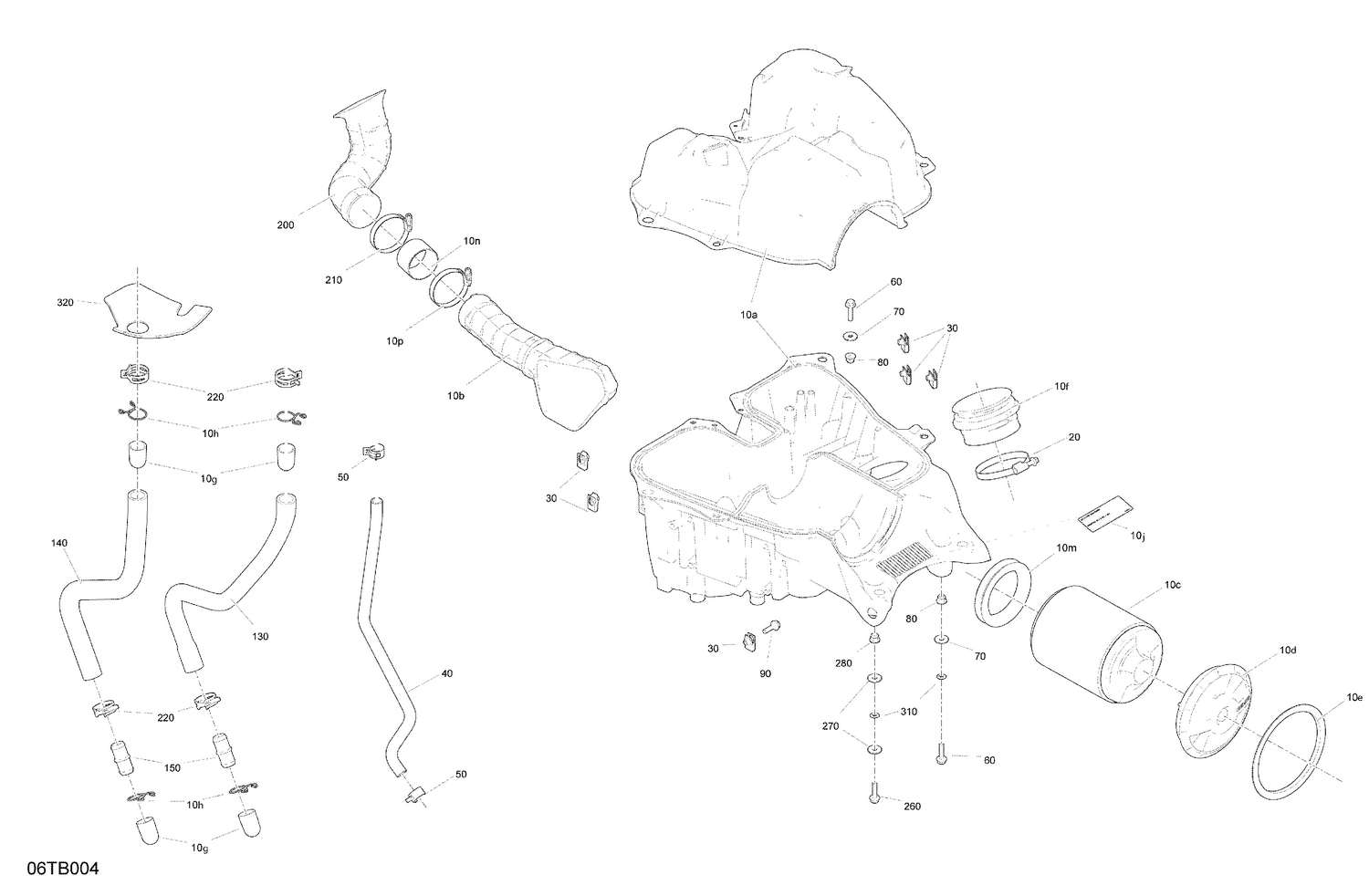

02- Engine - Air Intake
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 707800501 | Air Intake Hose |
| 10c | 707800371 | Air Filter |
| 10d | 715002174 | Intake Silencer Cap Ass'y |
| 10e | 293300175 | Gasket |
| 10f | 707800804 | Intake Adaptor |
| 10g | 707800080 | Drain Tube |
| 10h | 707800278 | Retainer Clip |
| 10j | 707800373 | Air Filter Maintenance Decal |
| 10m | 707800470 | Air Filter Adaptor |
| 10n | 707800504 | Ring |
| 10p | 293650077 | Norma Clamp |
| 20 | 293650091 | Norma Clamp |
| 30 | 250100198 | Panel Nut M6 X 1.0 |
| 40 | 707800453 | Vent Hose |
| 50 | 293650110 | Norma Clamp |
| 60 | 207662544 | Hex. Flange Screw M6 X 25 |
| 70 | 250200082 | Flat Washer |
| 80 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 90 | 207662044 | Hex. Flange Screw M6 X 20 |
| 130 | 707800671 | Formed Hose |
| 140 | 707800672 | Formed Hose This part replaces 707800884. |
| 150 | 270001073 | Straight Fitting This part replaces 707800512. |
| 200 | 707800528 | Air Intake Front |
| 210 | 293650090 | Norma Gear Clamp |
| 220 | 293650109 | Norma Spring Clamp |
| 260 | 207662544 | Hex. Flange Screw M6 X 25 |
| 270 | 250200082 | Flat Washer |
| 280 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 310 | 732610072 | Push Nut |
