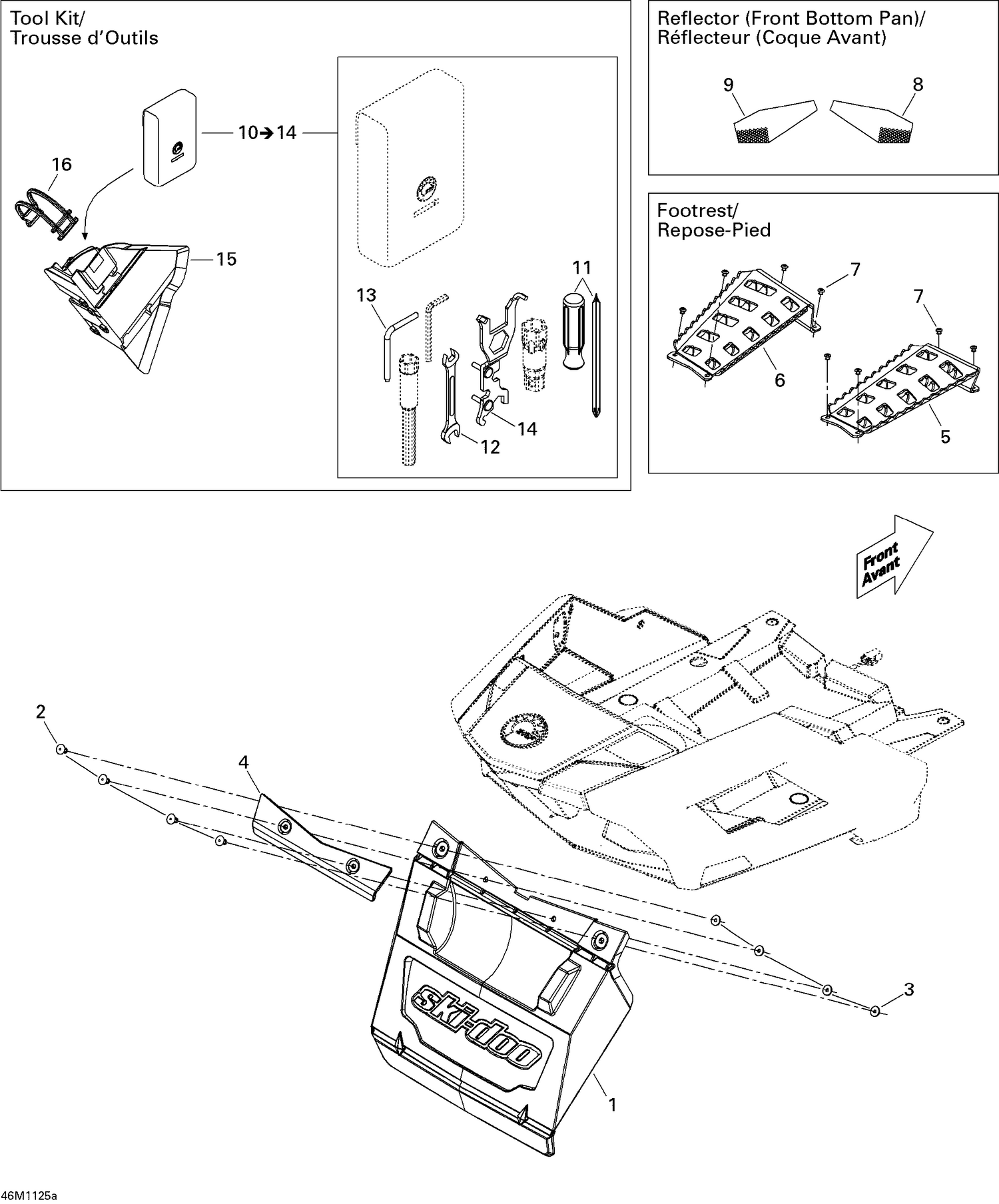

| Ref | Part Number | Description |
|---|
| 1 |
520000659 |
Snow Guard |
| 2 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3 |
517124300 |
Washer |
| 4 |
520000751 |
Reinforcement |
| 5 |
520000887 |
RH Footrest |
| 6 |
520000888 |
LH Footrest |
| 7 |
390402200 |
Pop Rivet 3/16" |
| 8 |
520000759 |
RH FRONT REFLECTOR - Call your local BRP dealership |
| 9 |
520000760 |
LH FRONT REFLECTOR - Call your local BRP dealership |
| 11 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 12 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 13 |
520001028 |
SPACING TOOL - Call your local BRP dealership |
| 14 |
520000988 |
WRENCH SUSPENSION - Call your local BRP dealership |
| 15 |
520000720 |
TOOL KIT RACK - Call your local BRP dealership |
