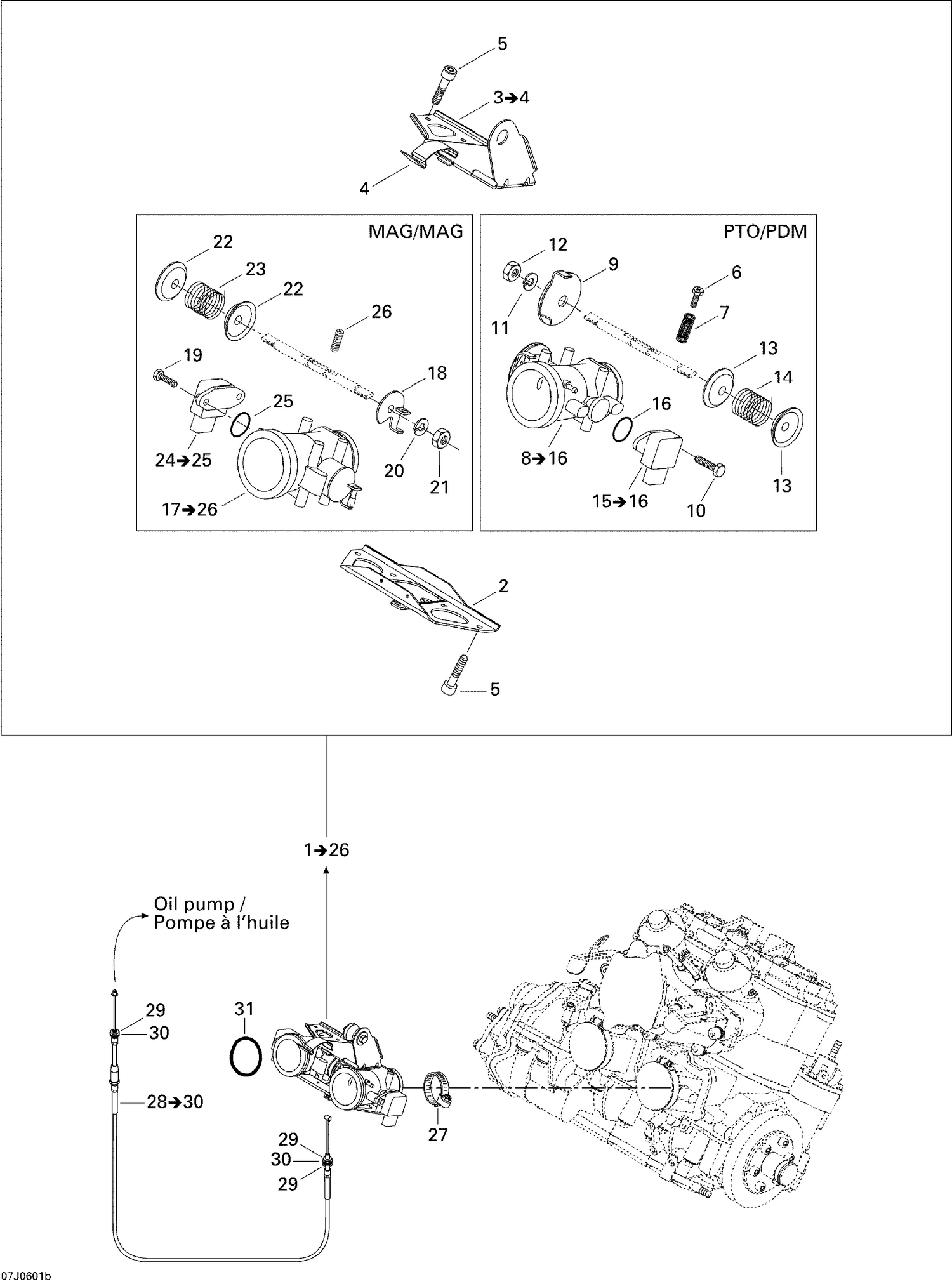

01- Engine 2
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 270600069 | LOWER SUPPORT - Call your local BRP dealership |
| 4 | 270600073 | LATCH BRACKET - Call your local BRP dealership |
| 5 | 205051060 | Socket Head Screw M5 X 10 |
| 6 | 270600074 | ADJUSTER SCREW - Call your local BRP dealership |
| 7 | 270600075 | Spring |
| 9 | 270600077 | Throttle Lever Ass'y |
| 10 | 270600078 | POTENTIOMETER SCREW M4 - Call your local BRP dealership |
| 11 | 234161601 | Lock Washer Helical M6 |
| 12 | 232061600 | Hex. Nut M6 |
| 13 | 270600079 | GUIDE SPRING - Call your local BRP dealership |
| 14 | 270600080 | Spring |
| 16 | 270000544 | O-Ring |
| 18 | 270600082 | Pick-Up Lever |
| 19 | 270600078 | POTENTIOMETER SCREW M4 - Call your local BRP dealership |
| 20 | 234161601 | Lock Washer Helical M6 |
| 21 | 232061600 | Hex. Nut M6 |
| 22 | 270600079 | GUIDE SPRING - Call your local BRP dealership |
| 23 | 270600083 | Spring |
| 25 | 270000544 | O-Ring |
| 26 | 270600084 | IDLE SCREW - Call your local BRP dealership |
| 27 | 293650079 | Norma Clamp |
| 29 | 232160600 | Hex. Nut M6 |
| 30 | 234061600 | Stainless Flat Washer M6 |
