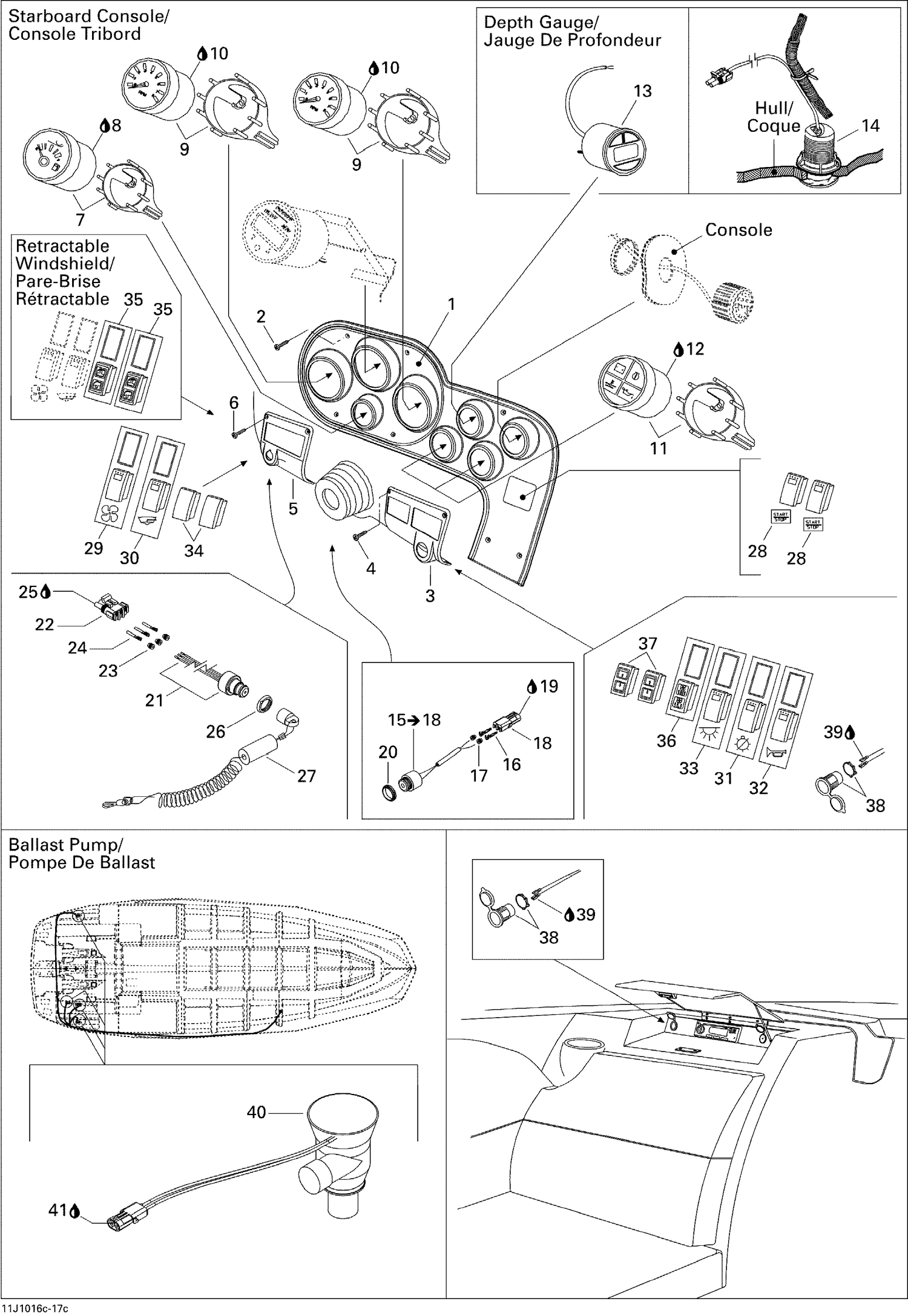

| Ref | Part Number | Description |
|---|
| 1 |
204471334 |
Fascia |
| 2 |
205342560 |
Socket Head Screw M4 X 25 |
| 3 |
204471173 |
RH Panel Switch |
| 4 |
250000092 |
Phillips Tapping Screw 3.5 X 19 |
| 5 |
204471174 |
LH PANEL SWITCH - Call your local BRP dealership |
| 6 |
250000092 |
Phillips Tapping Screw 3.5 X 19 |
| 7 |
204471163 |
FUEL GAUGE - Call your local BRP dealership |
| 8 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 9 |
204471162 |
Tachometer Gauge |
| 10 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 11 |
204471201 |
ENGINE WARNING GAUGE - Call your local BRP dealership |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 13 |
204471157 |
Depth Gauge |
| 14 |
204471292 |
Depth Sensor |
| 16 |
278000222 |
Male Terminal |
| 17 |
278000218 |
Wire Seal |
| 18 |
278000217 |
Female Housing, 2 Circuits |
| 19 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 20 |
278000707 |
Buzzer Nut |
| 21 |
278002773 |
Safety Switch This part replaces 278002325. |
| 22 |
278000273 |
Male Housing, 3 Circuits |
| 23 |
278000218 |
Wire Seal |
| 24 |
278000223 |
Female Terminal |
| 25 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 26 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 27 |
204471206 |
Safety Lanyard |
| 28 |
204471178 |
START/STOP SWITCH - Call your local BRP dealership |
| 29 |
204470011 |
VENTILATION SWITCH ASS'Y - Call your local BRP dealership |
| 30 |
204470099 |
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership |
| 31 |
204470100 |
LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 32 |
204470101 |
HORN SWITCH ASS'Y - Call your local BRP dealership |
| 33 |
204470102 |
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 36 |
204471166 |
HEATING SYSTEM SWITCH - Call your local BRP dealership |
| 37 |
204471165 |
BALLAST SWITCH - Call your local BRP dealership |
| 38 |
710001248 |
DC Outlet |
| 39 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 40 |
204471407 |
Ballast Pump |
