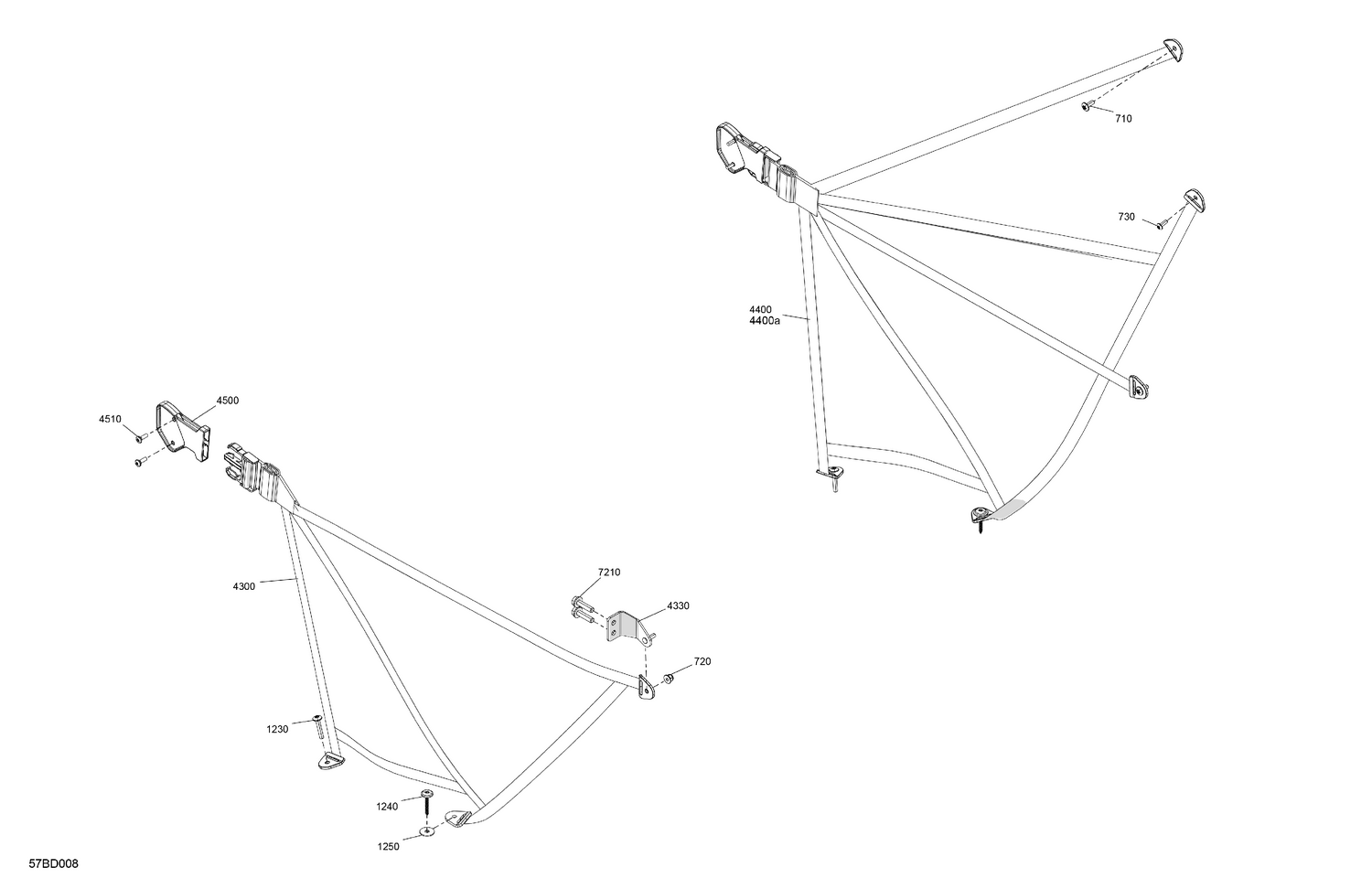

07- Body - Safety Net
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 710 | 250000717 | Torx Head Screw M6 X 16 |
| 720 | 233261494 | Hex. Flange Elastic Nut M6 |
| 730 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 1230 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1240 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 1250 | 250200162 | Flat Washer M6.6 X 22 |
| 4300 | 707900676 | LH Front Safety Net |
| 4330 | 705207778 | Net Attachement |
| 4400a | 707900049 | Upper Link |
| 4500 | 707900592 | Safety Net Link |
| 4510 | 250000720 | Torx Screw K50 X 16 |
