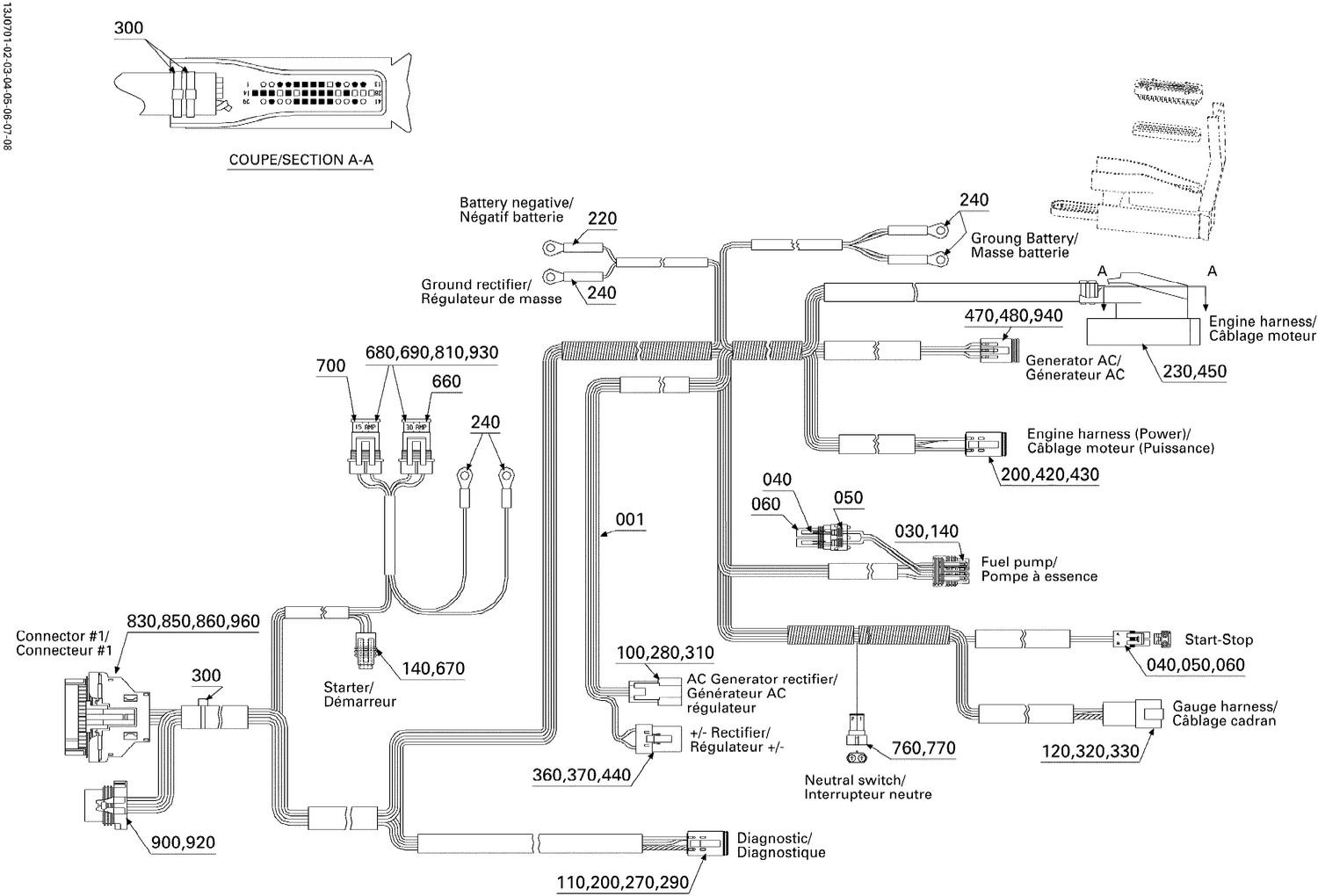

| Ref | Part Number | Description |
|---|
| 030 |
278001308 |
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership |
| 040 |
278000223 |
Female Terminal |
| 050 |
278000218 |
Wire Seal |
| 060 |
278000220 |
Male Connector, 2 Circuits |
| 100 |
515175823 |
Male Terminal |
| 110 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 120 |
278000631 |
Male Terminal |
| 140 |
278001114 |
Female Terminal |
| 200 |
278000632 |
Female Terminal |
| 220 |
278001392 |
Open Barrel Terminal |
| 230 |
278001751 |
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership |
| 240 |
278001392 |
Open Barrel Terminal |
| 270 |
293000052 |
Sealing Cap |
| 280 |
409207600 |
Male Lock, 3 Circuits |
| 290 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 300 |
293750002 |
Tie Wrap 142 mm |
| 310 |
278002378 |
Male Housing This part replaces 409207000. |
| 320 |
278001742 |
CONNECTOR 6 CAVITIES - Call your local BRP dealership |
| 330 |
278001744 |
SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 360 |
278001673 |
Female Terminal Housing, 2 Circuits |
| 370 |
278001671 |
Female Lock, 2 Circuits |
| 420 |
278000739 |
Male Connector, 4 Circuits |
| 430 |
278000738 |
Male Lock, 4 Circuits |
| 440 |
515175567 |
Female Terminal |
| 450 |
278001750 |
FEMALE TERMINAL - Call your local BRP dealership |
| 470 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 480 |
409207200 |
Female Lock |
| 660 |
409003900 |
Fuse, 20 Amperes |
| 670 |
278001113 |
Male Connector, 2 Circuits |
| 680 |
278001325 |
Fuse Holder |
| 690 |
710000357 |
Female Terminal |
| 700 |
278000343 |
Fuse, 15 Amperes |
| 760 |
409209400 |
Male Terminal Housing, 2 Circuits |
| 770 |
409012900 |
Male Terminal |
| 810 |
278001326 |
Fuse Holder Cap |
| 830 |
710000394 |
SEAL WIRE - Call your local BRP dealership |
| 850 |
710000395 |
FEMALE HOUSING - Call your local BRP dealership |
| 860 |
515175806 |
Female Terminal |
| 900 |
278000218 |
Wire Seal |
| 920 |
278001505 |
WIRE SEAL - Call your local BRP dealership |
| 930 |
278000805 |
Cushion |
| 940 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
