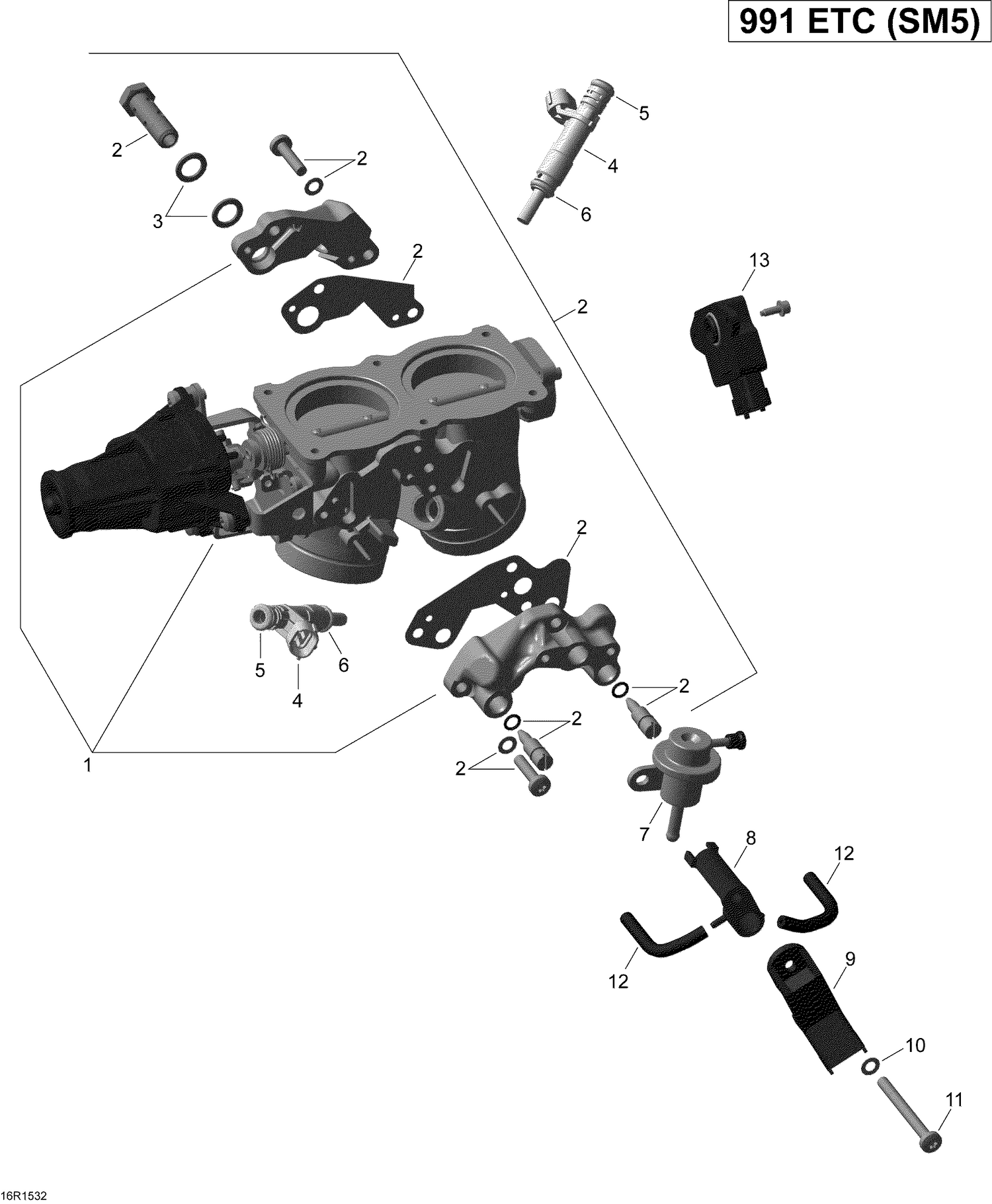

02- Throttle Body _16R1532
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420250016 | Aluminum Sealing Ring This part replaces 420250015. |
| 5 | 420631220 | O-Ring |
| 6 | 420431890 | O-Ring |
| 8 | 420460290 | Adapter |
| 9 | 270600040 | Pressure Sensor This part replaces 420274055. |
| 10 | 420845020 | SPRING WASHER - Call your local BRP dealership |
| 11 | 420240373 | ALLEN SCREW M6 X 60 - Call your local BRP dealership This part replaces 420240371. |
