Home / BRP / JOHNSON / 2004 / 40 / BJ40PL4SRS / THERMOSTAT

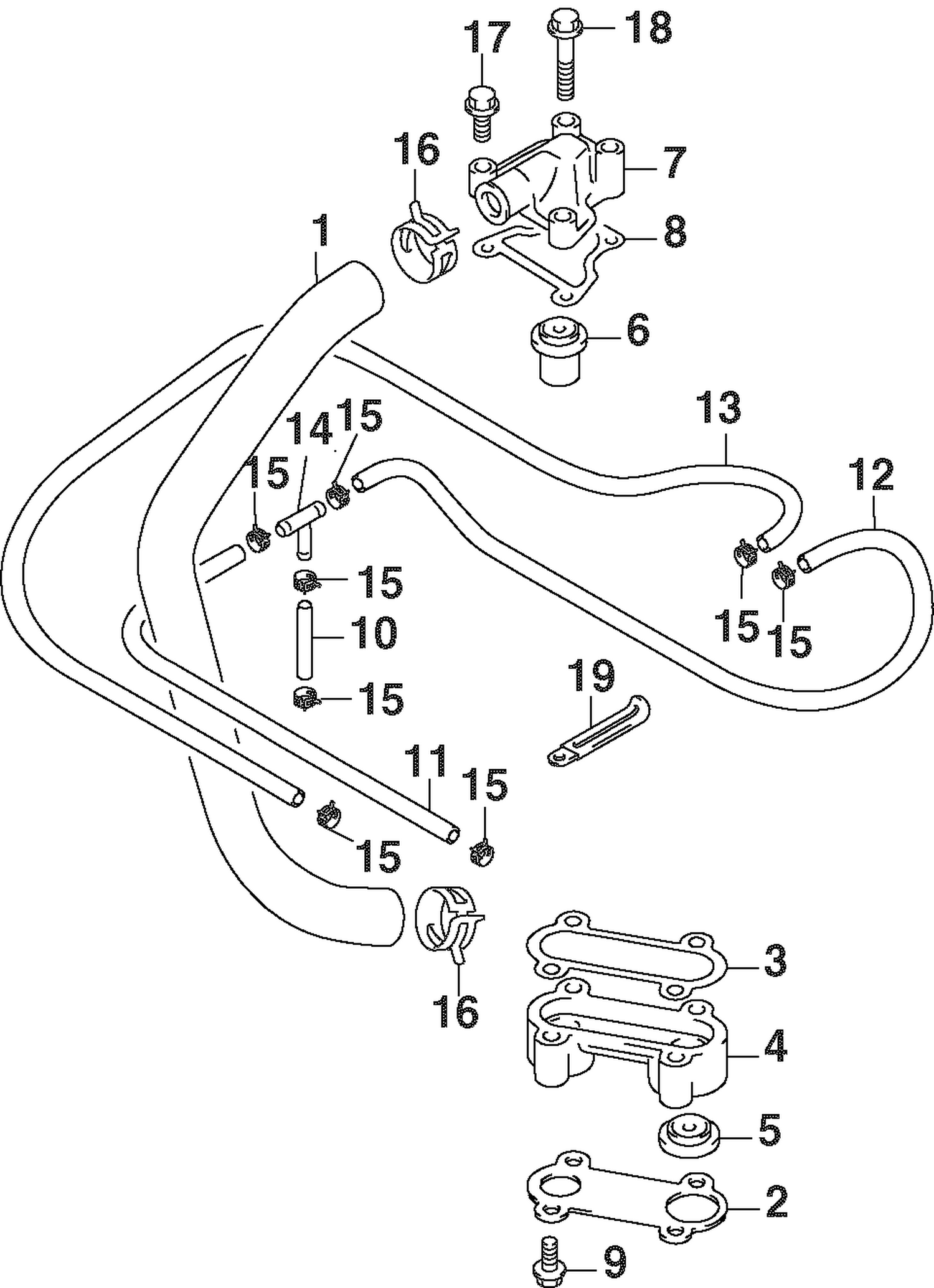

THERMOSTAT

THERMOSTAT

Parts (9)

RefPart NumberDescription
1 5032241 HOSE, Water return
2 5031425 COVER, WATER PRESS VALVE
4 5031427 CASE, WATER PRESS VALVE
5 5032471 VALVE, WATER PRESS
6 5031758 THERMOSTAT (60 Deg C)
7 5036476 Cover This part replaces 5031429.
9 5031211 BOLT (6X42mm)
16 5030581 CLAMP
18 5031079 BOLT
