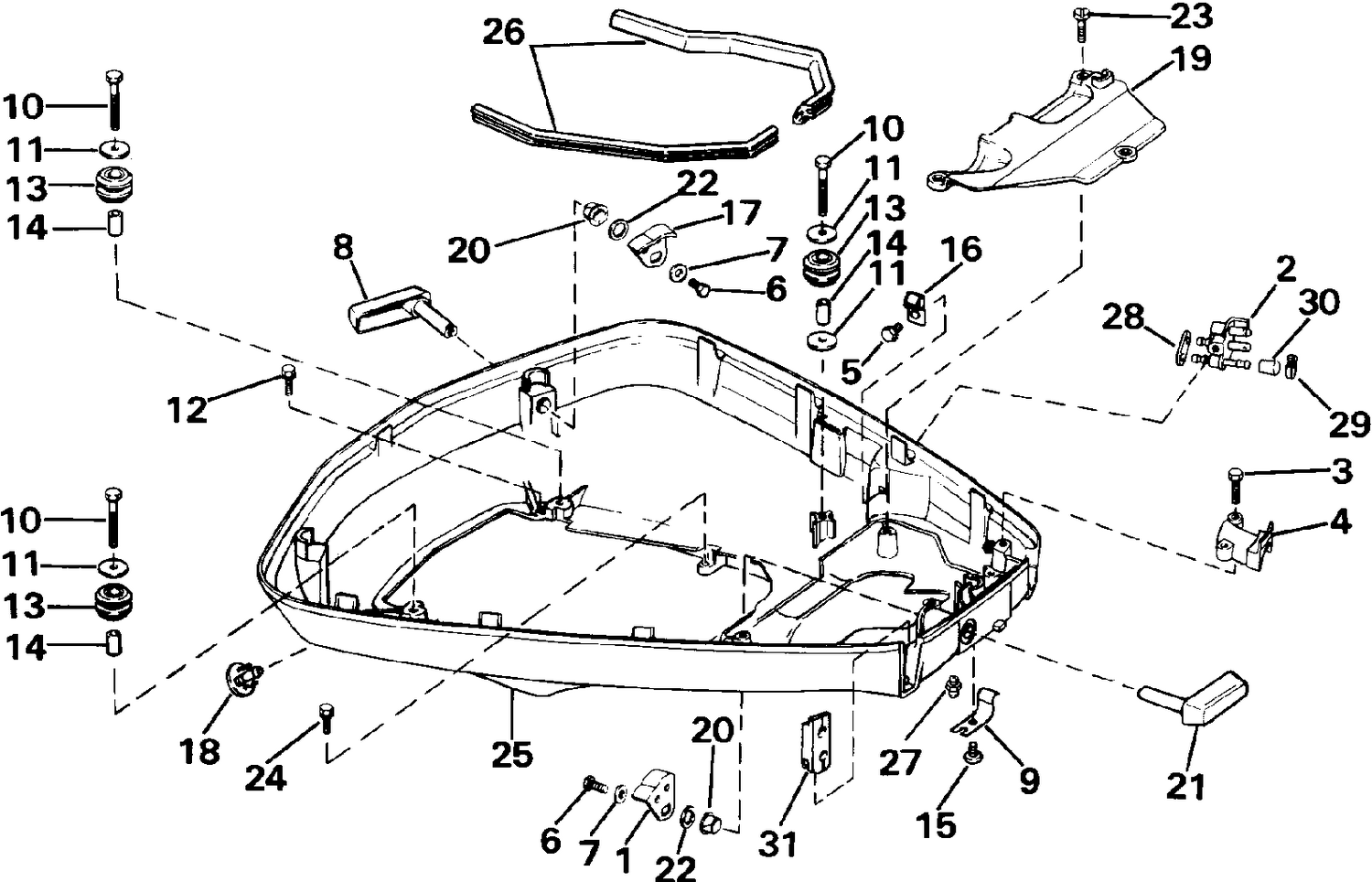

| Ref | Part Number | Description |
|---|
| 1 |
0323170 |
HOOK Front and stbd., rear |
| 4 |
0318849 |
CLAMP, Instrument cable |
| 5 |
0908159 |
SCREW, Bearing clamp |
| 6 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 8 |
0395758 |
LATCH HANDLE ASSY., Rear |
| 9 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0329610. |
| 10 |
0303398 |
VIS, support |
| 12 |
0328695 |
CLAMP, Engine cable |
| 13 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 14 |
0302406 |
SLEEVE |
| 15 |
0310539 |
SCREW, Clamp choke solenoid |
| 17 |
0323169 |
HOOK, Lower rear port |
| 18 |
0321885 |
NIPPLE |
| 19 |
0328358 |
COVER ASSY. Air entrance |
| 21 |
0395757 |
LATCH HANDLE ASSY., Front |
| 23 |
0328695 |
CLAMP, Engine cable |
| 25 |
0434289 |
COVER, Lower This part replaces 0396769. |
| 26 |
0318258 |
SEAL Cover |
| 28 |
0331533 |
JOINT, conn. carburant vers capot inférieur |
| 29 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 31 |
0323428 |
GROMMET |
