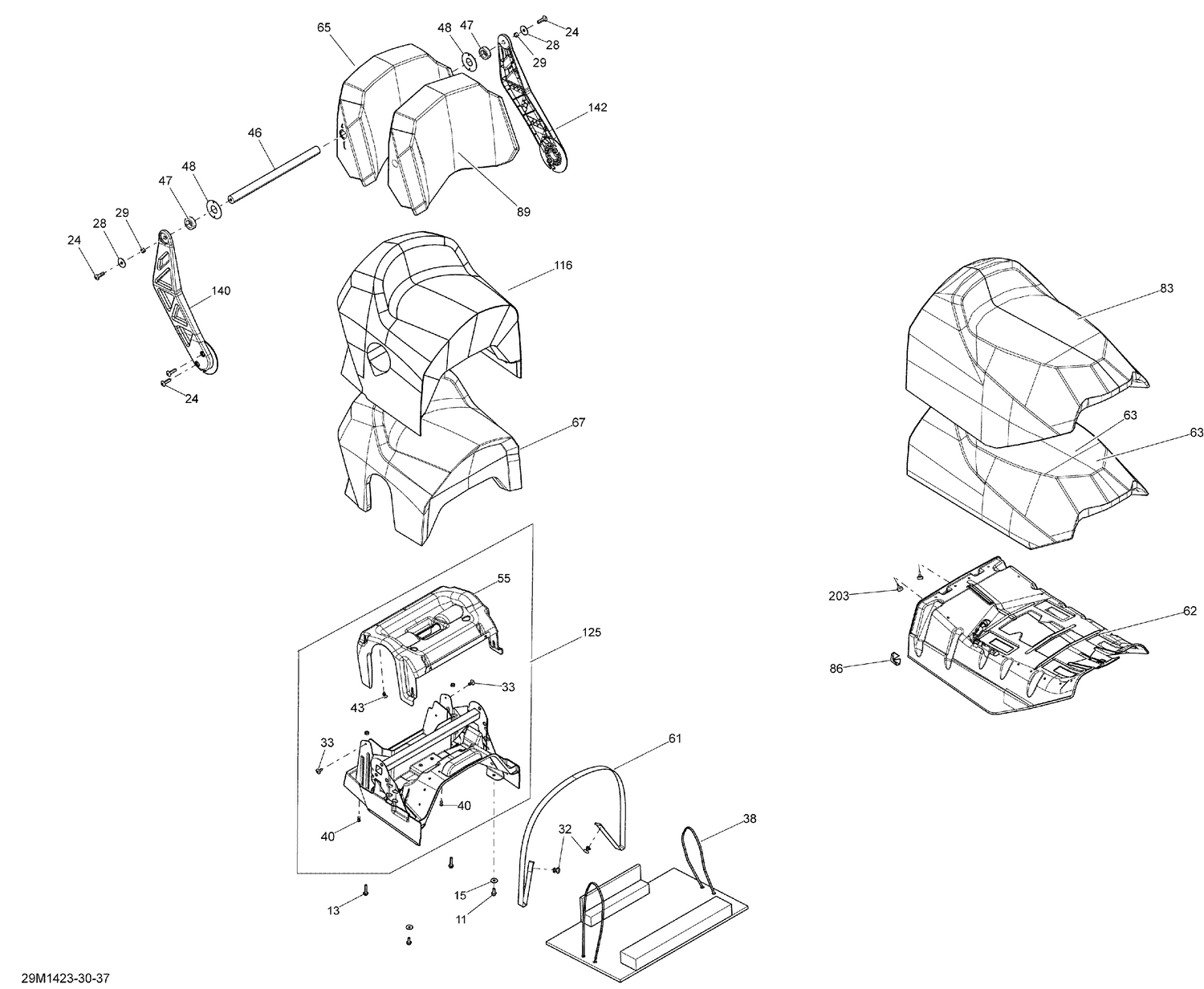

09- Seat
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 13 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 15 | 224061201 | Flat Washer |
| 24 | 250000745 | Hex Torx Truss M8 X30 This part replaces 250000197. |
| 28 | 250200128 | Flat Washer 8 mm |
| 29 | 271000558 | Spacer |
| 32 | 293150067 | Rivet |
| 33 | 390410100 | Pop Rivet 3/16” |
| 38 | 293750008 | Tie Wrap 368 mm |
| 40 | 293150100 | Pop Rivet 3/16" |
| 43 | 414644300 | Black, Dart |
| 46 | 510004377 | Upper Backrest Axle |
| 47 | 510004378 | Rubber Shim |
| 48 | 510004379 | Washer |
| 55 | 510004423 | Foam Support |
| 61 | 510004768 | COURROIE DE SIEGE - Call your local BRP dealership |
| 62 | 510004775 | Front Seat Base |
| 63 | 510004777 | Front Seat Foam |
| 65 | 510004782 | Backrest Foam |
| 67 | 510004791 | Rear Seat Foam |
| 83 | 510005181 | Seat Cover |
| 89 | 510005309 | Backrest Cover |
| 116 | 510005399 | Rear Seat Cover |
| 125 | 510005535 | Seat Base Ass'y |
| 140 | 510005548 | RH ARM, BLACK - Call your local BRP dealership |
| 142 | 510005549 | LH ARM, BLACK - Call your local BRP dealership |
