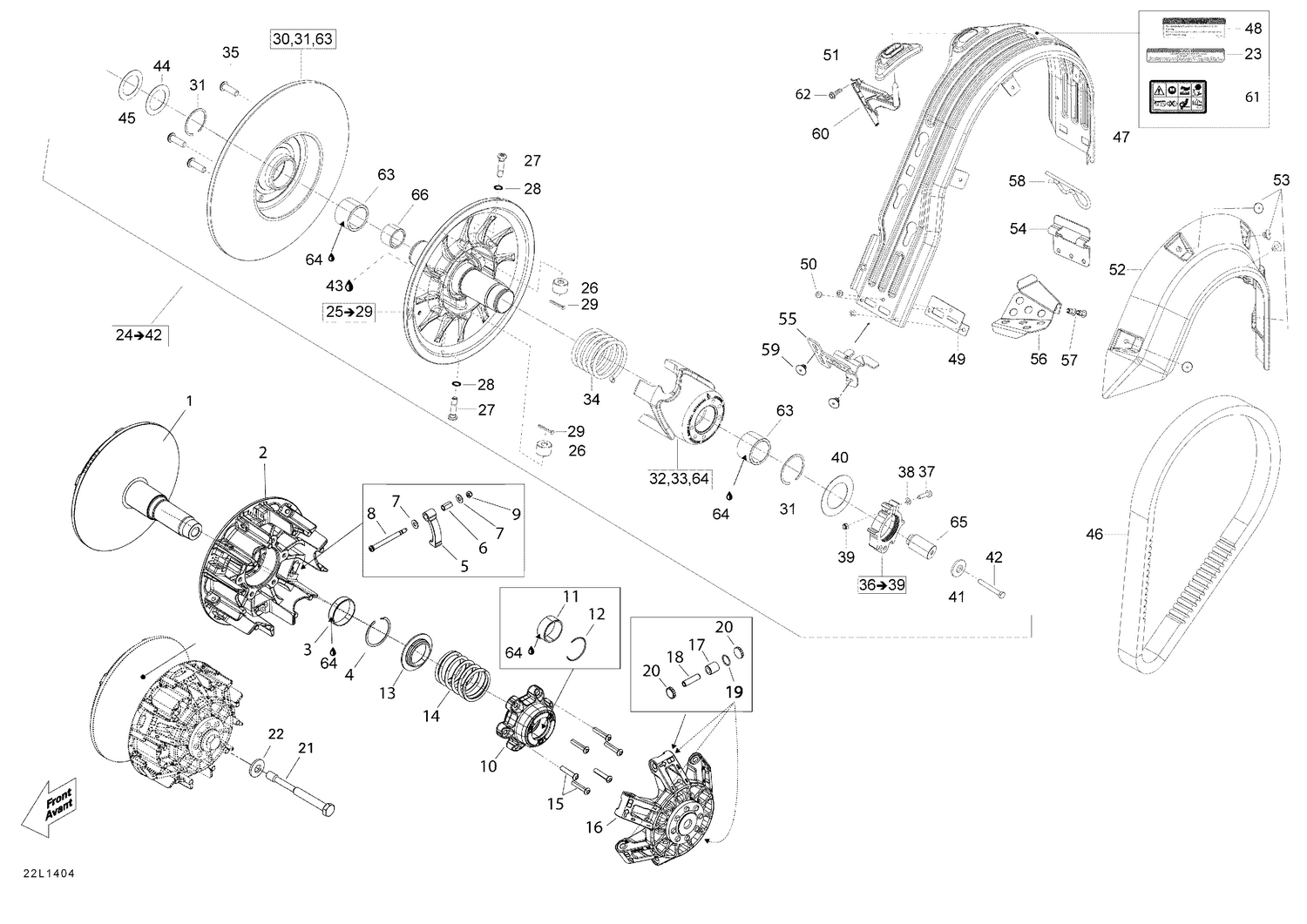

05- Pulley System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417224091 | Fixed Flange Ass'y This part replaces 417223867. |
| 2 | 417224044 | Sliding Flange Ass'y This part replaces 417223763. |
| 3 | 417222758 | Bushing Outer Half |
| 4 | 293370037 | Circlip |
| 7 | 417223660 | Washer Stopper |
| 8 | 417223694 | AXLE-RAMP |
| 9 | 232551414 | Elastic Stop Nut M5 |
| 10 | 417223650 | SPRING COVER |
| 12 | 293370065 | Circlip |
| 13 | 417223752 | SEAT-SPRING |
| 15 | 250000580 | Torx Screw M6 X 30 |
| 16 | 417223865 | GOVERNOR CUP |
| 17 | 417223767 | ROLLER |
| 18 | 417223257 | AXLE ROLLER |
| 19 | 293300185 | O-Ring This part replaces 293300169. |
| 20 | 417223919 | SHOE-SLIDER |
| 21 | 417300432 | Drive Pulley Bolt |
| 22 | 250200144 | Conical Spring Washer M14 |
| 23 | 516005503 | Decal Notice, Drive Pulley Bolt |
| 26 | 417127189 | Roller |
| 27 | 417127294 | Stud |
| 28 | 250200009 | Lock Washer 8mm |
| 29 | 250400061 | Spring Pin M3 x 18 |
| 31 | 293370049 | Spacer (1.91/2.21mm) |
| 33 | 293370049 | Spacer (1.91/2.21mm) |
| 34 | 417127039 | Spring (Black / Black, 700-1350) |
| 35 | 250000283 | Torx Screw M8 x 25, Scotch Grip |
| 37 | 205052544 | Socket Head Screw M10 x 1.5 |
| 38 | 234051410 | Flat Washer M5 |
| 39 | 232551414 | Elastic Stop Nut M5 |
| 40 | 417127155 | Washer |
| 41 | 517302322 | Strength Washer |
| 42 | 207287544 | Hex. Cap Screw M8 x 75 |
| 43 | 619600013 | Loctite 8151 (Antiseize), 400ml Spray |
| 46 | 417300571 | Drive Belt This part replaces 417300391. |
| 47 | 417300382 | Belt Guard |
| 48 | 516004649 | Security Label, Belt Guard |
| 49 | 417300380 | Reinforcement |
| 50 | 390909200 | Avex Rivet |
| 51 | 417300381 | Guide |
| 52 | 417300356 | Side Protector |
| 53 | 293150103 | Pop Rivet 3/16 |
| 54 | 417300413 | Belt Guard Bracket |
| 55 | 417300373 | Bracket |
| 56 | 518327035 | Brake Hose Cover |
| 57 | 293150163 | Rivet Hucklok |
| 58 | 114045200 | Hair Pin |
| 59 | 293150104 | Pop Rivet 3/16 |
| 60 | 417300396 | BELT GUARD BRACKET - Call your local BRP dealership |
| 61 | 516003919 | Warning decal |
| 62 | 241151640 | Screw K50 x 16 |
| 63 | 417127318 | Bushing This part replaces 417127000. |
| 64 | 413703100 | Loctite 609 |
| 65 | 417300452 | Axle |
