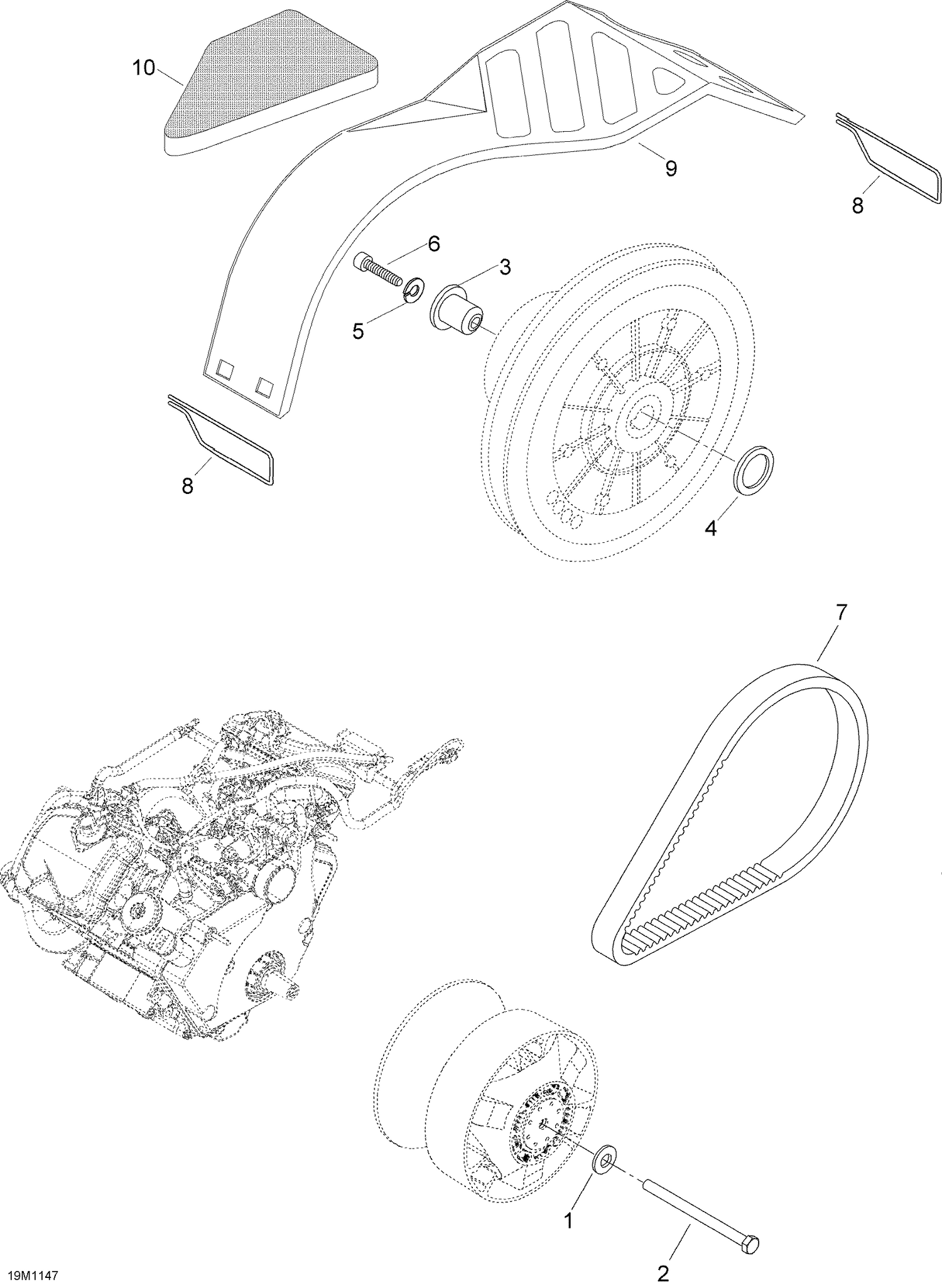

05- Pulley System
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M20110 | Conical Spring Washer |
| 2 | 417300285 | Drive Pulley Bolt |
| 3 | M5443765 | Shaft Extension |
| 4 | M3125351 | Shim |
| 5 | 234181401 | Lock Washer 8 mm |
| 6 | M40290 | SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership |
| 7 | 605348425 | Drive Belt |
| 8 | 5442726 | Pin This part replaces M5442726. |
| 9 | 605149860 | BELT GUARD - Call your local BRP dealership |
