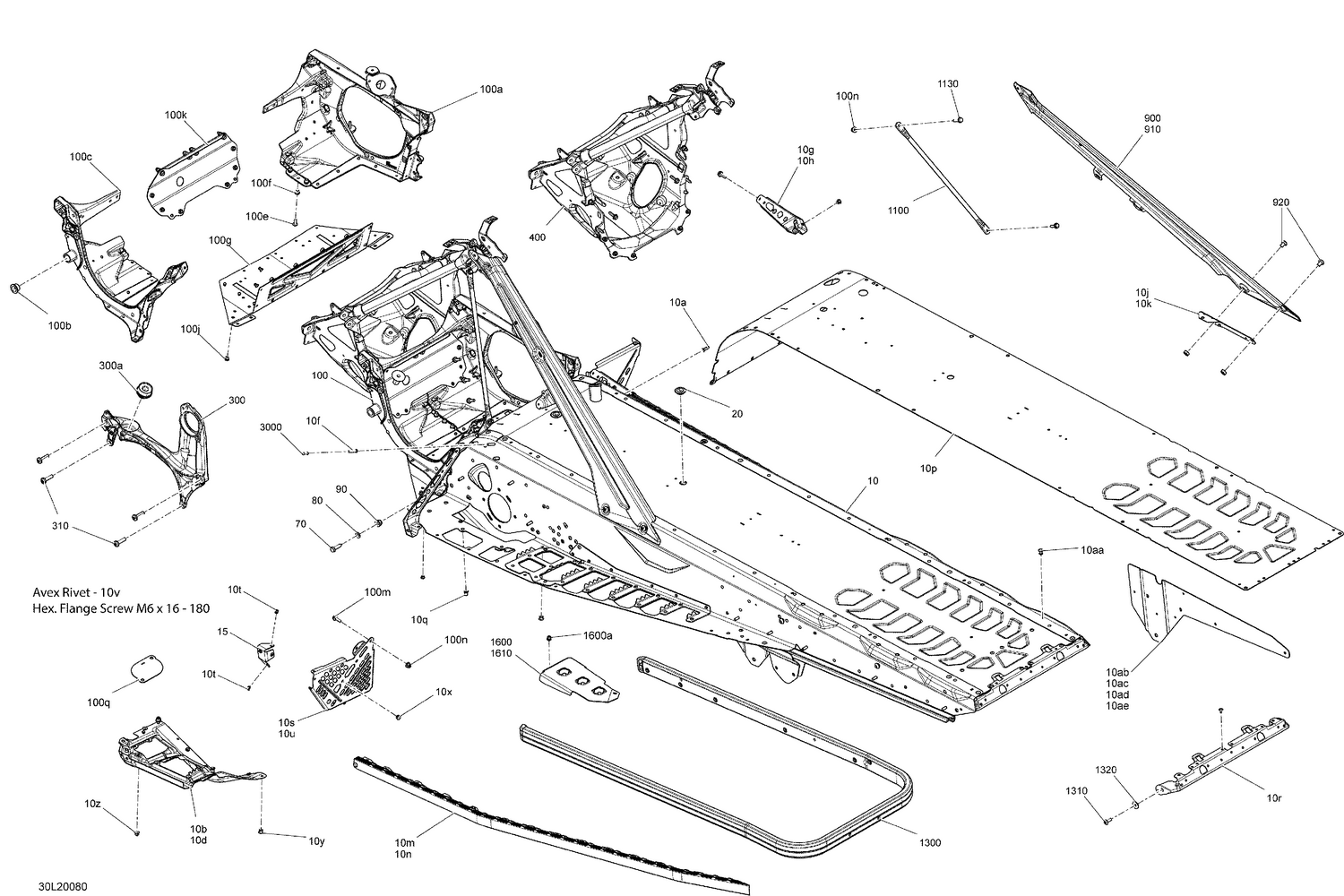

| Ref | Part Number | Description |
|---|
| 10a |
250300027 |
Clinch Stud M6 X 20 |
| 10aa |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 10ab |
518330733 |
Rear Support Arm |
| 10ac |
518330734 |
RH Rear Support Arm |
| 10ad |
518330735 |
LH Rear Support Arm |
| 10ae |
518330736 |
RH Rear Support Arm |
| 10f |
250300031 |
Clinch Stud M6 X 30 |
| 10g |
518331253 |
Stirrup Reinforcement |
| 10h |
518331560 |
Deep Black, LH Chasssis Reinforcement |
| 10j |
518330299 |
LH Member Fixation Plate |
| 10k |
518331745 |
RH Under Chassis Reinforcement This part replaces 518330300. |
| 10m |
518330239 |
RH Roller |
| 10n |
518330240 |
LH Roller |
| 10p |
518334489 |
Radiator Tunnel 146 Ass'y This part replaces 415130287. |
| 10q |
605636003 |
Clinch Nut M6 Hexsert |
| 10r |
518328990 |
Rear Cap |
| 10t |
390909200 |
Avex Rivet |
| 10u |
518330550 |
LH Footrest 400mm |
| 10v |
390909100 |
Avex Rivet |
| 10x |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10y |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10z |
293150174 |
Hemlock Rivet, 6.5 mm |
| 15 |
518330998 |
LH Front Chassis Reinforcement |
| 20 |
293730052 |
Black, Plug |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100b |
505073317 |
Leg Cushion |
| 100e |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100f |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100g |
518329342 |
Bottom Plate |
| 100j |
293450268 |
Insert M5 X 0.8 |
| 100k |
518330100 |
Front Member |
| 100m |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100n |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100q |
518329454 |
Oil Plate |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 400 |
518334551 |
Chassis Suspension Module Ass'y This part replaces 518330570. |
| 910 |
518331039 |
Viper Red, RH Member Ass'y |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1130 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1300 |
860201250 |
Black, Hitch Bumper 154 |
| 1310 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1320 |
224061201 |
Flat Washer |
| 1600a |
605636003 |
Clinch Nut M6 Hexsert |
