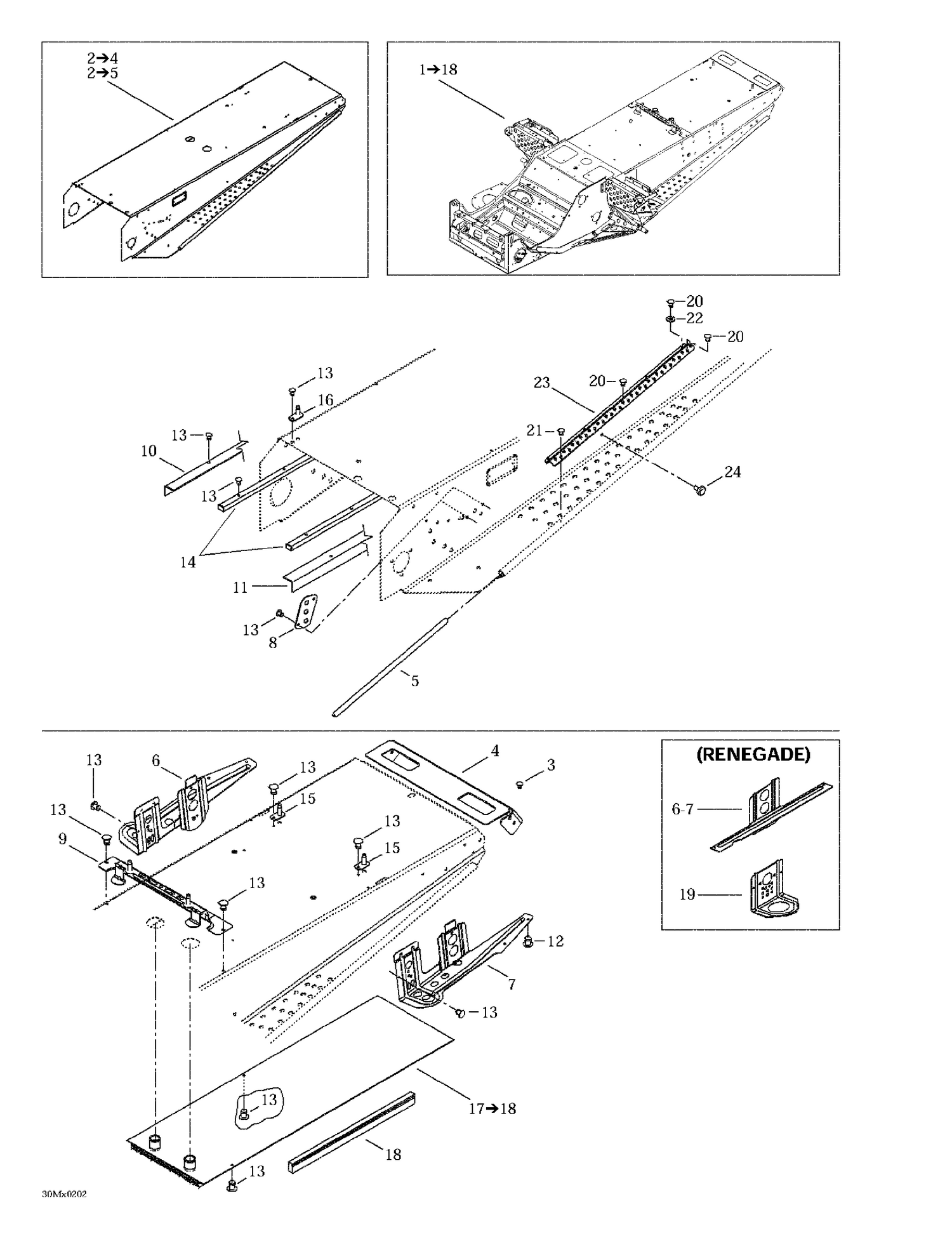

09- Frame - Rear
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 390402200 | Pop Rivet 3/16" |
| 4 | 518321303 | REAR CAP - Call your local BRP dealership |
| 5 | 518304746 | FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 6 | 518322742 | RH Slide Bracket (GS, Sport) |
| 7 | 518322745 | LH Slide Bracket (GS, Sport) |
| 8 | 518201321 | REINFORCEMENT PLATE - Call your local BRP dealership |
| 9 | 518321510 | FUEL TANK BRACKET - Call your local BRP dealership |
| 10 | 518321561 | RH Frame Reinforcement |
| 11 | 518321562 | LH Frame Reinforcement |
| 12 | 390909200 | Avex Rivet |
| 13 | 390402200 | Pop Rivet 3/16" |
| 15 | 518319730 | Guide |
| 16 | 518321604 | Guide |
| 18 | 518321655 | Radiator Protector |
