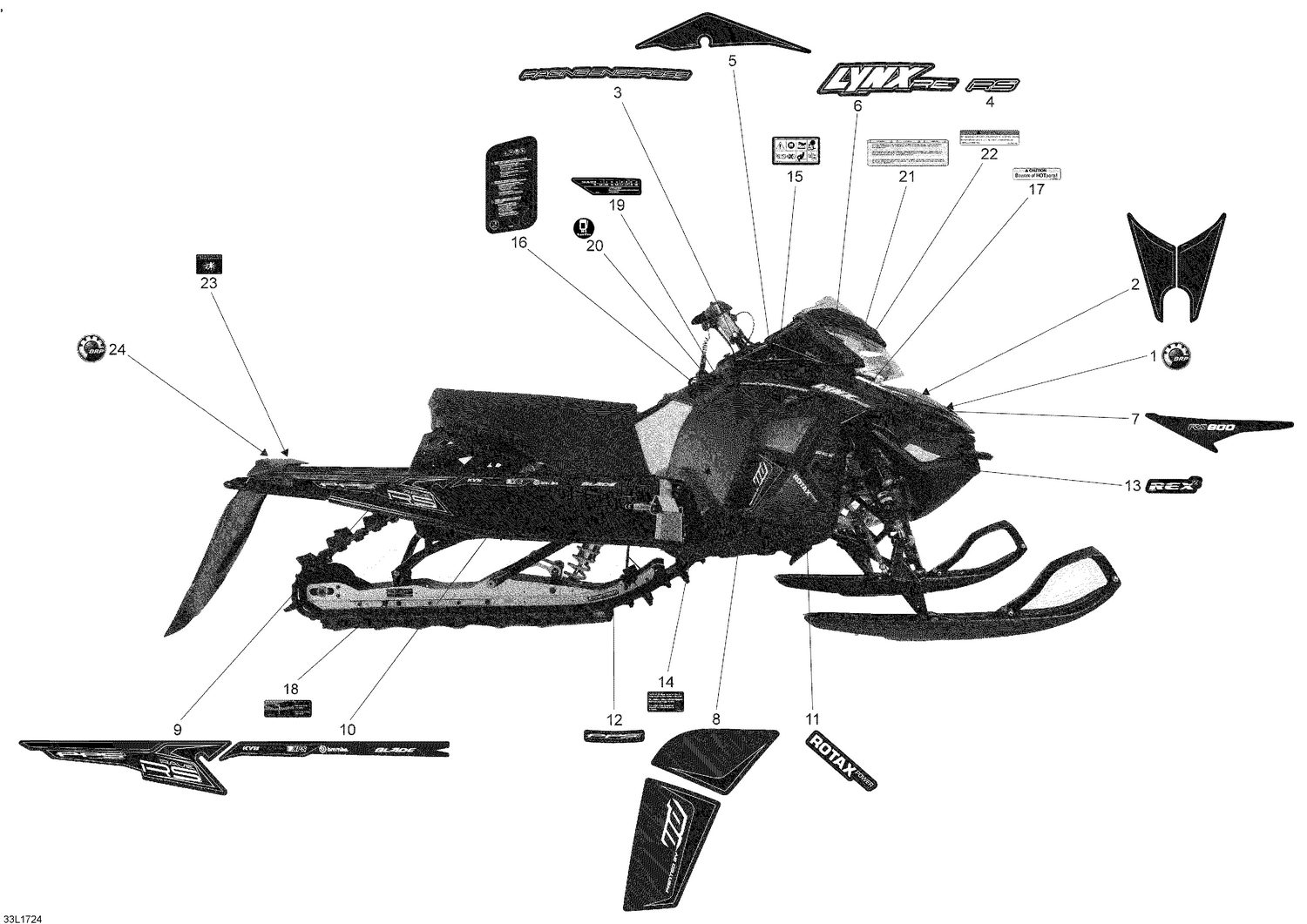

09- Decals
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516006697 | Hood Decal |
| 3 | 516006327 | Upper Side Panel Decal |
| 4 | 516006328 | Upper Side Panel Decal |
| 5 | 516006695 | LH Upper Side Panel Decal |
| 5 | 516006696 | RH Upper Side Panel Decal |
| 6 | 516006330 | Upper Side Panel Decal |
| 7 | 516005911 | LH Hood Decal |
| 7 | 516005912 | RH Hood Decal |
| 8 | 516006700 | LH Side Panel Decal |
| 8 | 516006701 | RH Side Panel Decal |
| 9 | 516007039 | LH Tunnel Decal |
| 9 | 516007040 | RH Tunnel Decal |
| 10 | 516006988 | LH Front Tunnel Decal |
| 10 | 516006989 | RH Front Tunnel Decal |
| 11 | 516006331 | Rotax Power Decal |
| 12 | 516006805 | PPS Decal |
| 13 | 516007534 | REX2 Platform Decal |
| 14 | 5447012 | Checking Oil Decal |
| 15 | 516003919 | Warning Decal |
| 16 | 516004607 | Instruction/Warning Decal (FI/SWE/EN) |
| 17 | 516006903 | Hot Parts Decal |
| 18 | 516007587 | Track Tension Decal |
| 19 | 516004555 | Fuel Ratio 3% Instruction Decal |
| 21 | 5447014 | Warning Decal (FI/SWE/EN) |
| 22 | 516006900 | Driven Pulley Shield Warning Decal |
| 23 | 516007584 | Rotating Track Warning Decal |
