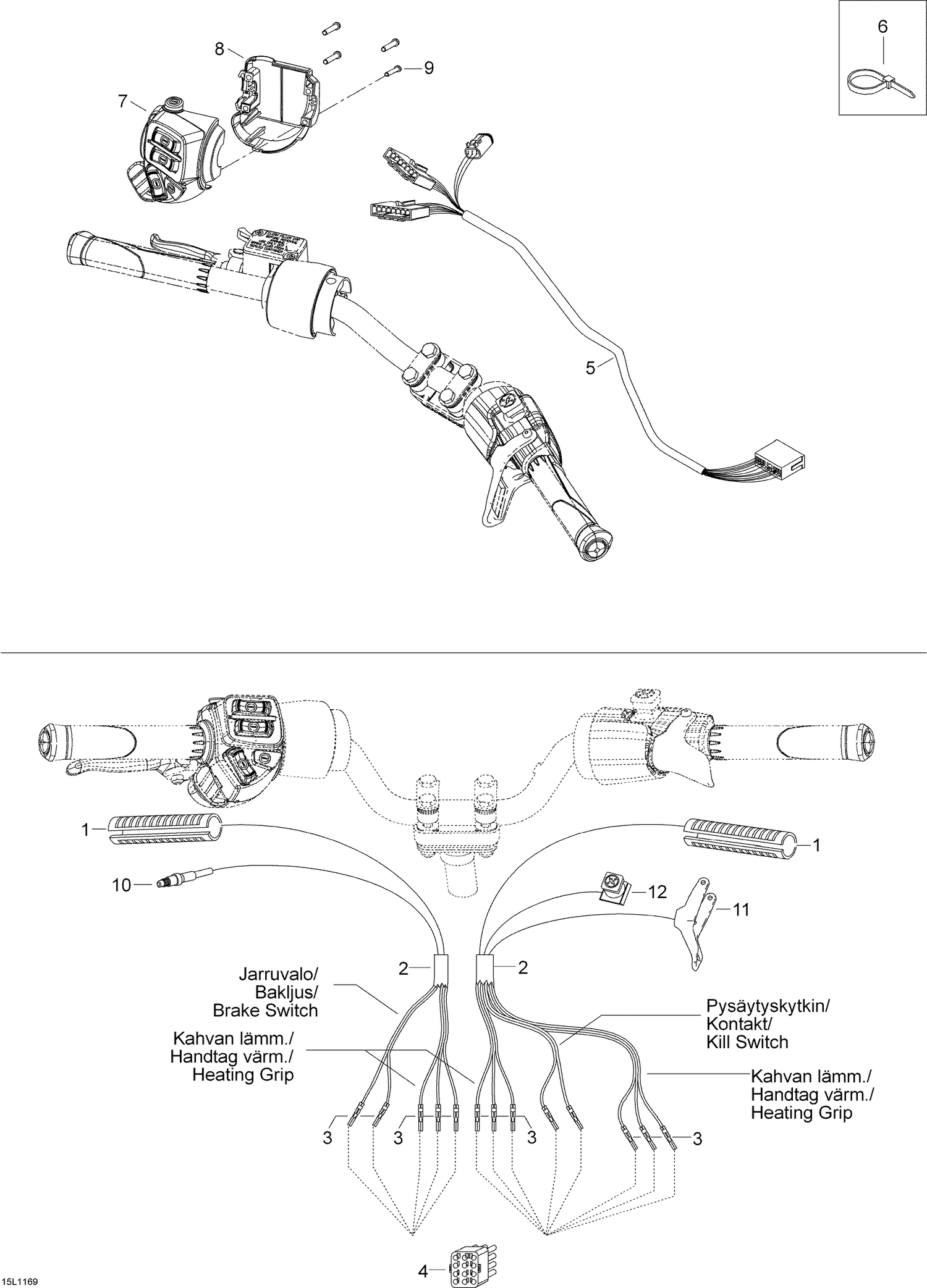

10- Steering harness
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515175664 | Heating Grip |
| 2 | 39023 | Plastic Tubing d=6, musta - Call your local BRP dealership |
| 3 | 605642628 | CONNECTOR - Call your local BRP dealership |
| 4 | 42617 | Male connector housing (15-circuit) |
| 5 | 605354616 | STEERING HARNESS ASS'Y - Call your local BRP dealership |
| 6 | 414115200 | Tie-Rap 180 mm |
| 7 | 605356204 | SWITCH HOUSING LH - Call your local BRP dealership |
| 8 | 515175926 | Housing Switch Plate |
| 9 | 40903 | Plastofast-screw 3.5 x 25 |
| 10 | 507032366 | Microswitch |
| 11 | 512059481 | Throttle Handle |
