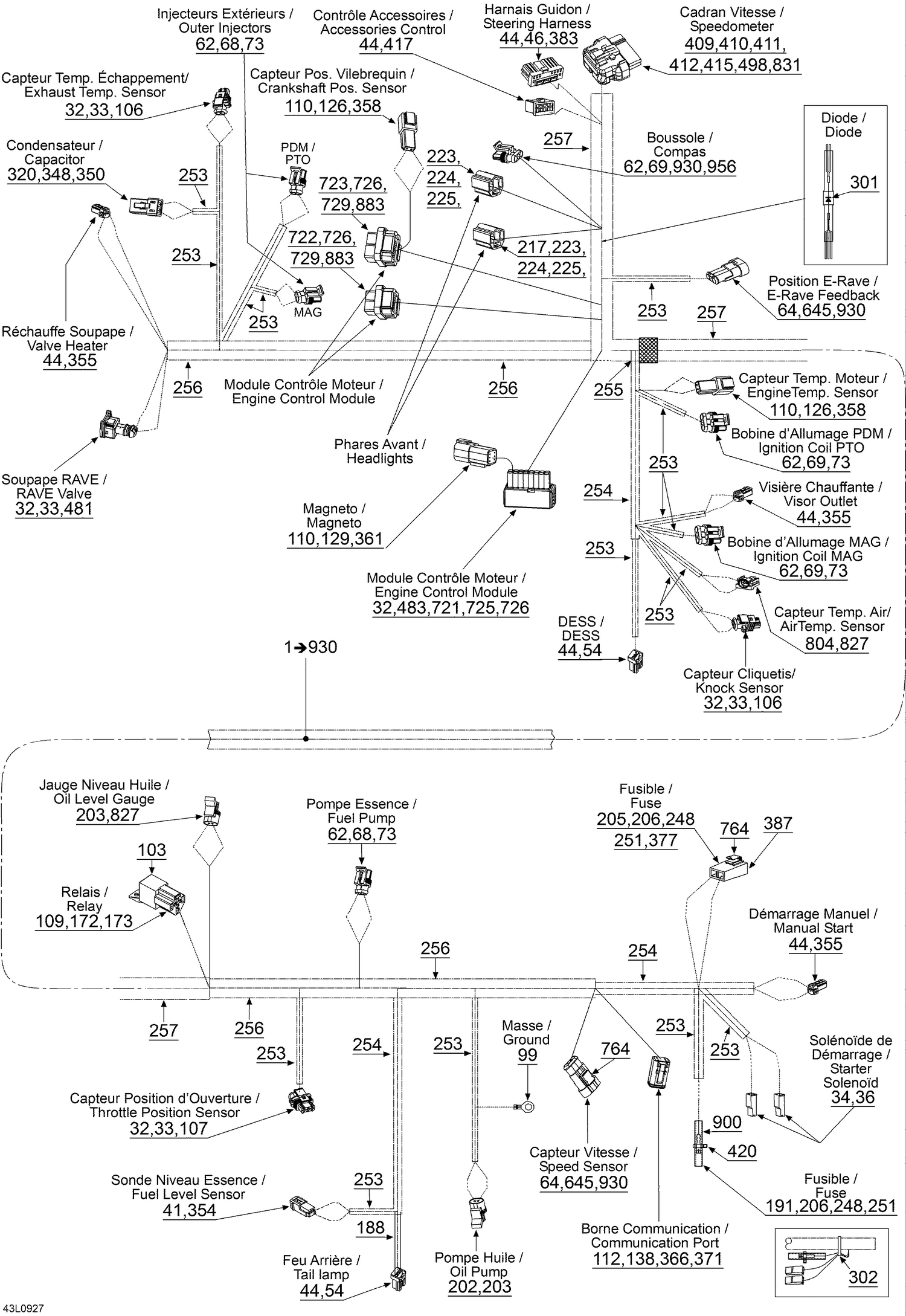

| Ref | Part Number | Description |
|---|
| 32 |
278000998 |
Female Terminal |
| 33 |
278000999 |
Wire Seal |
| 34 |
409010100 |
Female Terminal |
| 36 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 41 |
515175232 |
Male Terminal |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 62 |
278001014 |
Female Terminal |
| 64 |
710000568 |
Male terminal housing |
| 68 |
409209500 |
Female Housing, 2 Circuits |
| 69 |
409209600 |
Female Housing, 3 Circuits |
| 73 |
278001013 |
Wire Seal |
| 99 |
278000992 |
Open Barrel |
| 103 |
710010053 |
RELAY This part replaces 410113200. |
| 106 |
278001005 |
Male Housing, 2 Circuits |
| 107 |
278000997 |
Male Housing, 3 Circuits |
| 109 |
409209900 |
Female Housing, 5 Circuits |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 126 |
409207500 |
Male Lock, 2 Circuits |
| 129 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 138 |
293000052 |
Sealing Cap |
| 172 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 173 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 188 |
409902000 |
Tubing 12 mm |
| 191 |
410917200 |
Fuse, 30 Amperes |
| 202 |
278001114 |
Female Terminal |
| 203 |
278001113 |
Male Connector, 2 Circuits |
| 205 |
409011600 |
Female Terminal |
| 206 |
409004200 |
Female Terminal |
| 217 |
409011500 |
FEMALE TERMINAL - Call your local BRP dealership |
| 223 |
515175320 |
FEMALE TERMINAL - Call your local BRP dealership |
| 224 |
515175321 |
FEMALE TERMINAL - Call your local BRP dealership |
| 225 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 248 |
409004000 |
Fuse Holder |
| 251 |
409014200 |
CLIP - Call your local BRP dealership |
| 253 |
515175442 |
Tubing 6 mm |
| 254 |
409901700 |
Tubing 9 mm |
| 255 |
409901800 |
Tubing 13 mm |
| 256 |
415080000 |
Tubing 16 mm |
| 257 |
409901600 |
Tubing, 19 mm |
| 301 |
409012700 |
Diode |
| 302 |
293750001 |
Tie-Rap 94 mm |
| 320 |
515175567 |
Female Terminal |
| 348 |
278001673 |
Female Terminal Housing, 2 Circuits |
| 350 |
278001671 |
Female Lock, 2 Circuits |
| 354 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 358 |
515175665 |
Male Terminal Housing, 2 Circuits |
| 361 |
515175668 |
Male Terminal Housing, 6 Circuits |
| 366 |
515175673 |
Male Housing, 6 Circuits |
| 371 |
515175678 |
Male Wedge, 6 Circuits |
| 377 |
278000344 |
Fuse, 5 Amperes |
| 383 |
515175719 |
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 387 |
293550004 |
Dielectric Grease, 150 G |
| 409 |
515175812 |
Plug |
| 410 |
515175801 |
Female Housing, 24 Circuits |
| 411 |
515175802 |
Retainer Block |
| 412 |
515175803 |
Wire Seal |
| 415 |
515175806 |
Female Terminal |
| 417 |
515175819 |
Female Terminal Housing, 8 Circuits |
| 420 |
414115200 |
Tie-Rap 180 mm |
| 481 |
415128500 |
Female Terminal Housing, 2 Circuits |
| 483 |
415128499 |
FEMALE TERMINAL - Call your local BRP dealership |
| 498 |
710000399 |
Female Housing |
| 645 |
515176164 |
Male Terminal |
| 721 |
515176340 |
Female Terminal Housing, 16 Circuits |
| 722 |
515176341 |
Female Terminal Housing, 26 Circuits |
| 723 |
515176342 |
Female Terminal Housing, 34 Circuits |
| 725 |
415128501 |
Seal This part replaces 515176344. |
| 726 |
515176345 |
Plug |
| 729 |
515176348 |
Female Terminal |
| 764 |
710000992 |
Clip |
| 804 |
515176523 |
FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 827 |
710001119 |
Female Terminal |
| 831 |
710001131 |
Female Terminal |
| 883 |
515176541 |
Female Terminal |
| 900 |
415079200 |
Hose |
| 930 |
515176621 |
Wire Seal |
