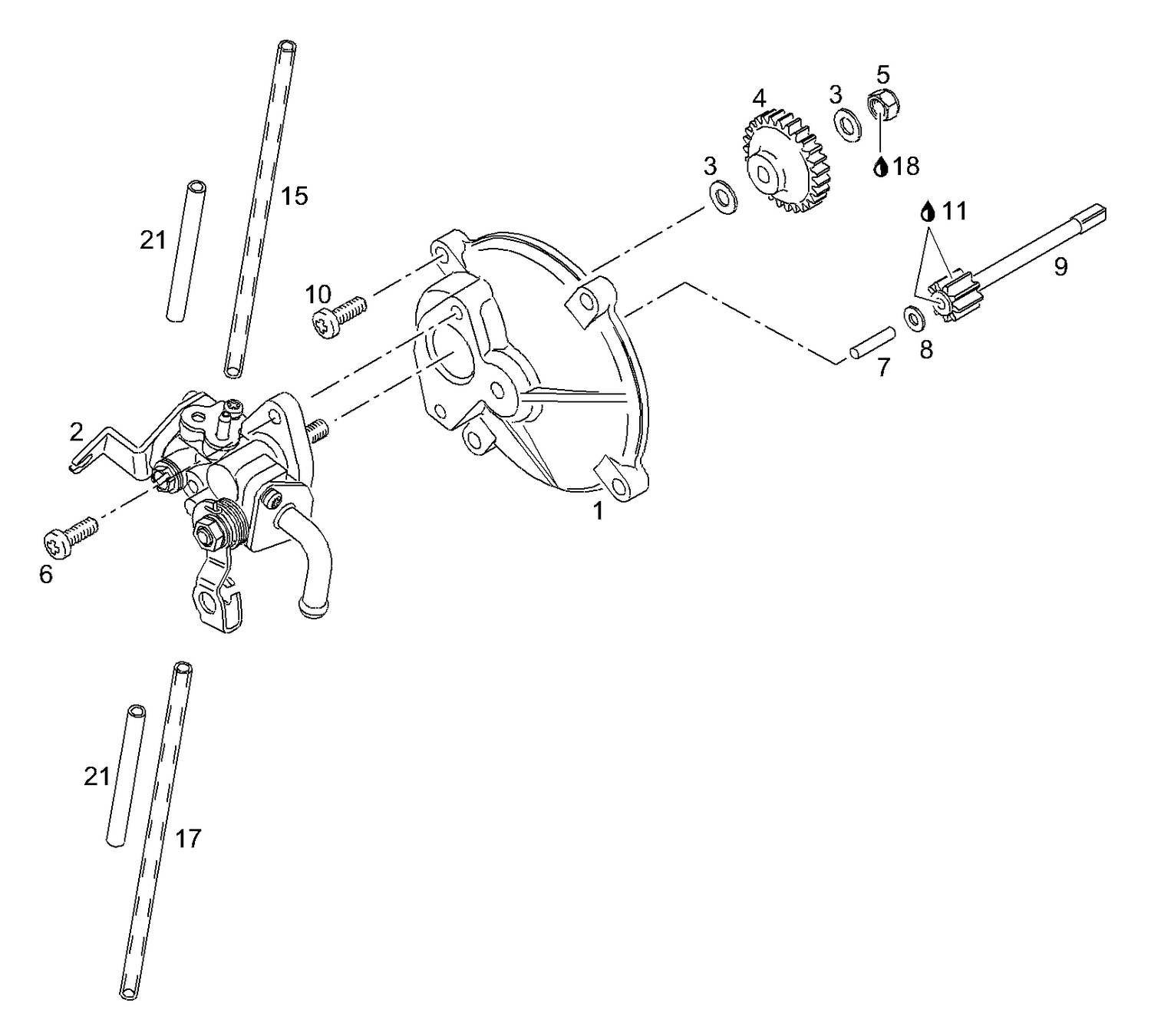

01- Oil Pump
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420910160 | PUMP MOUNTING FLANGE - Call your local BRP dealership |
| 2 | 420889070 | OIL PUMP ASSY - Call your local BRP dealership |
| 3 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 4 | 420935930 | Gear, Z-27 |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 420841971 | Screw |
| 7 | 420832260 | NEEDLE PIN - Call your local BRP dealership |
| 8 | 420244072 | Washer-Flat 4 This part replaces 420244073. |
| 9 | 420935970 | Gear Z-9 |
| 10 | 420841976 | SCREW - Call your local BRP dealership |
| 11 | 413707000 | Molykote 111 |
| 15 | 414413800 | Oil line |
| 17 | 414413800 | Oil line |
| 18 | 293800060 | Loctite 243, 10ml |
