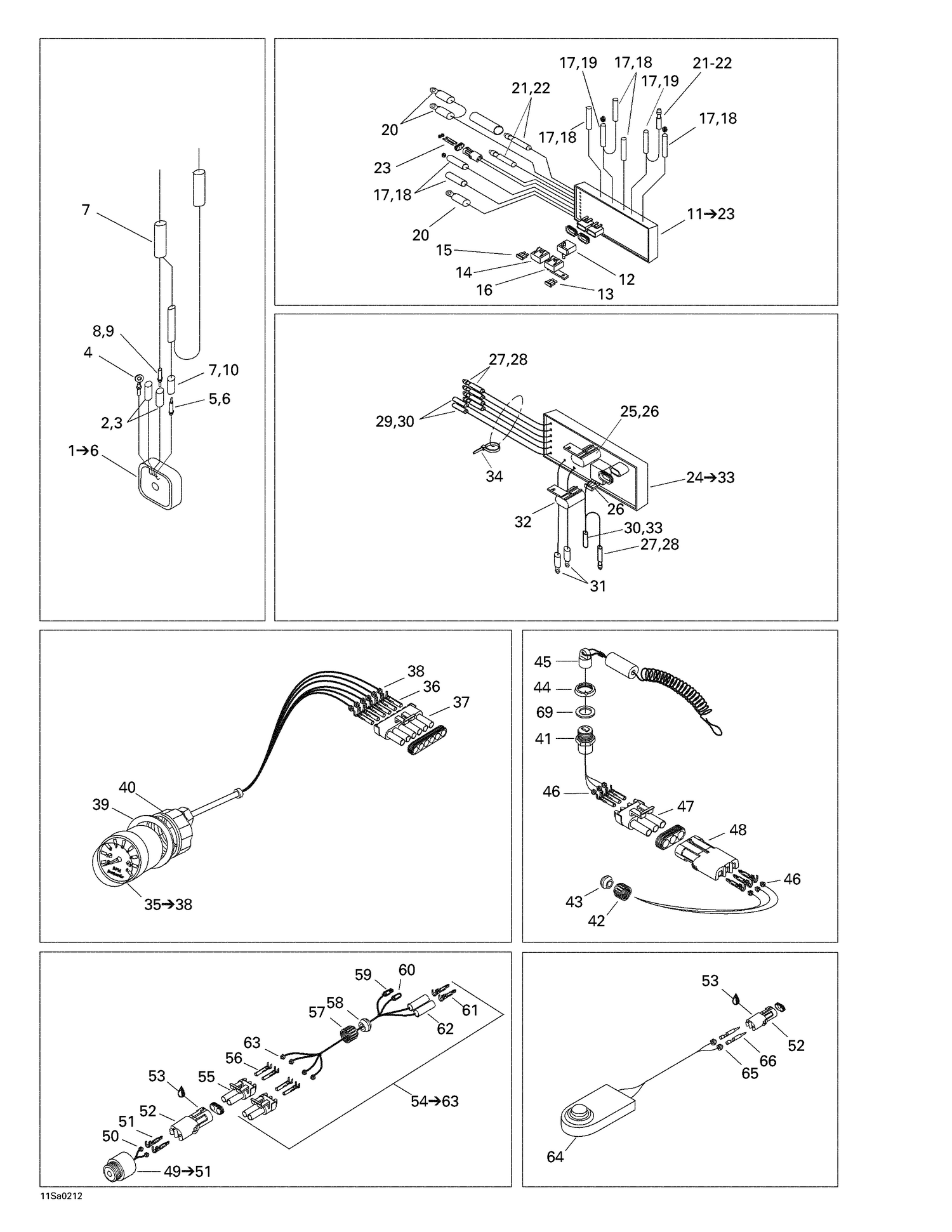

| Ref | Part Number | Description |
|---|
| 2 |
278001009 |
Female Terminal |
| 3 |
278001007 |
Insulated Sheath |
| 4 |
278000992 |
Open Barrel |
| 5 |
278000230 |
Male Terminal |
| 6 |
278001008 |
Insulated Sheath |
| 7 |
278001009 |
Female Terminal |
| 8 |
278000230 |
Male Terminal |
| 9 |
278000231 |
Insulation Sheath |
| 10 |
278964072 |
Insulation Sleeve |
| 12 |
278000379 |
Fuse Holder |
| 13 |
278000344 |
Fuse, 5 Amperes |
| 14 |
278000378 |
FUSE CAP - Call your local BRP dealership |
| 15 |
278000343 |
Fuse, 15 Amperes |
| 16 |
278001326 |
Fuse Holder Cap This part replaces 278000345. |
| 17 |
278001009 |
Female Terminal |
| 18 |
278001007 |
Insulated Sheath |
| 19 |
278001007 |
Insulated Sheath This part replaces 290964072. |
| 20 |
278000992 |
Open Barrel |
| 21 |
278000230 |
Male Terminal |
| 22 |
278000231 |
Insulation Sheath |
| 23 |
278001114 |
Female Terminal |
| 25 |
278000378 |
FUSE CAP - Call your local BRP dealership |
| 26 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 27 |
278001008 |
Insulated Sheath |
| 28 |
278000230 |
Male Terminal |
| 29 |
278001007 |
Insulated Sheath |
| 30 |
278001009 |
Female Terminal |
| 31 |
278000992 |
Open Barrel |
| 32 |
278001326 |
Fuse Holder Cap This part replaces 278000345. |
| 33 |
278001007 |
Insulated Sheath This part replaces 290964072. |
| 34 |
293750002 |
Tie Wrap 142 mm |
| 36 |
278000223 |
Female Terminal |
| 37 |
278000221 |
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 38 |
278000218 |
Wire Seal |
| 39 |
293000259 |
Gasket |
| 40 |
278000085 |
Gauge Nut |
| 42 |
278000100 |
Electric Wire Cap |
| 43 |
293720025 |
GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership |
| 44 |
278000099 |
Safety Switch Nut |
| 45 |
278001431 |
Safety Lanyard This part replaces 204470464. |
| 46 |
278000218 |
Wire Seal |
| 47 |
278000273 |
Male Housing, 3 Circuits |
| 48 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 50 |
278000218 |
Wire Seal |
| 51 |
278000222 |
Male Terminal |
| 52 |
278000217 |
Female Housing, 2 Circuits |
| 53 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 55 |
278000220 |
Male Connector, 2 Circuits |
| 56 |
278000223 |
Female Terminal |
| 57 |
278000100 |
Electric Wire Cap |
| 58 |
570026800 |
Grommet, 4 Circuit, Red |
| 59 |
278000300 |
Ring Terminal |
| 60 |
278001007 |
Insulated Sheath |
| 61 |
278000230 |
Male Terminal |
| 62 |
278000231 |
Insulation Sheath |
| 63 |
278000218 |
Wire Seal |
| 65 |
278000218 |
Wire Seal |
| 66 |
278000222 |
Male Terminal |
| 67 |
278000606 |
Harness-Accessories (Not Shown) |
